  • Sentech STC-MBCM200U3V USB3 Vision CMOSIS Camera Image

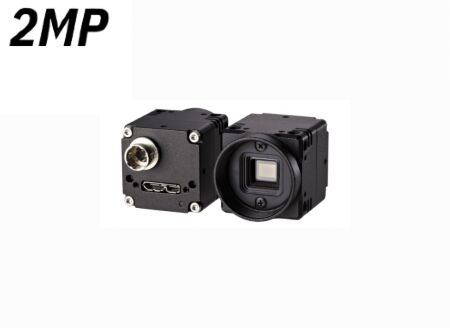

Sentech STC-MBCM200U3V-NIR (2048x1088) USB3 Vision CMOSIS Camera

Quick Overview

2048x1088 Effective Pixels, 2/3" 2M CMOS, 150fps.
Overview

The SenTech STC-MBCM200U3V-NIR monochrome camera with an CMOSIS sensor supports the USB 3 Vision standard proposed by the Automated Imaging Association. Vision control software/libraries that support USB3 Vision can deploy their own USB3 Vision-compliant driver to control the camera. Otherwise, Sentech also provides its own driver and SDK for users to build their own application.Utilizing CMOS Global Shutter, the STC-MBCM200U3V-NIR is capable of capturing moving objects without any motion blur.

Features:

  • 2048(H) x 1088(V) 150fps
  • 5.5μm x 5.5μm 2/3”

  • Applications:
  • Security
  • Surveillance
  • Industrial
  • Inspection
  • Traffic Cameras
  • In Car Videos
  • Specifications
    Image Sensor Type 2/3” 2M CMOS (CMOSIS CMV2000)
    Shutter Type Global
    Effective Pixels 2048 (H) x 1088 (V)
    Pixel Cell Size 5.5 (H) x 5.5 (V) µm
    Scan Method Progressive Scan
    Scan Mode Full Scan / AOI
    Frame Rate 150 fps
    Video Format 8/10/12 bit Raw Data, RGB 8 bit (Color) 8/10/12 bit Raw Data (Mono, IR)
    S/N Ratio TBD
    Minimum Scene TBD
    Illumination ALC TBD
    Electronic Shutter TBD
    AOI Horizontal : 32 ~ 2048 / Vertical : 32 ~ 1088
    Binning Included
    Skipping Included
    Mirror Image Horizontal Flip / Vertical Flip / Horizontal & Vertical Flip
    White Balance TBD
    Operating Modes Free-Run / Edge Preset Trigger / Trigger Pulse Width
    Interface USB3.0 Super Speed (USB3.0 Micro B)
    IO (Input/Output) 3GPIO
    Power Consumption TBD
    Compliance RoHS Compliant
