Omron STC-MB152USB SXGA Monochrome Camera

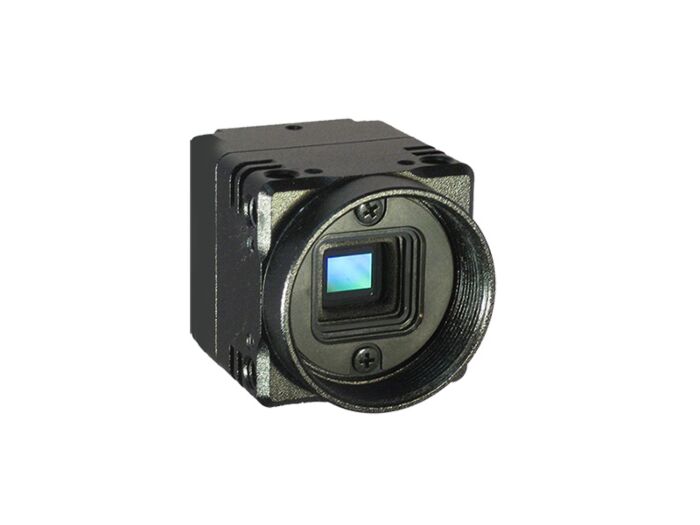

The STC-MB152USB is an ultra-compact, progressive scan, SXGA, USB camera with a 1/2” monochrome CCD.
SKU
STC-MB152USB

It features 19fps, hardware and software triggering image capture, digital zoom and a feature-rich user based menu setup and control.

1/2" CCD Image Sensor, SXGA (1.3 Megapixel)
Ultra-Compact Size
Hardware & Software Trigger

Name

Specifications

Model No
STC-MB152USB
Image Sensor
1/2” Interline SXGA monochrome progressive CCD: ICX205AL (Sony)
Total Picture Element
1434 (H) x 1050 (V)
Effective Picture Element
1392 (H) x 1040 (V)
Chip Size
7.60 (H) x 6.20 (V) mm
Cell Size
4.65 (H) x 4.65 (V) µm
Scanning System
Progressive
Resolution
1360 (H) x 1024 (V) (Full scanning) 1360 (H) x 476 (V) (1/2 partial scanning) 1360 (H) x 184 (V) (1/4 partial scanning)
Scanning Methods
Full scanning, 1/1 partial scanning, 1/2 partial scanning, 1/4 partial scanning, Variable partial scanning, Binning scanning, Binning 1/1 partial scanning, Binning 1/2 partial scanning, Binning 1/4 partial scanning, Binning variable partial scanning
Maximum Frame Rate
-
- Full Scanning
19.26 fps (Normal) / 9.63 fps (1/2 clock) / 4.815 fps (1/4 clock)
- 1/2 Partial Scanning
38.52 fps (Normal) / 19.26 fps (1/2 clock) / 9.63 fps (1/4 clock)
- 1/4 Partial Scanning
77.04 fps (Normal) / 38.52 fps (1/2 clock) / 19.26 fps (1/4 clock)
Pixel Frequency
36.818 MHz (Normal) / 18.409 MHz (1/2 clock) / 9.20453 MHz (1/4 clock)
Video Output
8bit / 10bit / 12bit
Minimum Scene Illumination
0.47 Lux at F1.2
Sync System
Internal
Electronic Shutter
Auto / Manual (software selectable)
- Normal
1/36,818,18 to 1/19.26 seconds
- 1/2 Clock
1/18,409,091 to 1/9.63 seconds
- 1/4 Clock
1/9,204,545 to 1/4.81 seconds
Gain
Auto / Manual (software selectable)
Gamma
Manual (software selectable)
White Balance
-
Trigger Mode
Free-run / Edge preset trigger / Pulse width trigger / Start & stop trigger (software selectable)
Input / Output
USB 2.0 High Speed
Power
-
- Input Voltage
+5 Vdc through USB connector (+4.4 to +5.25V)
- Consumption
< 420 mA
Dimensions
28 (W) x 28 (H) x 42 (D) mm (excluding connector)
Lens Mount
C mount
Weight
Approximately 45g
Interface Connector
USB: mini-B USB connector IO signal: 6pin connector (HR10A-7R-6PB or equivalent)
Temperature
-
- Operational
0 ~ 40 deg. C
- Storage
-30 ~ 65 deg. C
Vibration
20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each
Shock
Acceleration 70G, half amplitude 6 ms, 3 directions 3 times each
Standard Compliancy
EMS: En61000-6-2, EMI: EN61000-6-3 (Class B)
RoHS
RoHS Compliant
