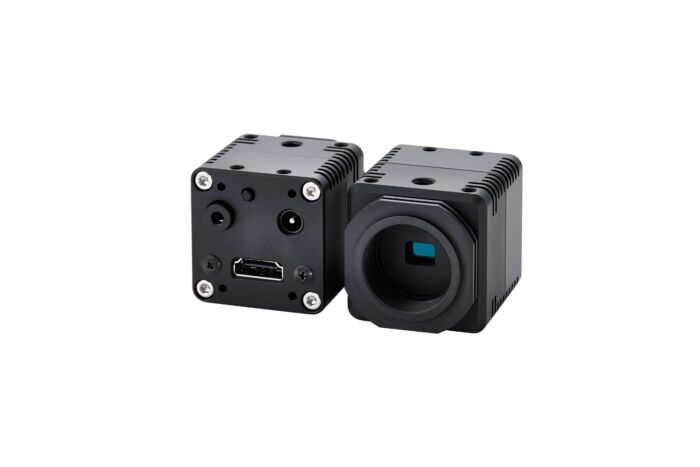

Sentech STC-HD93DV-B | HD Board Level Camera Image #1

Omron STC-HD93DV-B (STCHD93DVB) 1/3" HD Board Level Camera

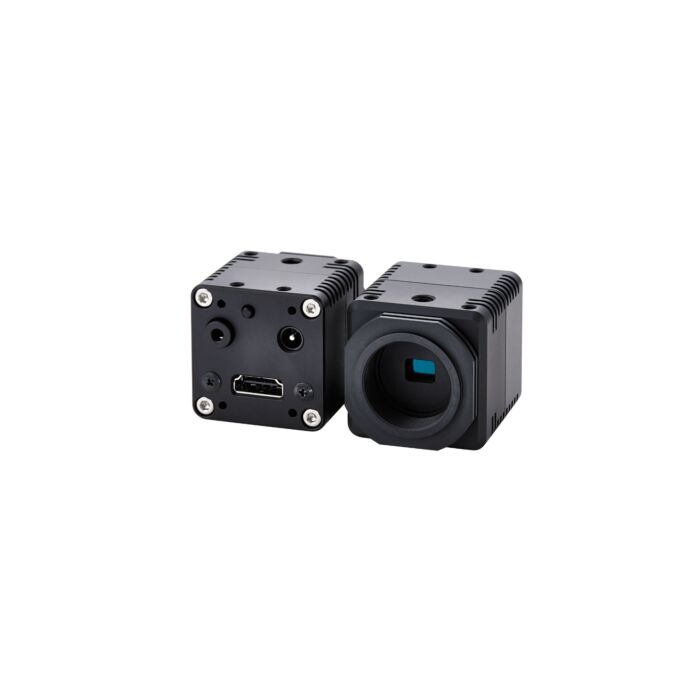

Omron STC-HD93DV (STCHD93DV) 1/3" HD Camera

1280 pixels x 720p, 1/3" CCD, 60 fps, HD-DVI, Cased High Definition Block Camera.

Available in Color Video Output DVI Model- DVI 1.0 conformity RGB, 1280 (H) x 720 (V),59.94Hz / 60Hz / 50Hz / 29.97Hz / 30Hz / 25Hz SDI Model - HD-SDI (SMPTE292M Compliant) YPbPr, 1280 (H) x 720 (V), 60 Hz / 59.94 Hz / 50 Hz Min Illumination: 4 Lux at F1.2 at 50 % IRE, AGC ON and 1/60 seconds shutter speed with IR cut filter (CMOS Sensor: Sony ICX692AQA)

Models Include:

STC-HD93DV / STC-HD93DV-B (Board Level) / STC-HD93DV-CS (CS-Mount)

*Product is discontinued, Replacement Option: STC-HD213DV

SKU
STC-HD93DV
The STC-HD93DV is our first HD Digital output cased camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution. This CCD based camera outputs a true HD 720p, 16x9 image at 60fps. It also features the capability to program 28 individual DSP profiles and has a programmable on-camera push-button for manual control. The STC-HD93DV also boasts an ultra-compact size of 40 (W) x 40 (H) x 45.8 (D) mm.

Features:
  • 1/3" CCD Image Sensor
  • True 720p, High Definition Output
  • Low Cost & Compact Case Size


Applications:

  • Remote Viewing
  • Surveillance
  • Inspection
  • Industrial
  • Security
Image Sensor 1/3" interline SXGA CCD: ICX692AQA
HD Active Picture Element 1280 (H) x 720 (V)
Chip Size 6.04 (H) x 4.0 (V) mm
Cell Size 4.08 (H) x 4.08 (V) µm
Minimum Scene Illumination 4 Lux at F1.2 at 50 % IRE, AGC ON and 1/60 seconds shutter speed with IR cut filter
Resolution 600 TV lines
Sync System Internal
DVI Model
DVI 1.0 conformity RGB, 1280 (H) x 720 (V),59.94Hz / 60Hz / 50Hz / 29.97Hz / 30Hz / 25Hz
ALC Can be configured via the UART communication with auto electronic shutter and AGC
Shutter Speed Adjustable shutter speed via the UART communication Up to 1/100,000 seconds at 60 Hz / 59.94 Hz or up to 1/83,947 seconds at 50 Hz
Gain AGC or Fixed gain selectable via the UART communication Gain range: 0 to 18.3 dB
Digital Gain Up to 5.9866 dB
Gamma 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma Selectable gamma via the UART communication
White Balance Auto white balance / manual white balance / push to set white balance Selectable white balance via the UART communication
Mirror Image Normal image and horizontal flip are selectable mirror image via the UART
DSP Preset Twenty eight DSP presets Selectable picture mode via the UART communication
Line Generator Both horizontal and vertical with all available colors Adjustable thickness via the UART communication
Shadow Mask Generator Both horizontal and vertical with shading level adjustment via the UART communication
Communication +3.3V UART communication via 3.5Φ stereo jack
Character Generator Built-in character generation function via the UART communication
Pixel Blemish Collection Up to 64 pixel blemish static collection
Input Voltage
+9 to +15 Vdc (Typical: +12 Vdc)
Input Voltage
Less than 2.8W
Dimensions 40 (W) x 40 (H) x 45.8 (D) mm
Optical Filter IR cut filter on
Lens Mount C mount/CS-mount
Video Output
DVI Output:HDMI connector
Power Input
12V power jack
External Control
3.5Φ stereo jack with SW board
Communication
3.5Φ stereo jack
Button Primary SW Initial press button function: push to set white balance Initial hold button function: Auto white balance (Function is selectable via the UART communication)
Weight Approximate 120g
Operating Temperature 0 to +40 deg. C
Storage Temperature -30 to +65 deg. C
Vibration 20Hz to 200Hz to 20Hz (5min./cycle), acceleration: 10G, 30 min., XYZ each directions
Shock Acceleration: 38G, half amplitude 6ms, 3 times XYZ each directions
Standard Compliancy EMS: EN61000-6-2, EMI: 55011
RoHS RoHS compliance
