Sentech STC-HD133SDI & STC-HD133SDI-CS

Quick Overview

Machine Vision Camera - 16:9 Format, 720p Color HD-SDI Camera

Availability: In stock

Sentech STC-HD133SDI & STC-HD133SDI-CS.

  • Model: /s/t/stc-ge202ox_10.jpg

Additional Information

Overview

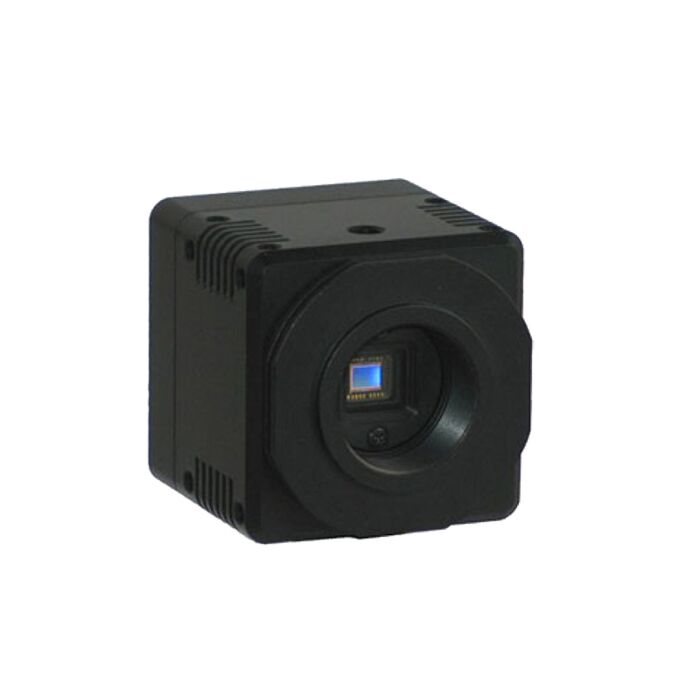

The STC-HD133SDI is a HD-SDI digital output cased camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution. This CCD based camera outputs a true HD 720p, 16x9 image at 60fps. It also features the capability to program 28 individual DSP profiles and has a programmable on-camera push-button for manual control. The STC-HD133SDI also boasts an ultra-compact size of 40 (W) x 40 (H) x 45.8 (D) mm.


  • 1/3" CCD Image Sensor
  • True 720p, High Definition Output
  • Low Cost & Compact Case Size
Specifications
Specifications
STC-HD133SDI
STC-HD133SDI-CS
Imager 1/3" Interline SXVGA CCD: ICX445AQA
HD Active Picture Element 1280 (H) x 720 (V)
Chip Size 626 (H) x 5.01 (V) mm
Cell Size 3.75 (H) x 3.75 (V) µm
Minimum Scene Illumination 5 Lux at F1.2 at 50% IRE, AGC ON and 1/60 seconds shutter speed with IR cut filter
Resolution 600 TV Lines
Sync System Internal
Video Output HD-SDI (SMPTE292M); YPbPr, 1280 (H) x 720 (V), 60Hz / 59.94Hz / 50Hz
ALC Can be configured via UART communication with auto electronic shutter and AGC
Shutter Speed Adjustable shutter speed via the UART communication Upt to 1/100,000 seconds at 60Hz / 59.94Hz or up to 1/83,947 seconds at 50Hz
Gain AGC or Fixed gain selectable via the UART communication; Gain range: 0 to 18.3 dB
Digital Gain Up to 5.9866 dB
Gamma 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma; Gamma selectable via the UART communication
White Balance Auto white balance / manual white balance / push-to-set white balance; White balance selectable via the UART communication
Mirror Image Normal Image and Horizontal Flip are selectable via UART communication
DSP Presets 28 DSP presets; Selectable picture mode via the UART communication
Line Generator Both horizontal and vertical with all available colors Thickness adjustable via the UART communication
Shadow Mask Generator Horizontal and vertical w/ shading level adjustment via the UART communication
Communication +3.3V UART communication via 3.5φ stereo jack
Character Generator Built-in character generation function via the UART communication
Pixel Blemish Collection Up to 64 pixel blemish static collection
Power
- Input Voltage +9Vdc to +15Vdc (Typically: 12Vdc)
- Consumption < 3.0 W
Dimensions 40 (W) x 40 (H) x 45.8 (D) mm
Optical Filter Includes IR cut filter
Lens Mount C mount CS mount
Interface Connector
- Video Output BNC connector
- Power Input 12V power jack
- External Control 3.5φ stereo jack with SW board
- Communication 3.5φ stereo jack
Button Primary SW Initial press button function: push-to-set white balance Initial hold button function: Auto white balance (Function is selectable via the UART communication)
Weight Approximately 120 g
Temperature
- Operational 0 to 40 deg. C
- Storage -30 to 65 deg. C
Vibration 20Hz to 200Hz to 20Hz (5min./cycle), Acceleration: 10G, 30min., XYZ each direction
Shock Acceleration: 38G, half amplitude 6ms, 3 times, XYZ each direction
Standard Compliancy EMS: EN61000-6-2, EMI: 55011
RoHS RoHS Compliant



Product Videos No
Accessories No

The STC-HD133SDI is a HD-SDI digital output cased camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution. This CCD based camera outputs a true HD 720p, 16x9 image at 60fps. It also features the capability to program 28 individual DSP profiles and has a programmable on-camera push-button for manual control. The STC-HD133SDI also boasts an ultra-compact size of 40 (W) x 40 (H) x 45.8 (D) mm.


  • 1/3" CCD Image Sensor
  • True 720p, High Definition Output
  • Low Cost & Compact Case Size
Specifications
STC-HD133SDI
STC-HD133SDI-CS
Imager 1/3" Interline SXVGA CCD: ICX445AQA
HD Active Picture Element 1280 (H) x 720 (V)
Chip Size 626 (H) x 5.01 (V) mm
Cell Size 3.75 (H) x 3.75 (V) µm
Minimum Scene Illumination 5 Lux at F1.2 at 50% IRE, AGC ON and 1/60 seconds shutter speed with IR cut filter
Resolution 600 TV Lines
Sync System Internal
Video Output HD-SDI (SMPTE292M); YPbPr, 1280 (H) x 720 (V), 60Hz / 59.94Hz / 50Hz
ALC Can be configured via UART communication with auto electronic shutter and AGC
Shutter Speed Adjustable shutter speed via the UART communication Upt to 1/100,000 seconds at 60Hz / 59.94Hz or up to 1/83,947 seconds at 50Hz
Gain AGC or Fixed gain selectable via the UART communication; Gain range: 0 to 18.3 dB
Digital Gain Up to 5.9866 dB
Gamma 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma; Gamma selectable via the UART communication
White Balance Auto white balance / manual white balance / push-to-set white balance; White balance selectable via the UART communication
Mirror Image Normal Image and Horizontal Flip are selectable via UART communication
DSP Presets 28 DSP presets; Selectable picture mode via the UART communication
Line Generator Both horizontal and vertical with all available colors Thickness adjustable via the UART communication
Shadow Mask Generator Horizontal and vertical w/ shading level adjustment via the UART communication
Communication +3.3V UART communication via 3.5φ stereo jack
Character Generator Built-in character generation function via the UART communication
Pixel Blemish Collection Up to 64 pixel blemish static collection
Power
- Input Voltage +9Vdc to +15Vdc (Typically: 12Vdc)
- Consumption < 3.0 W
Dimensions 40 (W) x 40 (H) x 45.8 (D) mm
Optical Filter Includes IR cut filter
Lens Mount C mount CS mount
Interface Connector
- Video Output BNC connector
- Power Input 12V power jack
- External Control 3.5φ stereo jack with SW board
- Communication 3.5φ stereo jack
Button Primary SW Initial press button function: push-to-set white balance Initial hold button function: Auto white balance (Function is selectable via the UART communication)
Weight Approximately 120 g
Temperature
- Operational 0 to 40 deg. C
- Storage -30 to 65 deg. C
Vibration 20Hz to 200Hz to 20Hz (5min./cycle), Acceleration: 10G, 30min., XYZ each direction
Shock Acceleration: 38G, half amplitude 6ms, 3 times, XYZ each direction
Standard Compliancy EMS: EN61000-6-2, EMI: 55011
RoHS RoHS Compliant
