Sentech STC-HD133DV-B HD Board Level Camera

Quick Overview

1280 pixels x 720p, 1/3" CCD, 60 fps, HD-DVI, Board Level High Definition Block Camera. Available in Color


Video Output: DVI 1.0 compliant; RGB, 1280 (H) x 720 (V); 60 FPS / 59.94 Hz / 50 Hz
Min Illumination: 5 Lux at F1.2 at 50% IRE; AGC ON and 1/60 second shutter speed with IR Cut Filter

Availability: In stock

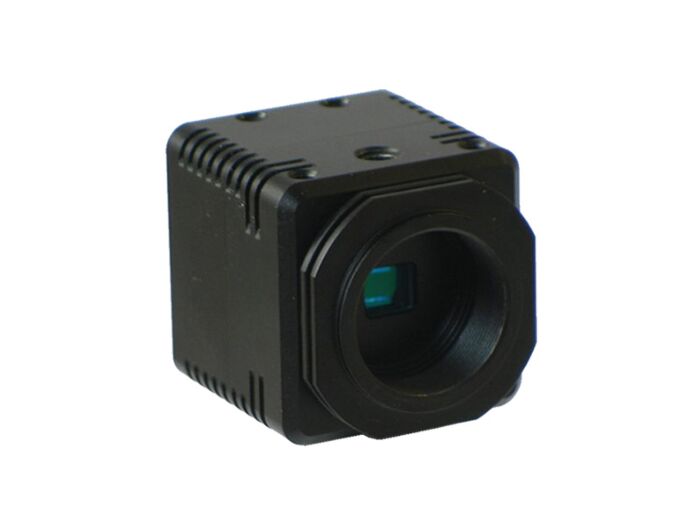

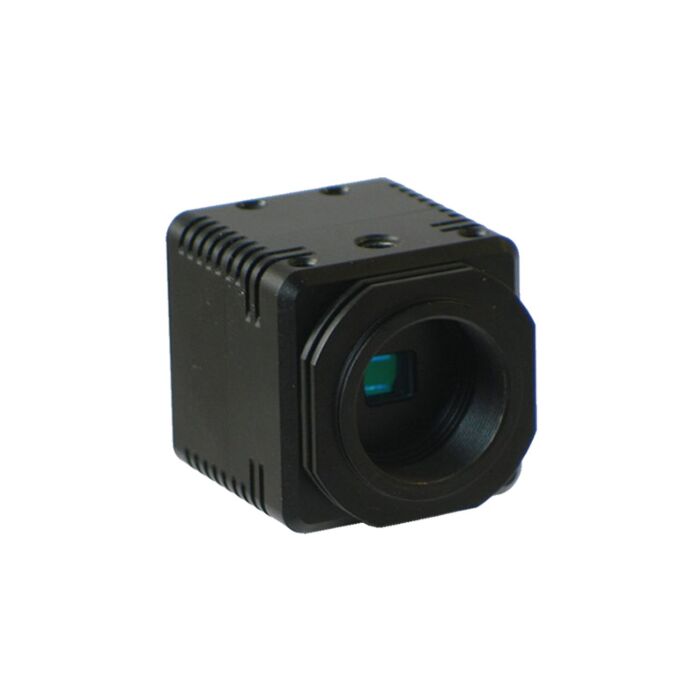

Sentech STC-HD133DV-B HD Board Level Camera.

  • Model: /s/t/stc-hd133dv_1.jpg

Additional Information

Overview

HD-DVI Output, 720p, Board The STC-HD133DV-B is our first HD Digital output board-level camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution. This CCD based camera outputs a true HD 720p, 16x9 image at 60fps. It also features the capability to program 28 individual DSP profiles and has a programmable on-camera push-button for manual control. The STC-HD133DV-B also boasts an ultra-compact size of 35 (W) x 35 (H) x 46.7 (D) mm.



  • 1/3" CCD Image Sensor
  • True 720p, High Definition Output
  • Low Cost & Compact Board Size



Specifications
STC-HD133DV-B Specifications
Resolution 16:9 Format 720p
Image Sensor 1/3" Interline SXGA CCD (ICX445AQA)
Active Picture Element 1280 (H) x 720 (V)
Chip Size (um) 6.26 (H) x 5.01 (V) mm
Cell Size (um) 3.75 (H) x 3.75 (V) μm
Minimum Illumination 5 Lux at F1.2 at 50% IRE; AGC ON and 1/60 second shutter speed with IR Cut Filter
Resolution 600 TV Lines
Sync System Internal Sync.
Video Output DVI 1.0 compliant, RGB, 1280 (H) x 720 (V), 60 Hz / 50 Hz
ALC Auto electronic shutter and AGC can be configured via UART communication
Shutter Speed Shutter speed adjustable via UART communication; Up to 1/100,000 seconds at 60Hz / 59.94 Hz or up to 1/83,947 seconds at 50Hz
Gain AGC or fixed gain selectable via UART communication; Gain range: 0 to 18.3 dB
Digital Gain Up to 5.9866 dB
Gamma 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma; Gamma selectable via UART communication
WhiteBalance Auto / Manual / Push-to-set selectable via the UART communication
Mirror Image Normal Image and Horizontal Flip are selectable via UART communication
DSP Preset 28 DSP presets picture modes selectable via UART communication
Line Generator Both horizontal and vertical available with all colors; Thickness adjustable the UART communication
Shadow Mask Generator orizontal and vertical with shading level adjustment via UART communication
Communication +3.3V UART communication via 3.5ф stereo jack
Character Generator Built-in character generating function via the UART communication
Pixel Blemish Collection Up to 64 pixel blemish static collection
Optical Filter IR cut filter included
Button One push button; Initial press button function: push-to-set white balance; Initial hold button function: Auto white balance; (Function is selectable via the UART communication)
Interface Connector
- Video Output HDMI connector
- Power Input 12V power jack
- External Control 3.5ф stereo jack with SW board, SM06B-SRSS (JST) 6-pin connector header for up to 9 external switch connectivity
- Communication 3.5ф stereo jack
Power
- Input Voltage 9Vdc to 15Vdc (Typically: 12Vdc)
- Consumption < 3.0 W
Temperature
- Operational 0°C ~ 45°C
- Storage -30 to +65 deg. C
Dimensions 35 (W) x 35 (H) x 46.7 (D) mm
Weight Approximately 50g
Vibration -
Shock -
Standard Compliancy EMS: EN61000-6-2; EMI: 55011
RoHS RoHS compliant
Product Videos No
Accessories No

HD-DVI Output, 720p, Board The STC-HD133DV-B is our first HD Digital output board-level camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution. This CCD based camera outputs a true HD 720p, 16x9 image at 60fps. It also features the capability to program 28 individual DSP profiles and has a programmable on-camera push-button for manual control. The STC-HD133DV-B also boasts an ultra-compact size of 35 (W) x 35 (H) x 46.7 (D) mm.



  • 1/3" CCD Image Sensor
  • True 720p, High Definition Output
  • Low Cost & Compact Board Size



STC-HD133DV-B Specifications
Resolution 16:9 Format 720p
Image Sensor 1/3" Interline SXGA CCD (ICX445AQA)
Active Picture Element 1280 (H) x 720 (V)
Chip Size (um) 6.26 (H) x 5.01 (V) mm
Cell Size (um) 3.75 (H) x 3.75 (V) μm
Minimum Illumination 5 Lux at F1.2 at 50% IRE; AGC ON and 1/60 second shutter speed with IR Cut Filter
Resolution 600 TV Lines
Sync System Internal Sync.
Video Output DVI 1.0 compliant, RGB, 1280 (H) x 720 (V), 60 Hz / 50 Hz
ALC Auto electronic shutter and AGC can be configured via UART communication
Shutter Speed Shutter speed adjustable via UART communication; Up to 1/100,000 seconds at 60Hz / 59.94 Hz or up to 1/83,947 seconds at 50Hz
Gain AGC or fixed gain selectable via UART communication; Gain range: 0 to 18.3 dB
Digital Gain Up to 5.9866 dB
Gamma 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma; Gamma selectable via UART communication
WhiteBalance Auto / Manual / Push-to-set selectable via the UART communication
Mirror Image Normal Image and Horizontal Flip are selectable via UART communication
DSP Preset 28 DSP presets picture modes selectable via UART communication
Line Generator Both horizontal and vertical available with all colors; Thickness adjustable the UART communication
Shadow Mask Generator orizontal and vertical with shading level adjustment via UART communication
Communication +3.3V UART communication via 3.5ф stereo jack
Character Generator Built-in character generating function via the UART communication
Pixel Blemish Collection Up to 64 pixel blemish static collection
Optical Filter IR cut filter included
Button One push button; Initial press button function: push-to-set white balance; Initial hold button function: Auto white balance; (Function is selectable via the UART communication)
Interface Connector
- Video Output HDMI connector
- Power Input 12V power jack
- External Control 3.5ф stereo jack with SW board, SM06B-SRSS (JST) 6-pin connector header for up to 9 external switch connectivity
- Communication 3.5ф stereo jack
Power
- Input Voltage 9Vdc to 15Vdc (Typically: 12Vdc)
- Consumption < 3.0 W
Temperature
- Operational 0°C ~ 45°C
- Storage -30 to +65 deg. C
Dimensions 35 (W) x 35 (H) x 46.7 (D) mm
Weight Approximately 50g
Vibration -
Shock -
Standard Compliancy EMS: EN61000-6-2; EMI: 55011
RoHS RoHS compliant
