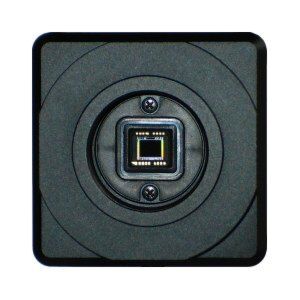

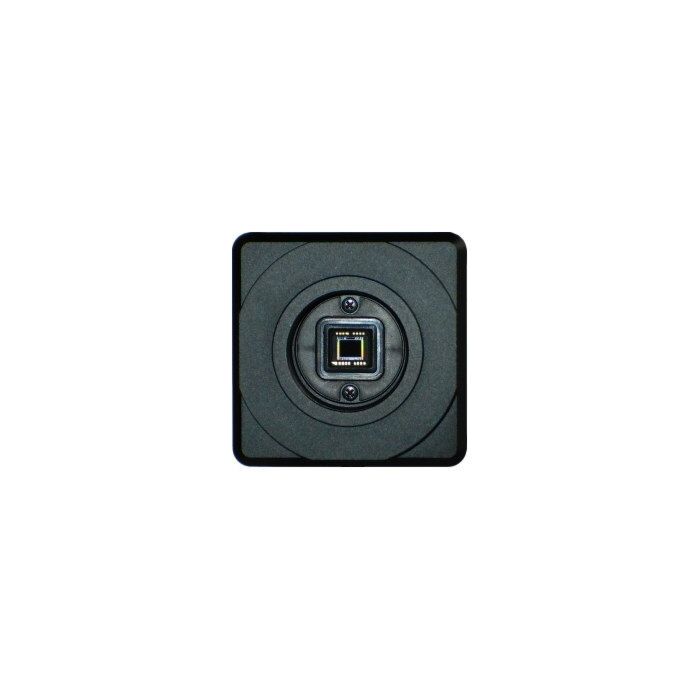

Omron STC-GEC33OX 0.3MP GigE Camera
692 x 504 Total Pixels, 1/3" interline VGA Monochrome Progressive CCD, 90 fps, Gigabit Ethernet Camera. Also available in Color.
SKU
STC-GEC33OX-DP-Sentech EOL
The STC-GEC33OX is part of Sentech's GigE camera line. It features a 1/3" color VGA sensor, 90fps and communication over a 12 pin Hirose or Ethernet connector. The STC-GEC33OX boasts a user-programmable Xilinx FPGA, a 32MB user memory and eight opto-isolated configurable I/Os. This camera meets all industry standards for GigE Vision® and GenICam™.
Features:
- 1/3" CCD Image Sensor
- VGA (0.3 Megapixel), 90fps
- User-Programmable Xilinx FPGA
| Imager | 1/3” Interline VGA color progressive CCD: ICX424AQ |
| Total Picture Element | 692 (H) x 504 (V) |
| Active Picture Element | VGA: 648 (H) x 494 (V) |
| Chip Size | 5.79 (H) x 4.89 (V) mm |
| Cell Size | 7.4 (H) x 7.4 (V) µm |
| Scanning System | Progressive |
| Vertical Frequency | 89.91172 Hz at full resolution 0.72028 to 360.33325 Hz adjustable via the communication Max. frame rate depends on the AOI setting Max. frame rate of the camera (360.33325 Hz) is 104 vertical resolution AOI setting |
| Horizontal Frequency | 47.2028 kHz |
| Pixel Frequency | 36.818175 MHz |
| Noise Level | |
|
@ 8bit output
|
<= 3 Digit (Gain 0 dB) |
|
@ 10bit output
|
<= 12 Digit (Gain 0 dB) |
|
@ 12bit output
|
<= 48 Digit (gain 0 dB) |
| Minimum Scene Illumination | 25.75 Lux at F1.2, 89.91172 Hz |
| Sync System | Internal |
| Video Output | Digital 8 ,10 or 12 bit Raw Data or RGB 8 bit |
| Interface | PoE: IEEE802.3af CLASS3 (1000BASE-T) |
| Protocol | GigE Vision 1.2 and GeniCam 2.0 compliant |
| Exposure Time | Preset continuous mode: 10 seconds to 16,777,216 seconds; Preset trigger mode: 10 seconds to 16,777,216 seconds; Pulse width mode: 10 seconds to Unlimited. |
| ALC | Auto iris lens, electronic iris and AGC (ON / OFF) |
| Gain | 0 to 20.4 dB |
| Gamma | Gamma 1.0 (Factory default) or downloadable gamma table |
| AOI Function | Programmable AOI setting via the communication |
| Smear Reduction | Selectable ON/OFF via the communication |
| Color Interpolation | Available on RGB output |
| White Balance Function | Auto, manual and push-to-set white balance is available on both Raw data output and RGB output |
| I/Os | Three opto-isolated inputs and five opto-isolated outputs |
| Auto Iris Lens Control | DC IRIS control input with video level target, peak/average and zone weight settings via the communication |
| Power | |
|
Input Voltage
|
+10.8 to +26.4 Vdc through power/IO connector or Power Over Ethernet (Auto detection with power/IO connector prioritized) |
|
Consumption
|
< 6.5 W (when user configurable FPGA is working) |
| Trigger Mode | Edge preset trigger, Pulse width trigger (unlimited long exposure) |
| Communication | UART Communication through Ethernet port |
| User Configurable FPGA | |
|
FPGA
|
XILINX FPGA (XC3SD1800A, CSG484 package), 1,800K gates |
|
DDR2
|
W9725G6JB-25 (Winbond), 32 MB |
|
EEPROM
|
M95512-RMN6TP (ST Micro), 512 KB |
|
Configuration EEPROM
|
M25P80-VMP6G (Micron), 8 MB |
| Dimensions | 50 (W) x 50 (H) x 53.5 (D) mm excluding connectors |
| Optical Filter | IR cut filter on |
| Optical Center Accuracy | Positional accuracy in H and V directions: +/- 0.3 mm Rotational accuracy of H and V: +/- 1.5 deg. |
| Material | Aluminum (AC) |
| Lens Mount | C Mount |
| Connectors | RJ45 connector Power/IO connector: HR10A-10R-12PB (Hirose) or equivalent DC IRIS lens connector: M1951 (EMUDEN) or equivalent |
| Camera Mount Screws | Two ¼” Tripod screw holes (one on each top and bottom plate) Sixteen M4 screw holes (Four on each top, bottom and both side plate) |
| Weight | Approximately 170g |
| Operating Temperature | |
|
Minimum
|
Environmental Temperature: -5 deg. C |
|
Maximum
|
Camera housing temperature (Top plate): 70 deg. C (See Operational temperature and Power Consumption) |
| Storage Temperature | -30 ~ 65 deg. C |
| Vibration | 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each |
| Shock | Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each |
| Standard Compliancy | TBD |
| RoHS | RoHS compliant |
