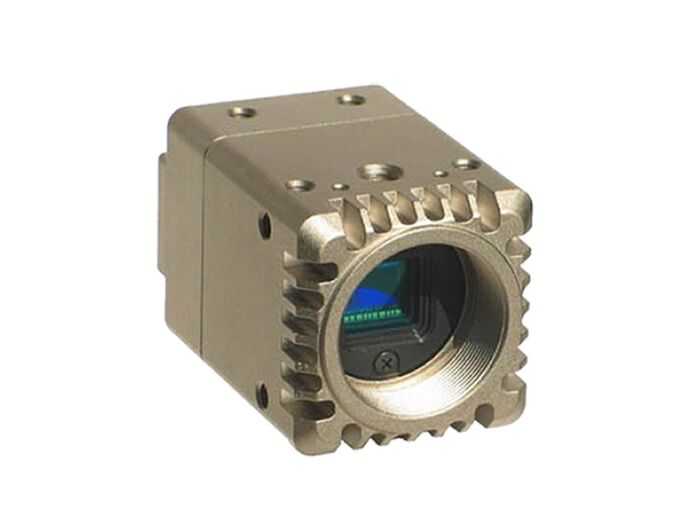

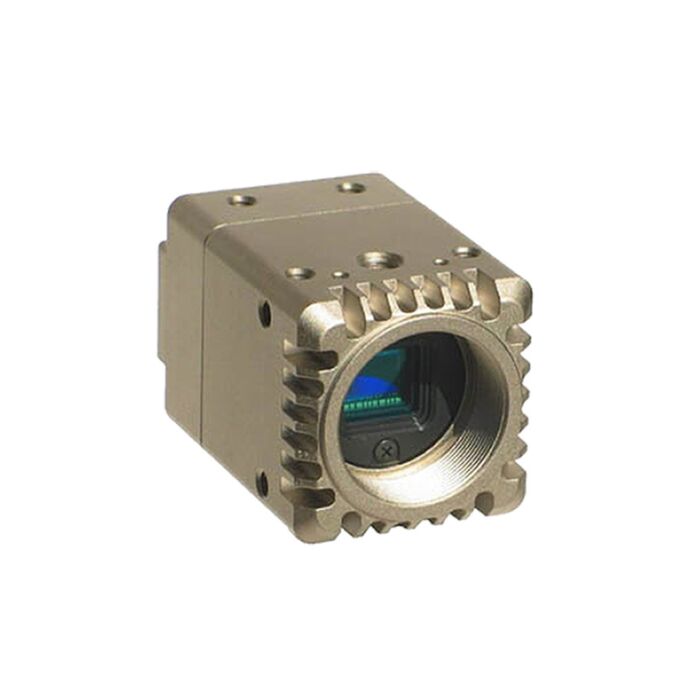

  • Sentech STC-GE500A GigE Camera Image

Sentech STC-GE500A GigE Camera

Quick Overview

2448 pixels x 2058 pixels, 2/3" PS IT CCD, 15 fps, Gigabit Ethernet Camera. Available in Monochrome (Black & White)
Overview

The STC-GE500A is part of Sentech's Standard GigE camera line. It features a 2/3" monochrome QSXGA sensor, 15fps and communication over a 6 pin Hirose or Ethernet connector. The STC-GE500A boasts precision housing with accurate CCD alignment, a DC Auto Iris Lens Driver, a user-programmable Area of Interest (AOI) and a Gamma Table that can be imported. This camera meets all industry standards for GigE Vision® and GenICam™.

Features:

  • 2/3" CCD Image Sensor
  • QSXGA (5 Megapixel), 15fps
  • User-Programmable Area of Interest (AOI)
  • Specifications
    Image Sensor 2/3” Interline QSXGA monochrome progressive CCD: ICX625AL
    Total Picture Element 2536 (H) x 2068 (V)
    Active Picture Element QSXGA: 2448 (H) x 2058 (V)
    Chip Size 9.93 (H) x 8.70 (V) mm
    Cell Size 3.45 (H) x 3.45 (V) µm
    Scanning System Progressive
    Vertical Frequency (Frame Rate) 15 Hz at full resolution 0.48175 to 60.71422 Hz adjustable via the communication Max. frame rate depends on the AOI setting Max. frame rate of the camera(60.71422 Hz) is 128 vertical resolution AOI setting
    Horizontal Frequency 31.1284 kHz
    Pixel Frequency 81.8182 MHz
    Noise Level
    @ 8bit output
    ≤ 4 Digit (Gain 0 dB)
    @ 10bit output
    ≤ 15 Digit (Gain 0 dB)
    @ 12bit output
    ≤ 60 Digit (Gain 0 dB)
    Minimum Scene Illumination 0.10 Lux at F1.2, 15 Hz
    Sync System Internal
    Video Output Digital 8, 10 or 12 bit Raw Data
    Interface IEEE802.3 (1000BASE-T)
    Protocol GigE Vision® 1.2 and GenICam™ 2.0 compliant
    Exposure Time Preset continuous mode: 10 useconds to 16,777,216 useconds Preset trigger mode: 10 useconds to 16,777,216 useconds Pulse width mode: 10 useconds to Unlimited
    ALC Auto iris lens, electronic iris and AGC (ON / OFF)
    Gain 0 to 20.4 dB
    Gamma Gamma 1.0 (Factory default) or uploadable gamma table
    AOI Function Programmable AOI setting via the communication
    Smear Reduction Selectable ON / OFF via the communication
    Color Interpolation N/A
    White Balance Function N/A
    Trigger Mode Edge preset trigger, Pulse width trigger (unlimited long exposure)
    Communication UART Communication through Ethernet port
    I/Os One opto-isolated input and two LVTTL outputs
    Auto IRIS lens control DC IRIS control input with video level target, peak/average and zone weight settings via the communication
    Power
    Input Voltage
    +10.8 to +26.4 Vdc
    Consumption
    < 6.0 W
    Dimensions 35 (W) x 35 (H) x 50.6 (D) mm excluding connectors
    Optical Filter No filter
    Optical Center Accuracy Positional accuracy in H and V directions: +/- 0.3 mm Rotational accuracy of H and V: +/- 1.5 deg.
    Material Aluminum (AC)
    Lens Mount C mount
    Connectors RJ45 connector Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent DC IRIS lens connector: M1951 (EMUDEN) or equivalent
    Camera Mount Screws Two 1/4” Tripod screw holes: (One on each top and bottom plate), Twelve M4 screws holes: (Four on each top and bottom plate, two on each side plate)
    Weight Approximately 120g
    Operating Temperature
    Minimum
    Environmental temperature -5 deg. C
    Maximum
    TBD
    Storage Temperature Environmental temperature -30 ~ 65 deg. C
    Vibration 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each
    Shock Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each
    Standard Compliancy EMS: EN61000-6-2, EMI: EN55011
    RoHS RoHS Compliant
