  • Sentech STC-GE202OX GigE Camera Image

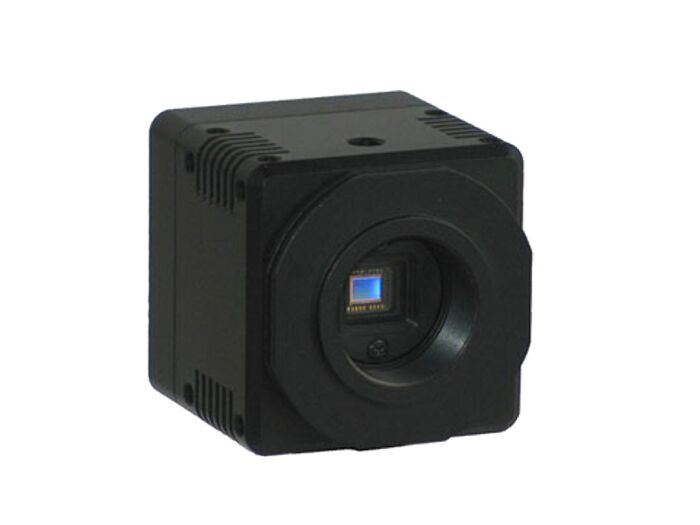

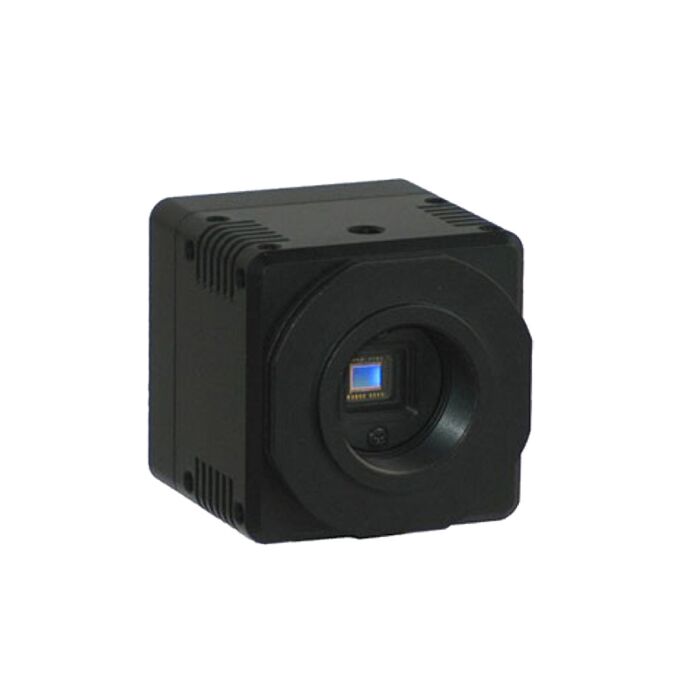

Sentech STC-GE202OX GigE Camera

Quick Overview

1624 pixels x 1236 pixels, 1/1.8" PS IT CCD, 15 fps, Gigabit Ethernet Camera. Available in Monochrome (Black & White)
Overview

The STC-GE202OX is part of Sentech's GigE camera line. It features a 1/1.8" monochrome UXGA sensor, 15fps and communication over a 12 pin Hirose or Ethernet connector. The STC-GE202OX boasts a user-programmable Xilinx FPGA, a 32MB user memory and eight opto-isolated configurable I/Os. This camera meets all industry standards for GigE Vision® and GenICam™.

  • 1/1.8" CCD Image Sensor
  • UXGA (2 Megapixel), 15fps
  • User-Programmable Xilinx FPGA
Specifications
STC-GE202OX Specifications
Imager 1/1.8” Interline UXGA monochrome progressive CCD: ICX274AL
Total Picture Element 1688 (H) x 1246 (V)
Active Picture Element UXGA: 1624 (H) x 1236 (V)
Chip Size 8.5 (H) x 6.8 (V) mm
Cell Size 4.4 (H) x 4.4 (V) µm
Scanning System Progressive
Vertical Frequency 15.31668 Hz at full resolution 0.29261 to 61.26674 Hz adjustable via the communication Maximum frame rate depends on the AOI setting Maximum frame rate of the camera (61.26674 Hz) is 230 vertical resolution AOI setting
Horizontal Frequency 19.176 kHz
Pixel Frequency 36.8181 MHz
Noise Level
@ 8bit output
<= 3 Digit (Gain 0 dB)
@ 10bit output
<= 12 Digit (Gain 0 dB)
@ 12bit output
<= 48 Digit (gain 0 dB)
Minimum Scene Illumination 0.16 Lux at F1.2, 15.31668 Hz
Sync System Internal
Video Output Digital 8 ,10 or 12 bit Raw Data
Interface PoE : IEEE802.3af CLASS3 (1000BASE-T)
Protocol GigE Vision 1.2 and GeniCam 2.0 compliant
Exposure Time Preset continuous mode: 10 useconds to 16,777,216 useconds Preset trigger mode: 10 useconds to 16,777,216 useconds Pulse width mode: 10 useconds to Unlimited
ALC Auto iris lens, electronic iris and AGC (ON / OFF)
Gain 0 to 20.4 dB
Gamma Gamma 1.0 (Factory default) or downloadable gamma table
AOI Function Programmable AOI setting via the communication
Smear Reduction Selectable ON/OFF via the communication
Color Interpolation N/A
White Balance Function N/A
I/Os Three opto-isolated inputs and five opto-isolated outputs
Auto Iris Lens Control DC IRIS control input with video level target, peak/average and zone weight settings via the communication
Power
Input Voltage
+10.8 to +26.4 Vdc through power/IO connector or Power Over Ethernet (Auto detection with power/IO connector prioritized)
Consumption
< 6.8 W (when user configurable FPGA is working)
Trigger Mode Edge preset trigger, Pulse width trigger (unlimited long exposure)
Communication UART Communication through Ethernet port
User Configurable FPGA
FPGA
XILINX FPGA (XC3SD1800A, CSG484 package), 1,800K gates
DDR2
W9725G6JB-25 (Winbond), 32 MB
EEPROM
M95512-RMN6TP (ST Micro), 512 KB
Configuration EEPROM
M25P80-VMP6G (Micro), 8 MB
Dimensions 50 (W) x 50 (H) x 53.4 (D) mm excluding connectors
Optical Filter No filter
Optical Center Accuracy Positional accuracy in H and V directions: +/- 0.3 mm Rotational accuracy of H and V: +/- 1.5 deg.
Material Aluminum (AC)
Lens Mount C Mount
Connectors RJ45 connector Power/IO connector: HR10A-10R-12PB (Hirose) or equivalent DC IRIS lens connector: M1951 (EMUDEN) or equivalent
Camera Mount Screws Two ¼” Tripod screw holes (one on each top and bottom plate) Sixteen M4 screw holes (Four on each top, bottom and both side plate)
Weight Approximately 170g
Operating Temperature
Minimum
Environmental Temperature: -5 deg. C
Maximum
Camera housing temperature (Top plate): 70 deg. C (See Operational temperature and Power Consumption)
Storage Temperature -30 ~ 65 deg. C
Vibration 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each
Shock Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each
Standard Compliancy TBD
RoHS RoHS compliant
