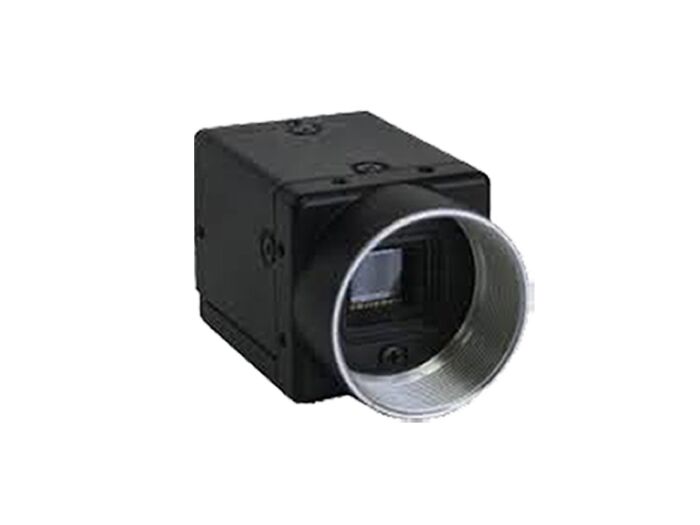

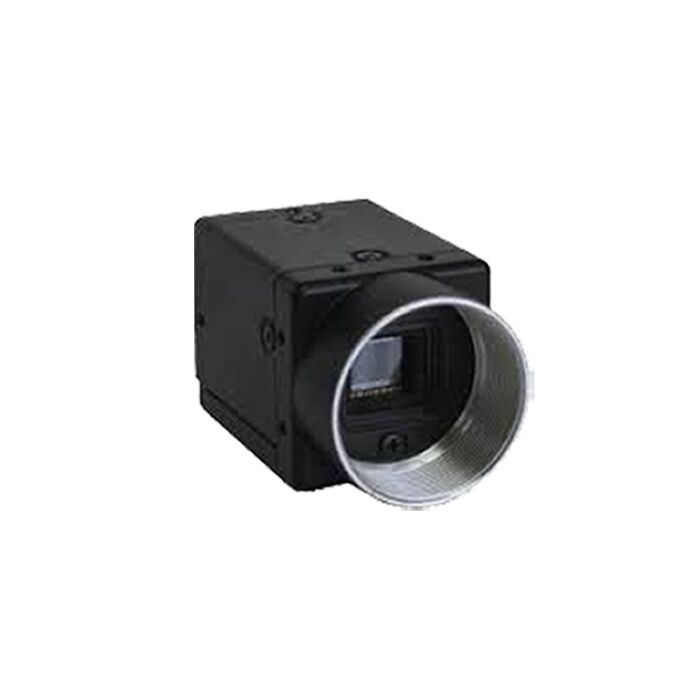

Sentech STC-E42A Machine Vision Camera EIA Analog Interlace Camera

Quick Overview

The STC-E42A camera is an industrial grade 2:1 Interlace camera, with a 1/2" monochrome CCD. This camera is designed and machined with very tight tolerances to have optimal CCD centering quality. This series of cameras is extremely reliable, provides a high quality image and is very cost-effective. The size of this camera is extremely small, the housing has manual dip switches for on-the-fly adjustments, and the camera can be controlled via RS232 software.

Availability: In stock

More Views

Additional Information

Overview The STC-E42A camera is an industrial grade 2:1 Interlace camera, with a 1/2" monochrome CCD. This camera is designed and machined with very tight tolerances to have optimal CCD centering quality. This series of cameras is extremely reliable, provides a high quality image and is very cost-effective. The size of this camera is extremely small, the housing has manual dip switches for on-the-fly adjustments, and the camera can be controlled via RS232 software.
Specifications
 Specifications
Image Sensor 1/2" interline B/W
EIA CCD: ICX418AL
Scanning system 2:1 Interlace
Total picture elements 811 (H) x 508 (V)
Effective picture elements 768 (H) x 494 (V)
Chip size 7.40 (H) x 5.95 (V)
Cell size 8.4 (H) x 9.8 (V)
Vertical frequency (Frame rate) 59.94Hz
Horizontal frequency 15.734kHz
Pixel frequency 14.318MHz
S/N ratio (standard deviation) 56 dB (GAIN 0dB)
Minimum scene illumination 0.75 Lux @ F12
Sync. System Internal / External
Video output 1.0 Vp-p / 75Ω, DC Coupling (0V)
Shutter Speed

Dip Switch: OFF, 1/200, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/8,000, 1/20,000 second
Communication: OFF, 1/2 to 1/100,000 sec. (Variable at every H and clock)

Gain 0 to 27 dB
Gamma 1 / 0.45
Communication RS232 via Camera Link connector
Optical filter No IR cut filter
Optical center accuracy Position accuracy in H and V directions: +/- 0.31mm
Rotation accuracy of H and V:+/- 2.1 deg.
Lens mount C Mount
Input voltage DC12V ± 10%
Consumption Less than 1.8W
Operational Temp Temperature: -5 to 50 deg. C, RH: 0 to 85% (No condensation)
Storage Temp Temperature: -30 to 65 deg. C, RH: 0 to 90% (No condensation)
Dimensions 28 (W) x 28 (H) x 46.3 (D) mm including lens mount and the connector
Weight: Approximately 52g (Camera: 43g, tripod: 9g)
Product Videos N/A
The STC-E42A camera is an industrial grade 2:1 Interlace camera, with a 1/2" monochrome CCD. This camera is designed and machined with very tight tolerances to have optimal CCD centering quality. This series of cameras is extremely reliable, provides a high quality image and is very cost-effective. The size of this camera is extremely small, the housing has manual dip switches for on-the-fly adjustments, and the camera can be controlled via RS232 software.
 Specifications
Image Sensor 1/2" interline B/W
EIA CCD: ICX418AL
Scanning system 2:1 Interlace
Total picture elements 811 (H) x 508 (V)
Effective picture elements 768 (H) x 494 (V)
Chip size 7.40 (H) x 5.95 (V)
Cell size 8.4 (H) x 9.8 (V)
Vertical frequency (Frame rate) 59.94Hz
Horizontal frequency 15.734kHz
Pixel frequency 14.318MHz
S/N ratio (standard deviation) 56 dB (GAIN 0dB)
Minimum scene illumination 0.75 Lux @ F12
Sync. System Internal / External
Video output 1.0 Vp-p / 75Ω, DC Coupling (0V)
Shutter Speed

Dip Switch: OFF, 1/200, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/8,000, 1/20,000 second
Communication: OFF, 1/2 to 1/100,000 sec. (Variable at every H and clock)

Gain 0 to 27 dB
Gamma 1 / 0.45
Communication RS232 via Camera Link connector
Optical filter No IR cut filter
Optical center accuracy Position accuracy in H and V directions: +/- 0.31mm
Rotation accuracy of H and V:+/- 2.1 deg.
Lens mount C Mount
Input voltage DC12V ± 10%
Consumption Less than 1.8W
Operational Temp Temperature: -5 to 50 deg. C, RH: 0 to 85% (No condensation)
Storage Temp Temperature: -30 to 65 deg. C, RH: 0 to 90% (No condensation)
Dimensions 28 (W) x 28 (H) x 46.3 (D) mm including lens mount and the connector
Weight: Approximately 52g (Camera: 43g, tripod: 9g)
