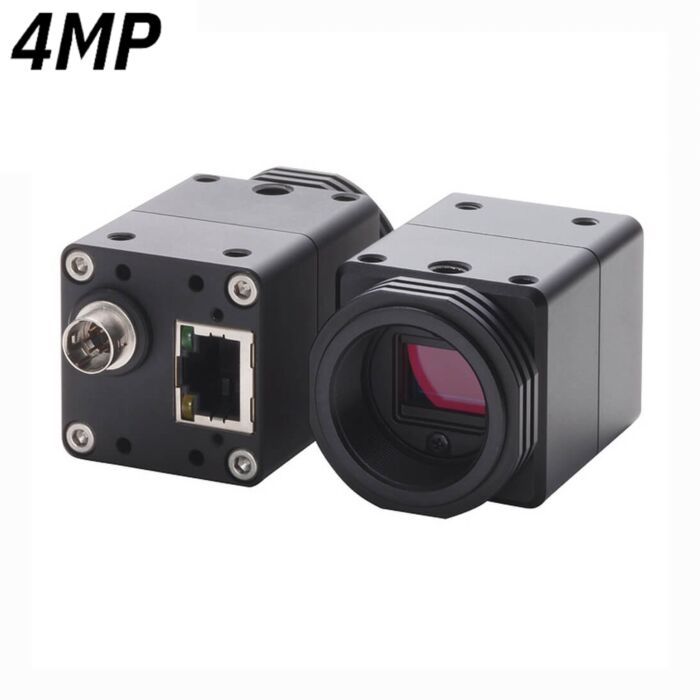

Omron STC-CMB4MPOE-NIR (STCCMB4MPOENIR) 4MP GigE, Monochrome Camera
Sentech STC-CMB4MPOE-IR 1" CMOS (CMOSIS CMV4000) Progressive Scan Monochrome Camera, 4.2 MP, 2048 H X 2048 V, 25 FPS, Global Shutter, C-Mount, POE. GigE Vision, NIR Optimized.
Features:
Applications:
Imaging
|
Model No |
STC-CMB4MPOE |
|
Image Sensor |
1" 4 MP Monochrome CMOS (CMOSIS: CMV4000) |
|
Shutter Type |
Global Shutter |
|
Total Picture Element |
2048 (H) x 2048 (V) |
|
Active Picture Element |
2048 (H) x 2048 (V) |
|
Cell Size |
5.5 (H) x 5.5 (V) μm |
Function
|
Scanning System |
Full scanning, Variable ROI |
|
Vertical Frequency (Frame Rate) |
25 Hz at full resolution (12.5Hz on 10bit for ether net bandwidth limitation), 1.00000 to 4000 Hz adjustable via the communication, (Frame rate depends on the AOI setting), Maximum frame rate (4000 Hz) is when vertical resolution AOI setting is 32. |
|
Horizontal Frequency |
54.4 kHz |
|
Pixel Frequency |
120 MHz |
|
Noise Level |
- |
|
- @ 8 Bit Output |
<= 2.5 Digit (Gain 0 dB) |
|
- @ 10 Bit Output |
<= 15 Digit (Gain 0 dB) |
|
Minimum Scene Illumination |
Less than 1 Lux @ F1.2, 50 Hz |
|
- Near IR (-NIR) |
Less than 1 Lux @ F1.2, 50 Hz |
|
Sync System |
Internal |
|
Video Output Format |
Digital 8, 10 bit Raw Data, (Default:8bit Raw) |
|
Interface |
IEEE802.3 (1000BASE-T) |
|
Protocol |
GigE Vision® 1.2 and GenICam™ 2.0 Compliant |
|
Exposure Time |
Preset continuous mode: 25 microseconds to 2000 milliseconds, Preset trigger mode:25 microseconds to 2000 milliseconds, Pulse width mode: 25 microseconds to 2000 milliseconds |
|
ALC (Automatic Light Compensation) |
Automatic Exposure (AE) and Automatic Gain Control (AGC) (ON/OFF) (adjustable via the communication), (Default: AE OFF, AGC ON) |
|
Gain |
x1 to x3 (Default: x1) |
|
Gamma |
Gamma 1.0 (Factory default) or uploadable gamma table (Default:1) |
|
AOI Function |
Variable AOI setting via the communication |
|
White Balance |
N/A |
|
Operating Mode |
Edge preset trigger, Pulse width trigger (Default:OFF) |
|
Communication |
UART Communication through Ethernet port |
|
I/Os |
One opt-isolated input and two open collector outputs(+3.3V) |
Mechanical
|
Power |
- |
|
- Input Voltage |
+10.8 ~ +26.4 Vdc |
|
- Consumption |
Less than 3.6 W |
|
Dimensions |
35 (W) x 35 (H) x 55.9 (D) mm excluding connectors |
|
Optical Filter |
No Filter |
|
Optical Center Accuracy |
Positional accuracy in H and V directions:: ±0.3 mm, Rotational accuracy of H and V: ±1.0 deg |
|
Material |
Aluminum (AC) |
|
Lens Mount |
C Mount |
|
Connectors |
RJ45 connector, Power- I/O connector: HR10A-10R-6PB (Hirose) or equivalent |
|
Camera Mount Screws |
Two 1/4'' Tripod screw holes (one each on top and bottom plate) Twelve M4 screws holes (four each on top and bottom plate, two each on both side plate) |
|
Weight |
Approx. 120g |
Environmental
|
Weight |
Approx. 130g |
|
Operating Temperature |
- |
|
- Minimum |
Environmental Temperature: -5°C |
|
- Maximum |
Camera housing temperature (top plate) shall not exceed 65⁰C, (This corresponds to an environmental temperature of approximately 35⁰C) |
|
Storage Temperature |
Environmental Temperature: -30 to +65 ºC, Environmental Humidity: 0 to 85% |
|
Vibration |
20Hz ~ 200Hz ~ 20Hz (5min./cycle), acceleration 10G, 3 directions 30 min. each |
|
Shock |
Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each |
|
Standard Compliancy |
EMS: EN61000-6-2, EMI: EN55011 |
|
RoHS |
RoHS Compliant |
