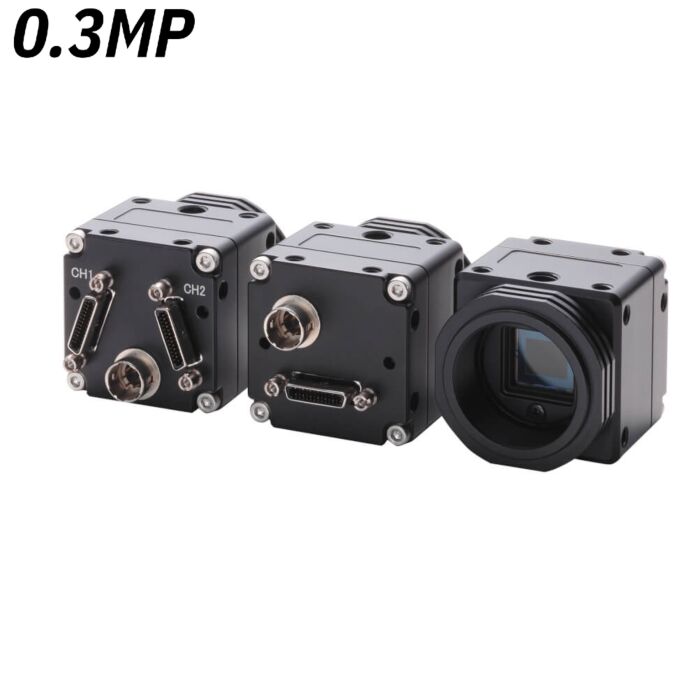

Omron STC-CMB33PCL (STCCMB33PCL) 0.3MP Mini Monochrome CL Camera

642 x 484 Effective Pixels, 1/3” VGA CMOS, 480fps (CMOS Sensor: CMOSIS CMV300)
SKU
STC-CMB33PCL

Sentech is proud to introduce the brand new Mini C-MOSIS Camera Link series. These cameras feature global shutter, which will allow them to safely record moving objects. These models are the second generation C-MOSIS Camera Link cameras, and have a smaller size, lower power consumption, and are a lower cost.

Features:

  • 642(H) x 484(V) 480fps
  • 7.4μm x 7.4μm 1/3” Sensor
  • Global Shutter
  • PoCL / External Power Supply
  • 40 x 40 x 40.5 mm (excluding connector)
  •
    Applications:


  • Traffic Camera
  • Security
  • Education
  • In Car Camera
  • Meetings
  • Industrial
  • Image Sensor Type 1/3" VGA CMOS (CMOSIS CMV300)
    Shutter Type Global Shutter
    Effective Pixels 642 (H) x 484 (V)
    Cell Size 7.4 (H) x 7.4 (V) μm
    Frame Rate 480fps
    Noise Levels 3 digits or less (8-bit, Gain 0 dB)
    Video Format 8/10 bit Raw Data, RGB 8 bit (Color)
    8/10 bit Raw Data (Monochrome, IR)
    Interface CameraLink Base/Medium/Full/10Tap
    Exposure Time 25μsec ~ 45 sec
    ALC AGC ON/OFF and Electronic Iris
    Digital Gain 1 ~ 5 dB
    Gamma 1.0 (fixed)
    White Balance Auto / Manual / Push to Set (Color Models Only)
    Operating Mode Edge Preset Trigger / Pulse Preset Trigger
    Communication RS232 communication (via Camera Link connector)
    Power Consumption less than 1.68W
    Dimensions 40 (W) x 40 (H) x 40.5 (D) mm (excluding connector)
    Optical Filter N/A
    Lens Mount C Mount
    External Connector Miniature Connector (SDR)
    Power & Signal Connector HR10A-7R-6PB (Hirose) or equivalent
    Camera Mounting 1/4" tripod mounting screw holes (1 on bottom surface)
    M4 Mounting Screws 4 mounting screws on the top and bottom of the camera
    Weight 94g
    Compliance RoHS Compliant
