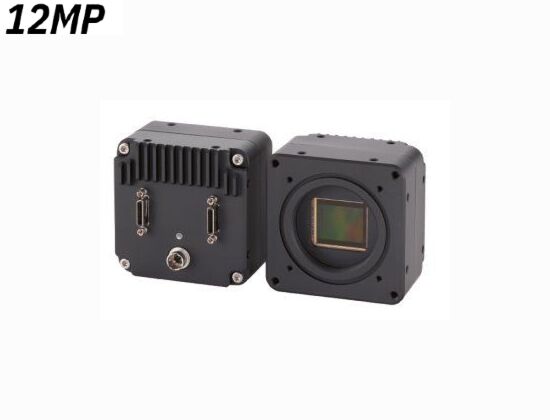

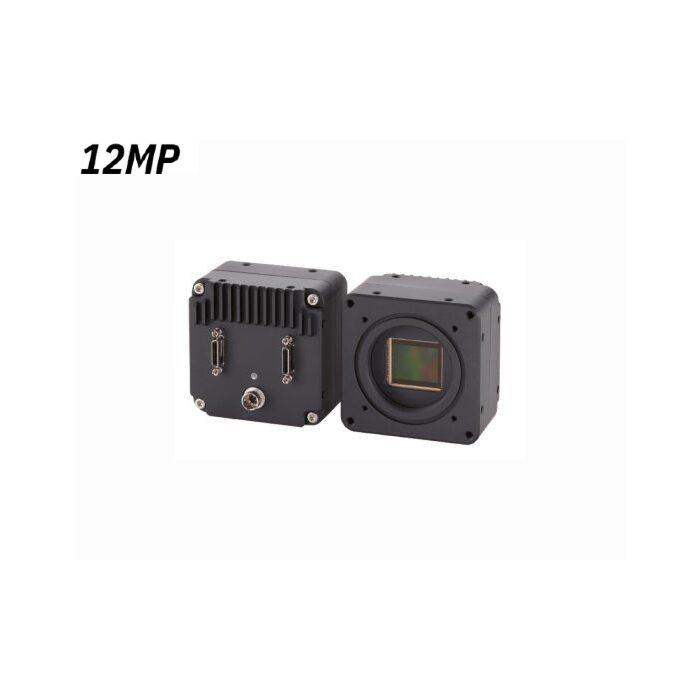

Omron STC-CMB120APCL (STCCMB120APCL) 12MP CL Mono Camera (PoCL) (CMOS Sensor: CMOSIS CMV12000)
This monochrome camera uses the C-MOSIS 12 Megapixel sensor which outputs full resolution at 62 fps. STC-CMB120APCL also provides full triggering capabilities, a user-configurable AOI (Area of Interest) and comes in a small package of 68 (W) x 68 (H) x 40 (D) mm.
Features:
Applications:
Imaging
|
Model No |
STC-CMB120APCL |
|
Image Sensor |
1.76 “ Type 12Meg monochome progressive CMOS (CMOSIS: CMV12000) |
|
Shutter Type |
Global Shutter |
|
Active Picture Element |
4090 (H) x 3072 (V): 10TAP 4096 (H) x 3072 (V): 8TAP,4TAP,2TAP 4092 (H) x 3072 (V): 3TAP |
|
Chip Size |
22.5 × 16.9 mm |
|
Cell Size |
5.5 (H) x 5.5 (V) μm |
Function
|
Scanning System |
Full scanning, Variable ROI |
|
Scanning Method |
Full scanning, Variable AOI |
|
Frame rate Vertical frequency of the Camera Link output |
62.3Hz(8bit 10TAP), 51.8Hz (8bit 8TAP), 25.9Hz (8/10/12bit 4TAP), 19.4Hz (8bit 3TAP), 12.9Hz (8/10/12bit 2TAP) |
|
Pixel Frequency |
10TAP, 8TAP,4TAP,3TAP,2TAP: 85MHz or 42.5MHz (Selectable) |
|
Noise level (8bit output) |
120 |
|
Minimum Scene Illumination |
TBD Lux @ F2.25 (10TAP) |
|
Sync System |
Internal |
|
Video Output |
8bit: 10TAP, Full, Medium, Base Configuration 10bit: Base Medium Configuration 12bit: Base Configuration |
|
Shutter Speed |
10, 8, 4, 2TAP：41[us] to TBD [s] (Variable at Line unit, Pulse Width Trigger),42[us] to TBD [s] (Variable us unit) 3TAP 42[us] to TBD [s] (Variable at Line unit, Pulse Width Trigger),43[us] to TBD [s] (Variable us unit ) |
|
Digital Gain |
1 to x5 |
|
Gamma |
1.0 |
|
Trigger Mode |
Edge Preset Trigger(V Reset), Pulse Width Trigger (V Reset) |
|
Power |
- |
|
- Input Voltage |
12 Vdc ± 10% |
|
- Consumption |
10TAP, Full Configuration: Less than 7.0 W Base Configuration: Less than 5.0W |
|
Communication |
RS232 via CameraLink® connector |
Mechanical
|
Dimensions |
68 (W) x 68 (H) x 40 (D) mm (Excluding the connector) |
|
Optical Filter |
No IR cut filter |
|
Material |
Aluminum alloy |
|
Lens Mount |
M42 mount (F mount with adapter) FB = 10.0mm(in Air) |
|
Interface Connector |
Camera Link connector: SDR connector x 2 Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent |
|
Weight |
Approx. 305g |
Environmental
|
Operating Temperature |
-5 ~ 40°C |
|
Storage Temperature |
-30 - 70°C |
|
Vibration |
20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each) |
|
Shock |
Acceleration 38G, half amplitude 6ms, XYZ 3 directions 3 times each |
|
Standard Compliancy |
EMS: EN61000-6-2, EMI: EN55022 (Class B) |
|
RoHS |
RoHS Compliant |
