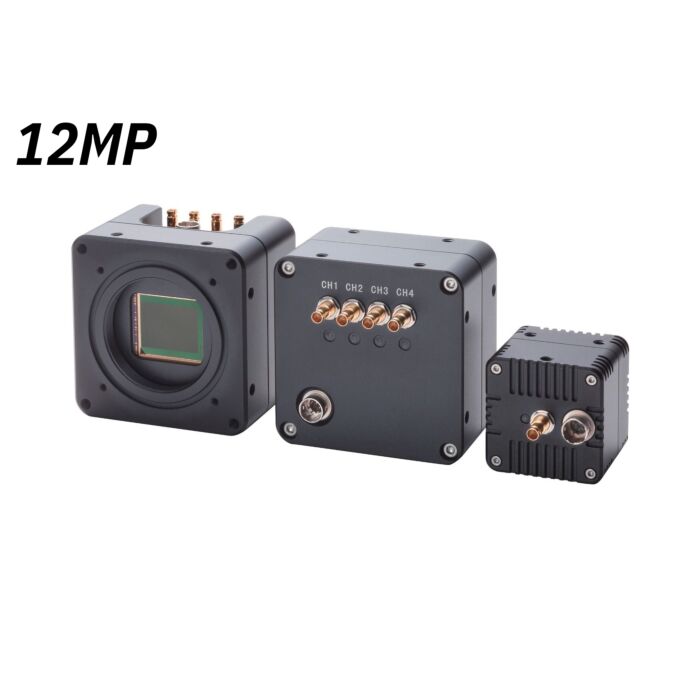

Omron STC-CMB120ACXP (STCCMB120ACXP) 12MP Monochrome CoaXPress Camera (CMOS Sensor: CMOSIS CMV12000)
The STC-CMB120ACXP features a global shutter sensor which will capture brilliant high res images at high speeds with little to no motion blur.
Features:
Application:
Imaging
|
Model No |
STC-CMB120ACXP |
|
Image Sensor |
1.76 “ Type 12Meg monochrome progressive CMOS (CMOSIS: CMV12000) |
|
Shutter |
Global Shutter |
|
Active Picture Element |
4096 (H) x 3072 (V) |
|
Chip Size |
22.5 × 16.9 mm |
|
Cell Size |
5.5 (H) x 5.5 (V) μm |
Function
|
Scanning System |
Full scanning, Variable ROI |
|
Scanning Method |
Full scanning, Variable ROI |
|
Frame Rate |
180fps (8bit 4-Lane) |
|
Video Output Interface |
CXP-6(6.25Gbps) 4 Lane |
|
Noise level (8bit) |
<= TBD Digit (Gain 0 dB) |
|
Minimum Scene Illumination |
TBD Lux at F2.25 |
|
Sync System |
Internal |
|
Shutter Speed |
16[us] to 16[s] |
|
Gain |
- |
|
- Digital |
1 to x5 |
|
- Analog |
x1,x2,x3 |
|
Trigger Mode |
FreeRun / Edge Preset Trigger / Pulse Width Trigger / CXP Tigger Packet |
|
Communication |
Protocol: CoaXPress Standard Version 1.1 Interface: GenIcam |
|
ROI |
Adjustable Steps for image size: 16 pixels in horizontal direction and 4 lines in vertical direction |
|
I/O |
3 GPIO |
|
Binning |
N/A |
|
HDR |
Support |
|
Pixel Defect Correction |
Support |
|
Vertical Line Correction |
Support |
|
Power |
- |
|
- Input Source |
PoCXP, (IO connector CH1 Only) *1 |
|
- Input Voltage |
TBD (18.5Vdc to 26Vdc (24V Nominal)) |
|
- Consumption |
120 |
Mechanical
|
Dimensions |
68 (W) x 68 (H) x 40 (D) mm (Excluding the connector) |
|
Optical Filter |
No IR cut filter |
|
Material |
Aluminum alloy |
|
Lens Mount |
M42×P1.0, FB = 10.0mm (in Air) |
|
Interface Connector |
CXP connector (camera: DIN1.0/2.3, Jack x 4, 75Ω) Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent |
|
Weight |
120 |
Environmental
|
Operating Temperature |
TBD (-5 to 40 deg. C) |
|
Storage Temperature |
TBD (-30 to 65 deg. C) |
|
Vibration |
20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each |
|
Shock |
Acceleration 38G, half amplitude 6ms, XYZ 3 directions 3 times each |
|
Standard Compliancy |
EMS: EN61000-6-2, EMI: EN55022 (Class B) |
|
RoHS |
RoHS, REACH compliance |
