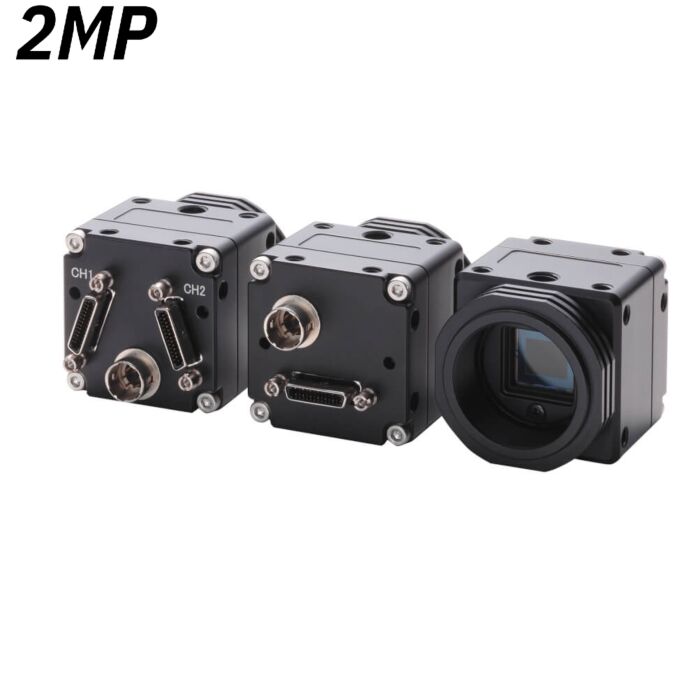

Omron STC-CLC232A 2MP CL Camera (UXGA)

The STC-CLC232A is a full featured, cost effective UXGA progressive scan digital Camera Link cube camera with 1/1.8" CCD with RGB Primary Color Filter. Featuring a full frame 30fps UXGA output, partial scanning, triggering, and reset capabilities (CMOS Sensor: Sony ICX274AQ)
SKU
STC-CLC232A

The STC-CLC232A is a full featured, cost effective UXGA progressive scan digital Camera Link cube camera with 1/1.8" CCD with RGB Primary Color Filter.  Featuring a full frame 30fps UXGA output, partial scanning, triggering, and reset capabilities.

Image Sensor 1/1.8” Interline UXGA Monochrome Progressive CCD: ICX274AQ
Total picture elements 1688 (H) x 1248 (V)
Effective picture elements 1628 (H) x 1236 (V)
UXGA: 1620 (H) x 1220 (V)
Chip size 8.5 (H) x 6.8 (V)mm
Cell size 4.4 (H) x 4.4 (V) μm
Scanning system Progressive
Scanning method Full Scanning, Partial Full Scanning, ½ Partial Scanning, ¼ Partial Scanning, Variable Partial Scanning
Vertical frequency (Frame rate) 30.854 Hz
Horizontal frequency 38.352 kHz
Pixel frequency 73.636 MHz
S/N ratio (standard deviation) 15 (Gain 0 dB)
Minimum scene illumination 10 Lux at F1.4
Sync. System Internal / External
Video output Digital 8 or 10 bit Camera Link (Base configuration)
Tap 2 Taps
Shutter Speed OFF, 1/2 to 1/100,000 sec. (Variable at every H and clock)
Gain 0 to 25 dB
Gamma 1.0
Input voltage DC12V ± 10%
Consumption Less than 4.0 W
Trigger mode Edge preset trigger (V-reset, Non-reset)
Pulse width trigger (V-reset, Non-reset)
Communication RS232 via Camera Link connector
Dimensions 28 (W) x 28 (H) x 53.5 (D) mm including lens mount and the connector
Optical filter No IR cut filter
Optical center accuracy Positional accuracy in H and V directions: +/- 0.31 mm
Rotational accuracy of H and V:+/- 2.1 deg.
Case Front, base and rear: Aluminum die cast (ADC12)
Cover: Steel sheet covered with zinc
CaseTripod Polycarbonate ABS
Lens mount C Mount
Interface connector HR10A-7R-6PB (Hirose) or equivalent
Tripod Tripod can be attached to 4 plates
(4 screws on the bottom plate, 3 screws on the other 3 plates)
Operational Temp Temperature: -5 to 40⁰C, RH: 0 to 85% (No Condensation)
Storage Temp Temperature: -30 to 65⁰C, RH: 0 to 90% (No Condensation)
Vibration 20Hz to 200Hz to 20Hz (5min./cycle), Acceleration 10G, 3 Directions 30 minutes each
Shock Acceleration 70G, Half Amplitude 6ms, 3 Directions 3 Times each
Standard compliancy EMS: EN61000-6-2, EMI: EN55011 (Class B)
RoHS RoHS compliance
