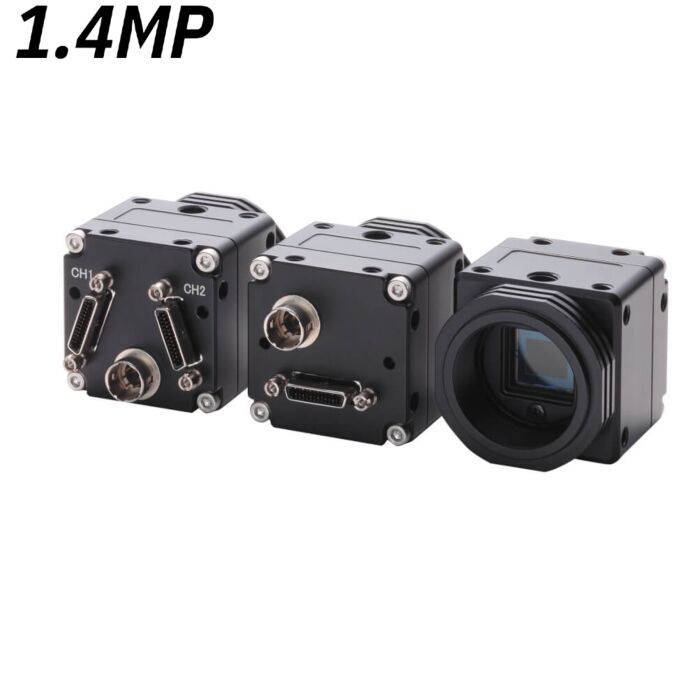

Omron STC-CL152A 1.4MP CL Camera (SXGA)

The STC-CL152A is a full featured, cost effective SXGA progressive scan digital Camera Link® cube camera with 1/2" CCD with Monochrome. Featuring a full frame 19fps SXGA output, partial scanning, triggering, and reset capabilities (CMOS Sensor: ICX205AL)
SKU
STC-CL152A-Sentech EOL

The STC-CL152A is a full featured, cost effective SXGA progressive scan digital Camera Link® cube camera with 1/2" CCD with Monochrome. Featuring a full frame 19fps SXGA output, partial scanning, triggering, and reset capabilities.

 Specifications
Image Sensor 1/2" Interline UXGA Monochrome Progressive CCD: ICX205AL
Total picture elements 1434 (H) x 1050 (V)
Effective picture elements 1392 (H) x 1040 (V)
SXGA: 1360 (H) x 1024 (V)
Chip size 7.6 (H) x 6.2 (V)mm
Cell size 4.65 (H) x 4.65 (V) μm
Scanning system Progressive
Scanning method Full scanning, Partial full scanning, 1/2 partial scanning, 1/4 partial scanning,Variable partial scanning, Binning, Binning partial scanning, Binning 1/2 partial scanning,Binning 1/4 partial scanning, Binning variable partial scanning
Vertical frequency (Frame rate) 15.28 (15fps) / 19.3 (19fps) Hz
Horizontal frequency 15.998 (15fps) / 20.57 (19fps) kHz
Pixel frequency 28.6363 (15fps) / 36.8181 (19fps) MHz
S/N ratio (standard deviation) 10 (Gain 0 dB)
Minimum scene illumination 1 Lux at F1.4
Sync. System Internal / External
Video output Digital 8 or 10 bit Camera Link (Base configuration)
Tap 1 Tap
Shutter Speed OFF, 1/2 to 1/100,000 sec. (Variable at every H and clock)
Gain 0 to 27 dB
Gamma 1.0
Input voltage DC12V ± 10%
Consumption Less than 2.5 W
Trigger mode Edge preset trigger (V-reset, Non-reset)
Pulse width trigger (V-reset, Non-reset)
Communication RS232 via Camera Link connector
Dimensions 28 (W) x 28 (H) x 46.5 (D) mm including lens mount and the connector
Optical filter No IR cut filter
Optical center accuracy Positional accuracy in H and V directions: +/- 0.31 mm
Rotational accuracy of H and V:+/- 2.1 deg.
Case Front, base and rear: Aluminum die cast (ADC12)
Cover: Steel sheet covered with zinc
CaseTripod Polycarbonate ABS
Lens mount C Mount
Interface connector HR10A-7R-6PB (Hirose) or equivalent
Tripod Tripod can be attached to 4 plates
(4 screws on the bottom plate, 3 screws on the other 3 plates)
Operational Temp Temperature: -5 to 45 deg. C, RH: 0 to 85% (No condensation)
Storage Temp Temperature: -30 to 65 deg. C, RH: 0 to 90% (No condensation)
Vibration 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, 3 directions 30 min. eachVertical
Shock Acceleration 70G, Half Amplitude 6ms, 3 Directions 3 Times each
Standard compliancy EMS: EN61000-6-2, EMI: EN55011 (Class B)
RoHS RoHS compliance
