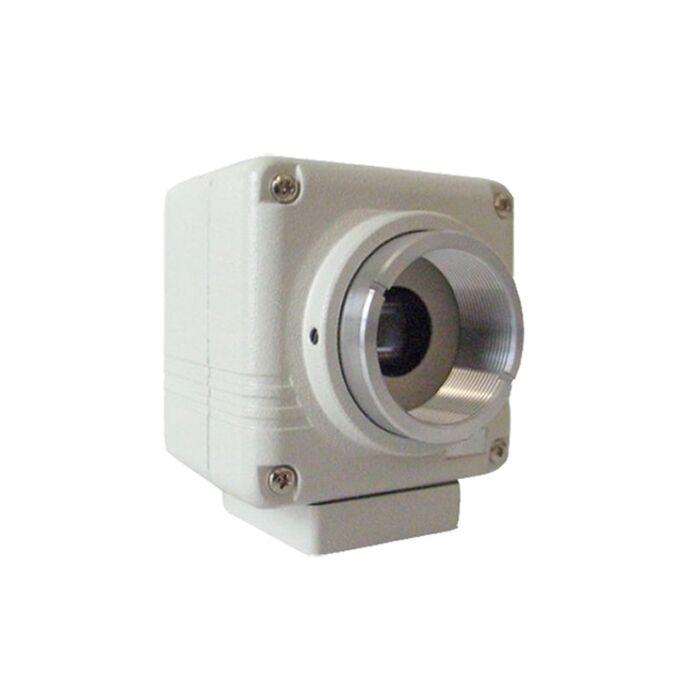

  • Sentech STC-C83USB-A Machine Vision Camera Progressive Scan Cased Cameras Image

Sentech STC-C83USB-A Machine Vision Camera Progressive Scan Cased Cameras

Quick Overview

1034 x 779 Effective Pixels, 1/3" Interline CCD, CS-Mount.
Overview

The STC-C83USB-A is a compact, progressive scan, XGA, USB camera with a 1/3" color CCD, featuring 29.18fps, image capture, digital zoom and a feature-rich user based menu set up and control. The STC-C83USB-A is available with a top or straight connection. Sentech SDK available as well as Direct X driver. Available in board and cased versions.

Features:

  • USB 2.0
  • 1/3” Progressive Scan
  • XGA
  • 0.45 or 1.0 Gamma (Variable Software Set)
  • Electronic or Fixed Shutter
  • AGC On/Off Selectable
  • Compact Size (2.04” x 2.04”)
  • Sentech SDK Available
  • Direct X Driver Available

  • Applications:

  • Machine Vision
  • Factory Automation
  • Inspection
  • Security
  • Specifications
     Image Sensor: 1/3" Color IT CCD
     Model Resolution: XGA
     Signal Format: Progressive
     Total Pixels: 1077 (H) x 788 (V)
     Effective Picture Element: 1034 (H) x 779 (V)
     Imaging Pixels: 1024 (H) x 768 (V) at Full Screen
    1024 (H) x344 (V) at 1/2 Partial Scan
    1024 (H) x 136 (V) at 1/4 Partial Scan
     Chip Size: 5.80 (H) x 4.92 (W) mm
     Cell Size: 4.65 (H) x 4.65 (V) µm
     Horizontal Drive Frequency: 24.5MHz (High/Mid/Low Speed Software Selectable)
     Scanning System: Progressive
     Scanning Method: Full Scan, 1/2 Partial Scan, 1/4 Partial Scan
     Maximum Frame Rate: Full Scan:
    High Speed:    29.18fps
    Middle Speed: 14.59fps
    Low Speed:    7.30fps
    1/2 Partial Scan:
    High Speed:    60.02fps
    Middle Speed: 30.01fps
    Low Speed:    15.01fps
    1/4 Partial Scan:
    High Speed:    120.35fps
    Middle Speed: 60.18fps
    Low Speed:    30.09fps

     Data Format: 8bit
     Sync System: Internal
     Minimum Illumination: 9.5 Lux @ F1.2
     Gamma: Manual (Software Selectable)
     White Balance: Auto/ Manual / One Shot (Software Selectable)
     Gain: Auto/ Manual (Software Selectable)
     Electronic Shutter: Auto (Electronic Iris) / Manual (Software Selectable)
     I/O Video Control: USB 2.0 High Speed
     Lens Mount : CS-Mount, C-Mount (with Adapter)Fixed Lens
     Power Supply: +5V via USB Cable
     Power Consumption: 350mA
     Operating Temperature:  -10°C ~ 45°C (14°F ~ 113°F)
     Storage Temperature:  -30°C ~ 60 °C (-22°F ~ 140°F)
     Weight: Board Version: 45g (1.59 oz.), Cased Version: 145g (5.11 oz.)
     Dimensions: Board Version (3 Boards): 45 (W) x 45 (H) mm (1.8" x 1.8" )
    Cased Version (w/Top Connector): 51 (W) x 51 (H) x 41.6 (D) mm
    (2.04" x 2.04" x 1.66")

    Cased Version (w/Straight Connector): 51 (W) x 51 (H) x 44.3 (D) mm
    (2.04" x 2.04" x 1.77")
