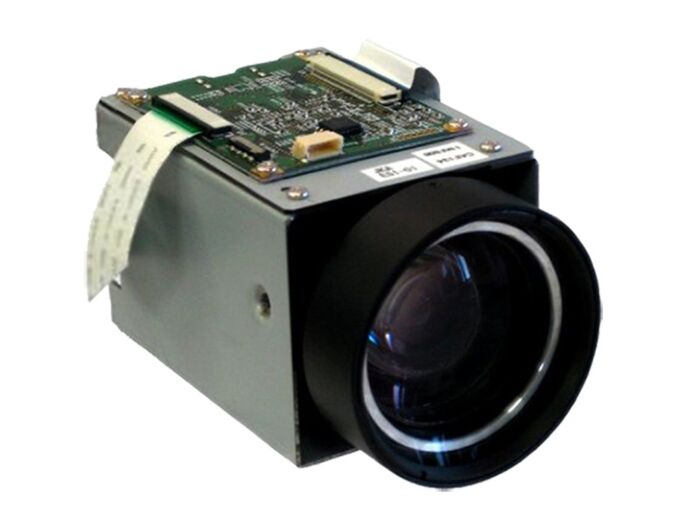

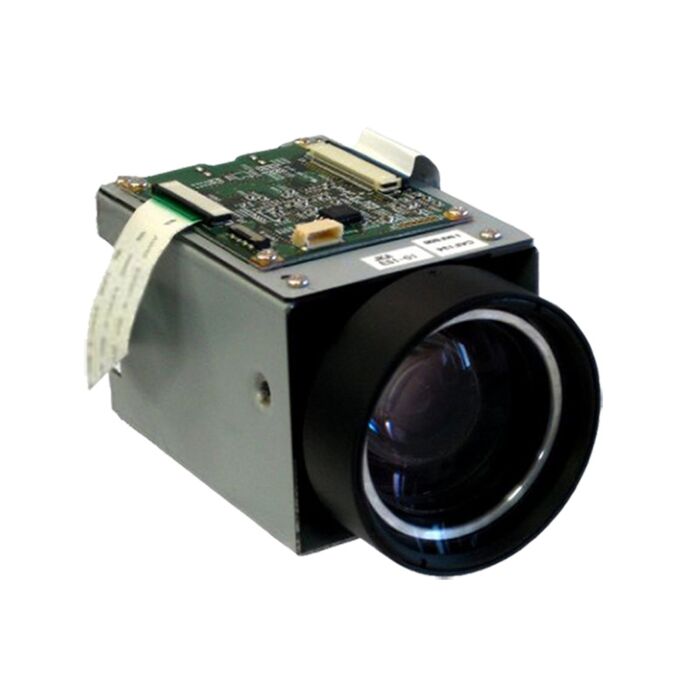

Sentech STC-AF134DV Auto Focus Block HD CMOS

Quick Overview

The STC-AF134DV is part of Sentech’s Auto Focus Block Camera line.
Overview

This low cost, high performance CMOS based camera outputs both DVI and LVDS signals. The DVI signal can go directly to any flat screen monitor that takes a DVI or HDMI input. The STC-AF134DV auto focus block camera outputs a 720p, 60 fps, 16x9 image. This product provides full on-board image processing for Low Vision Magnifier systems.

11x Optical Zoom
720p, High Definition Output
DVI-LVDS Video Output
Specifications

Name

Specifications

Model No
STC-AF134DV
Resolution
720p
Imager
1/4" SXGA CMOS: IMX076 (SONY)
Effective Picture Element
1392 (H) x 1076 (V)
Active Picture Element
1280 (H) x 720 (V)
Chip Size
6.05 (H) x 5.4 (V) mm
Cell Size
2.8 (H) x 2.8 (V)
Minimum Scene Illumination
Lux at wide-end limiter (F1.6) (AGC ON)
Sync System
Internal
Video Output
DVI 1.0 Conformity RGB, 1280 (H) x 720 (V), 60Hz/50Hz
ALC
Can be configured via UART communication with optical iris, auto electronic shutter and AGC
Shutter Speed
Shutter speed adjustable via UART communication, Default value: 1/100
- Extended
Available up to 0.5 seconds
- High Speed
Up to 1/100,000 seconds at 60 Hz or up to 1/83,333 seconds at 50 Hz
Gain
AGC or Fixed Gain selectable via UART communication
- AGC
0 to 18.3 dB
- Fixed Gain
0 to 18.3 dB
Digital Gain
Up to 5.9866 dB
Gamma
1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma; Gamma selectable via the UART communication
White Balance
Auto White Balance / Manual White Balance / Push-to-Set White Balance selectable via UART communication
Mirror Image
Horizontal and vertical flip are selectable via UART communication
Picture Modes
3 Picture Modes: Picture, Bright and Pseudo Color (including 30 pseudo color modes) Picture mode selectable via the UART communication
Line Generator
Both horizontal and vertical with all available colors; Thickness adjustable via the UART communication
Shadow Mask Generator
Horizontal and vertical with shading level adjustment via the UART communication
Motion Detection
ON / OFF selectable via the UART communication
Digital Zoom
x1 to x128 digital zoom; Digital pan and tilt available on still images
Freeze Image
Live or Freeze Image is selectable via UART communication; Digital pan and tilt is available on still images
Communication
UART communication via C304 (S4B-ZR-SM4A, JST) connector
Character Generator
Built-in character generator function via UART communication
Pixel Blemish Correction
Detects and corrects a maximum of 64 pixels
Optical Zoom
Manual zoom position control via UART communication
Focus
Auto Focus / Manual Focus / Push-to-Set Focus; Focus selectable via the UART communication
Iris
Auto Iris / Manual Iris / Push-to-Set Iris; IRIS control selectable via the UART communication
- Input Voltage
8 Vdc to 15 Vdc (Typically: 12 Vdc)
- Consumption
< 4.5 W
Dimensions
55.5 (W) x 48.5 (H) x 76 (D) mm
Auto Focus Lens
11x auto focus zoom lens (Tamron); Optical zoom range: from 5.2 mm to 58.8 mm; Aperture: F1.6 at f = 5.2 mm to F3.0 at f = 58.8 mm
Close-up Lens
Does not include close up lens
Optical Filter
IR cut filter ON; IR cut filter ON/OFF selectable via the UART communication
- Video Output (DVI)
Mini-HDMI connector / CN207, SSL00-10L3 (KEL)
- Video Output (LVDS)
CN204, SSL00-10L3 (KEL)
- HD/VD signal output
CN206, SM05B-SRSS (JST)
- Power Input
CN303, S2B-ZR-SM4A (JST)
- External Control
CN305, SM06B-SRSS (JST); 6-pin connector header for up to 9 external switch connectivity
- Communication
CN304, S4B-ZR-SM4A (JST)
Weight
Approximately 150g
Operating Temperature
0 to 45 deg. C
Storage Temperature
-30 to 65 deg. C
RoHS
RoHS Compliant
