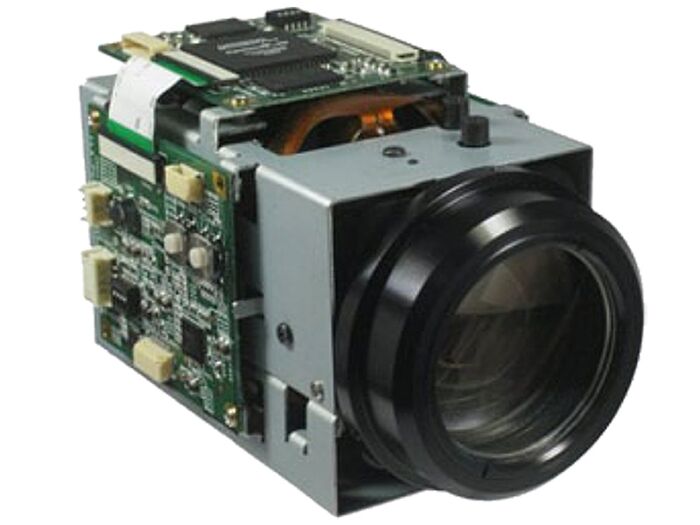

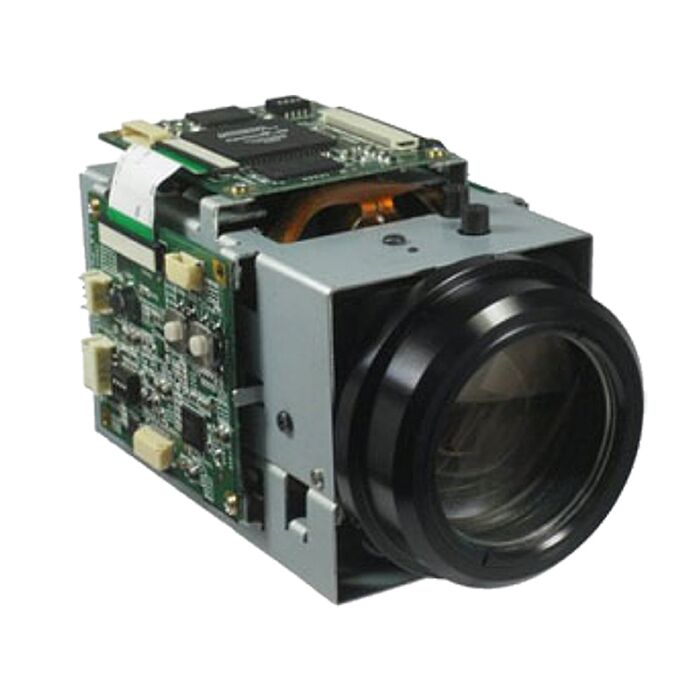

Sentech STC-AF133A 18x Zoom HD Block Camera

Quick Overview

1280 pixels x 720p, 1/3" CCD, 18x zoom, High Definition Block Camera. Available in Color


Video Output: Mini-HDMI connector

Min Illumination: 13 Lux at F1.6 (at zoom out position) at 50% IRE, AGC ON and 1/60 second shutter speed with IR cut filter

Availability: In stock

Additional Information

Overview

The STC-AF133A HD Auto Focus is the newest addition to Sentech’s Auto Focus Block camera line. It is our first High-Definition auto focus block camera, ideal for low vision systems, industrial and medical applications. This CCD based camera outputs a true HD 720p resolution, 16 x 9 image and has complete “on-camera” low vision processing.


  • 1/3" Image Sensor
  • 720p, High Definition Output
  • Does Not Include Close-up Lens



Specifications
STC-AF133A Specifications
Resolution 720p
Image Sensor ⅓” Interline SXGA CCD: ICX445AQA
Effective Picture Element 1296 (H) x 966 (V)
Active Picture Element 1280 (H) x 720 (V)
Chip Size (um) 6.26 (H) x 5.01 (V) mm
Cell Size (um) 3.75 (H) x 3.75 (V) μm
Minimum Scene Illumination 13 Lux at F1.6 (at zoom out position) at 50% IRE, AGC ON and 1/60 second shutter speed with IR cut filter
Sync System Internal
Video Output DVI 1.0 Conformity RGB, 1280 (H) x 720 (V), 60 Hz / 50 Hz
ALC Can be configured via the UART communication With optical iris, auto electronic shutter and AGC
Shutter Speed

Adjustable shutter speed via the UART communication
Extended - Available up to 0.5 seconds
High Speed - Up to 1/100,000 seconds at 60 Hz or up to 1/83,333 seconds at 50Hz

Gain

AGC or Fixed Gain selectable via the UART communication
AGC - 0 to 18.3 dB
Fixed Gain -0 to 18.3 dB

Digital Gain

Up to 5.9866 dB

Gamma 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma Selectable gamma via the UART communication
WhiteBalance Auto white balance / manual white balance / push-to-set white balance White balance selectable via the UART communication
Mirror Image Horizontal and vertical flip are selectable via UART communication
Picture Modes 3 picture modes: Picture, Bright and Pseudo Color (includes 30 pseudo colors) Picture mode selectable via the UART communication
Line Generator Both horizontal and vertical with all available colors Thickness adjustable via the UART communication
Shadow Mask Generator Horizontal and vertical w/ shading level adjustment via the UART communication
Motion Detection ON/OFF selectable via the UART communication
Digital Zoom x1 to x 128 digital zoom Digital pan and tilt is available on still images
Communication UART communication via C304 (S4B-ZR-SM4A, JST) connector
Freeze Image Live or freeze image is selectable via UART communication Digital pan and tilt is available on still images
Character Generator Built-in character generation function via the UART communication
Lens Control Function
Optical Zoom Manual zoom position control via UART communication
Focus Auto focus / manual focus / push set focus Focus mode selectable via the UART communication
Iris Auto iris / manual iris / push-set iris Selectable iris control mode via the UART communication
Power
Input Voltage 8Vdc to 15Vdc (Typically: 12Vdc)
Consumption < 5.2W
Dimensions 64 (W) x 60 (H) x 89.3 (D) mm
Auto Focus Lens 18x auto focus zoom lens (Tamron) Optical zoom range: from 4.7 mm to 84.6 mm Aperture: F1.6 at f = 4.7 mm to F2.8 at f = 84.6 mm
Close-up Lens Does not include close-up lens
Optical Filter IR cut filter on IR cut filter ON/OFF selectable via the UART communication
Interface Connector

Mini-HDMI connector
Video Output - CN303, S2B-ZR-SM4A (JST)
External Control - CN305, SM06B-SRSS (JST) 6-pin connector header for connectivity of up to nine external switches
Communication - CN304, S4B-ZR-SM4A (JST)

Weight Approximately 227 g

Temperature
Operational 0 to 45 C
Storage -30 to 65 C
Product Videos N/A

The STC-AF133A HD Auto Focus is the newest addition to Sentech’s Auto Focus Block camera line. It is our first High-Definition auto focus block camera, ideal for low vision systems, industrial and medical applications. This CCD based camera outputs a true HD 720p resolution, 16 x 9 image and has complete “on-camera” low vision processing.


  • 1/3" Image Sensor
  • 720p, High Definition Output
  • Does Not Include Close-up Lens



STC-AF133A Specifications
Resolution 720p
Image Sensor ⅓” Interline SXGA CCD: ICX445AQA
Effective Picture Element 1296 (H) x 966 (V)
Active Picture Element 1280 (H) x 720 (V)
Chip Size (um) 6.26 (H) x 5.01 (V) mm
Cell Size (um) 3.75 (H) x 3.75 (V) μm
Minimum Scene Illumination 13 Lux at F1.6 (at zoom out position) at 50% IRE, AGC ON and 1/60 second shutter speed with IR cut filter
Sync System Internal
Video Output DVI 1.0 Conformity RGB, 1280 (H) x 720 (V), 60 Hz / 50 Hz
ALC Can be configured via the UART communication With optical iris, auto electronic shutter and AGC
Shutter Speed

Adjustable shutter speed via the UART communication
Extended - Available up to 0.5 seconds
High Speed - Up to 1/100,000 seconds at 60 Hz or up to 1/83,333 seconds at 50Hz

Gain

AGC or Fixed Gain selectable via the UART communication
AGC - 0 to 18.3 dB
Fixed Gain -0 to 18.3 dB

Digital Gain

Up to 5.9866 dB

Gamma 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma Selectable gamma via the UART communication
WhiteBalance Auto white balance / manual white balance / push-to-set white balance White balance selectable via the UART communication
Mirror Image Horizontal and vertical flip are selectable via UART communication
Picture Modes 3 picture modes: Picture, Bright and Pseudo Color (includes 30 pseudo colors) Picture mode selectable via the UART communication
Line Generator Both horizontal and vertical with all available colors Thickness adjustable via the UART communication
Shadow Mask Generator Horizontal and vertical w/ shading level adjustment via the UART communication
Motion Detection ON/OFF selectable via the UART communication
Digital Zoom x1 to x 128 digital zoom Digital pan and tilt is available on still images
Communication UART communication via C304 (S4B-ZR-SM4A, JST) connector
Freeze Image Live or freeze image is selectable via UART communication Digital pan and tilt is available on still images
Character Generator Built-in character generation function via the UART communication
Lens Control Function
Optical Zoom Manual zoom position control via UART communication
Focus Auto focus / manual focus / push set focus Focus mode selectable via the UART communication
Iris Auto iris / manual iris / push-set iris Selectable iris control mode via the UART communication
Power
Input Voltage 8Vdc to 15Vdc (Typically: 12Vdc)
Consumption < 5.2W
Dimensions 64 (W) x 60 (H) x 89.3 (D) mm
Auto Focus Lens 18x auto focus zoom lens (Tamron) Optical zoom range: from 4.7 mm to 84.6 mm Aperture: F1.6 at f = 4.7 mm to F2.8 at f = 84.6 mm
Close-up Lens Does not include close-up lens
Optical Filter IR cut filter on IR cut filter ON/OFF selectable via the UART communication
Interface Connector

Mini-HDMI connector
Video Output - CN303, S2B-ZR-SM4A (JST)
External Control - CN305, SM06B-SRSS (JST) 6-pin connector header for connectivity of up to nine external switches
Communication - CN304, S4B-ZR-SM4A (JST)

Weight Approximately 227 g

Temperature
Operational 0 to 45 C
Storage -30 to 65 C
