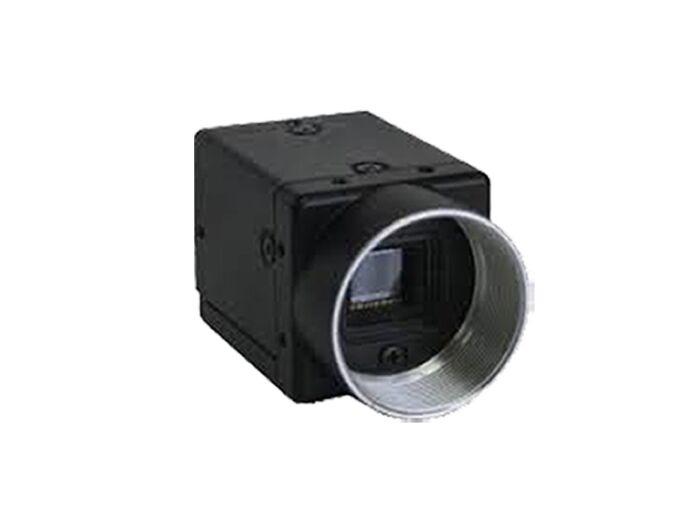

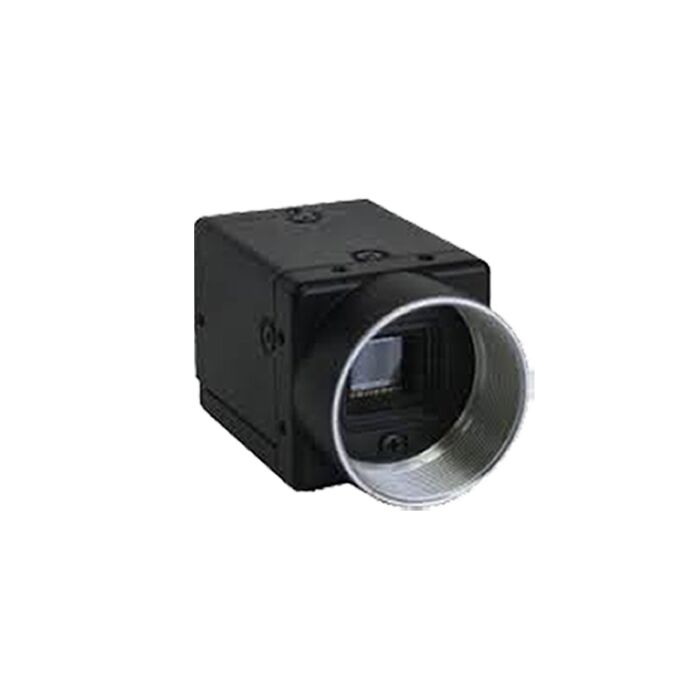

Omron STC-A152A Machine Vision Camera Progressive Scan Cased Cameras

1392 x 1040 Effective Pixels, 1/2” Interline SXGA Monochrome Progressive CCD, C-Mount.
SKU
STC-A152A

The STC-A152A is a 1/2" monochrome progressive scan cube camera with 1360 x 1024 resolution. This series features a SXGA sensor with a scan rate of 19fps, analog output and variable integration shutter trigger.

Features:

  • 1/2" SXGA Monochrome Progressive Scan CCD
  • Analog Output
  • Triggering and Partial Scan

  • Applications:

  • Machine Vision
  • Factory Automation
  • Industrial
  • Inspection
  • Image Sensor 1/2" interline SXGA monochrome progressive CCD: ICX205AL
    Total picture elements 1434 (H) x 1050 (V)
    Effective picture elements 1392 (H) x 1040 (V)
    SXGA: 1360 (H) x 1024 (V)
    Chip size 7.6 (H) x 6.2 (V)
    Cell size 4.65 (H) x 4.65 (V)
    Scanning system Progressive
    Scanning method Full scanning, Partial full scanning,
    1/2 partial scanning, 1/4 partial scanning,
    Variable partial scanning,
    Binning, Binning partial scanning,
    Binning 1/2 partial scanning,
    Binning 1/4 partial scanning,
    Binning variable partial scanning
    Vertical frequency (Frame rate) 15.28 (15fps) / 19.3 (19fps) Hz
    Horizontal frequency 15.998 (15fps) / 20.57 (19fps) kHz
    Pixel frequency 15.998 (15fps) / 20.57 (19fps) kHz
    S/N ratio (standard deviation) 56 dB (GAIN 0 dB)
    Minimum scene illumination 1 Lux at F1.4
    Sync. System Internal / External
    Video output 1.0 Vp-p / 75Ω, DC Coupling (0V)
    Tap -
    Shutter Speed

    Dip Switch: OFF, 1/200, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/8,000, 1/20,000 second
    Communication: OFF, 1/2 to 1/100,000 sec. (Variable at every H and clock)

    Gain 0 to 27 dB
    Gamma 1.0
    Input voltage DC12V ± 10%
    Consumption Less than 2.5 W
    Trigger mode Edge preset trigger (V-reset, Non-reset)
    Pulse width trigger (V-reset, Non-reset)
    Communication RS232 via Camera Link connector
    Dimensions 28 (W) x 28 (H) x 46.3 (D) mm including lens mount and the connector
    Optical filter No IR cut filter
    Optical center accuracy Position accuracy in H and V directions: +/- 0.31mm
    Rotation accuracy of H and V:+/- 2.1 deg.
    Tripod Tripod can be attached to 4 plates
    (4 screws on the bottom plate, 3 screws on the other 3 plates)
    Lens mount C Mount
    Tripod Tripod can be attached to 4 plates
    (4 screws on the bottom plate, 3 screws on the other 3 plates)
    Operational Temp Temperature: -5 to 50 deg. C, RH: 0 to 85% (No condensation)
    Storage Temp Temperature: -30 to 65 deg. C, RH: 0 to 90% (No condensation)
    Vibration 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, 3 directions 30 min. each
    Shock Acceleration 70G, half amplitude 6ms, 3 directions 3times each
    Standard compliancy EMS: EN61000-6-2, EMI: EN55011 (Class B)
    RoHS RoHS compliance
