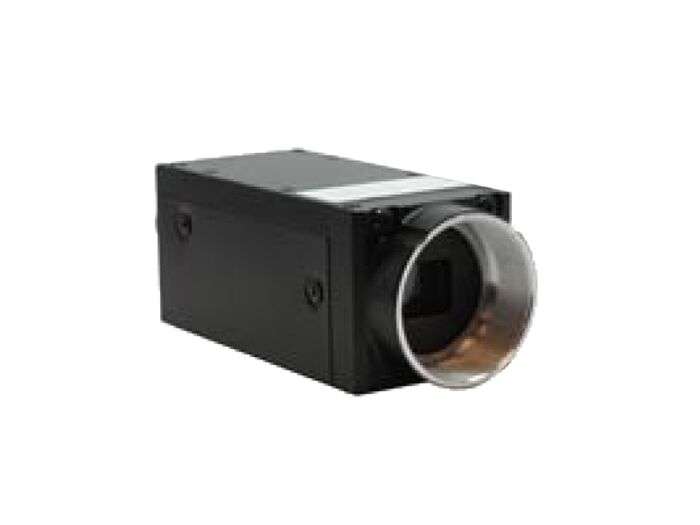

Sentech STC-400L Machine Vision Camera 2:1 Interlace Cased Cameras

Quick Overview

The STC-400L is a right angle Monochrome 1/2" CCD cased camera with selectable shutter speeds from 1/60th to 1/10,000th of a second. The STC-400OL features filed/frame integration, internal/external sync, integration HOLD feature, and Non-Interlace synchronization. Available in EIA and CCIR formats.

Availability: In stock

More Views

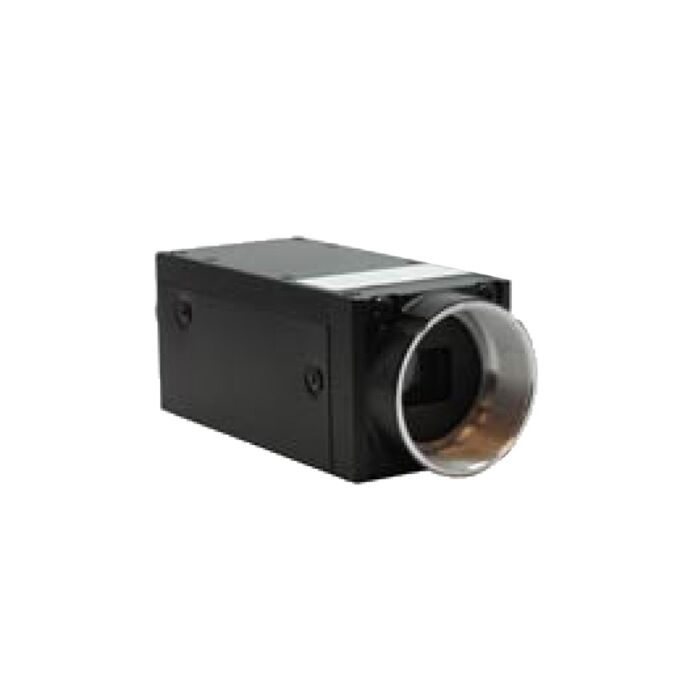

Sentech STC-400L Machine Vision Camera 2:1 Interlace Cased Cameras.

  • Model: /s/t/stc-400hol_1.jpg

Additional Information

Overview The STC-400L is a right angle Monochrome 1/2" CCD cased camera with selectable shutter speeds from 1/60th to 1/10,000th of a second. The STC-400OL features filed/frame integration, internal/external sync, integration HOLD feature, and Non-Interlace synchronization. Available in EIA and CCIR formats.
Specifications
 Specifications
 Image Sensor: STC- 400L (EIA): 1/2" Monochrome IT CCD
STC- 405L (CCIR): 1/2" Monochrome IT CCD
 Formats: EIA & CCIR
 Effective Picture Element: EIA: 768 (H) x 494 (V)
CCIR: 752 (H) x 582 (V)
 Scanning System: 2:1 Interlace/Non-Interlace (External Switch)
 Horizontal Resolution: 570 TV Lines
 Horizontal Frequency: 14.31818 kHZ
 Vertical Frequency: 15.734 Hz
 Vertical Resolution: Frame Charge: 485 TV Lines
Field Charge: 350 TV Lines
 Chip Size: 7.95 (H) x 6.45 (V)
 Scanning Area: 6.45 (H) x 4.84 (V) mm
 Optical Black: 43 Elements On Each Horizontal Line
14 Elements On Each Vertical Line
 Sync System: Internal or External (HD/VD) Automatically HOLD
 Minimum Illumination: 0.5 Lux @ F1.2, 50 IRE (AGC On)
 S/N Ratio: >56dB (AGC Off)
 Gamma: 0.45 or 1 Selectable
 Lens Mount : C-Mount
 White Balance: Auto or Manual
 Gain: Fixed/Manual (0-25dB) Selectable
 Electronic Iris: 1/60 (1/50) to 1/100,000 Second
 Electronic Shutter: 8 Steps to 1/10,000
 Charge Accumulation : Field/Frame Integration
 Clock Out: 14.31818MHz (Internal HD/VD)
 Video Out: VS 1.0Vp-p, 75W
 Power Supply: 12V DC
 Power Consumption: 180mA
 Operating Temperature:  -10°C ~ 45°C (14°F ~ 113°F)
 Storage Temperature:  -30°C ~ 60 °C (-22°F ~ 140°F)
 Weight: 100g (3.53 oz.)
 Dimensions: 31 (W) x 45 (H) x 86.5 (D) mm (1.24" x 1.16 " x3.46")
 Vibration Resistance: 7G (20Hz-220Hz)
Product Videos No
Accessories No
The STC-400L is a right angle Monochrome 1/2" CCD cased camera with selectable shutter speeds from 1/60th to 1/10,000th of a second. The STC-400OL features filed/frame integration, internal/external sync, integration HOLD feature, and Non-Interlace synchronization. Available in EIA and CCIR formats.
 Specifications
 Image Sensor: STC- 400L (EIA): 1/2" Monochrome IT CCD
STC- 405L (CCIR): 1/2" Monochrome IT CCD
 Formats: EIA & CCIR
 Effective Picture Element: EIA: 768 (H) x 494 (V)
CCIR: 752 (H) x 582 (V)
 Scanning System: 2:1 Interlace/Non-Interlace (External Switch)
 Horizontal Resolution: 570 TV Lines
 Horizontal Frequency: 14.31818 kHZ
 Vertical Frequency: 15.734 Hz
 Vertical Resolution: Frame Charge: 485 TV Lines
Field Charge: 350 TV Lines
 Chip Size: 7.95 (H) x 6.45 (V)
 Scanning Area: 6.45 (H) x 4.84 (V) mm
 Optical Black: 43 Elements On Each Horizontal Line
14 Elements On Each Vertical Line
 Sync System: Internal or External (HD/VD) Automatically HOLD
 Minimum Illumination: 0.5 Lux @ F1.2, 50 IRE (AGC On)
 S/N Ratio: >56dB (AGC Off)
 Gamma: 0.45 or 1 Selectable
 Lens Mount : C-Mount
 White Balance: Auto or Manual
 Gain: Fixed/Manual (0-25dB) Selectable
 Electronic Iris: 1/60 (1/50) to 1/100,000 Second
 Electronic Shutter: 8 Steps to 1/10,000
 Charge Accumulation : Field/Frame Integration
 Clock Out: 14.31818MHz (Internal HD/VD)
 Video Out: VS 1.0Vp-p, 75W
 Power Supply: 12V DC
 Power Consumption: 180mA
 Operating Temperature:  -10°C ~ 45°C (14°F ~ 113°F)
 Storage Temperature:  -30°C ~ 60 °C (-22°F ~ 140°F)
 Weight: 100g (3.53 oz.)
 Dimensions: 31 (W) x 45 (H) x 86.5 (D) mm (1.24" x 1.16 " x3.46")
 Vibration Resistance: 7G (20Hz-220Hz)
