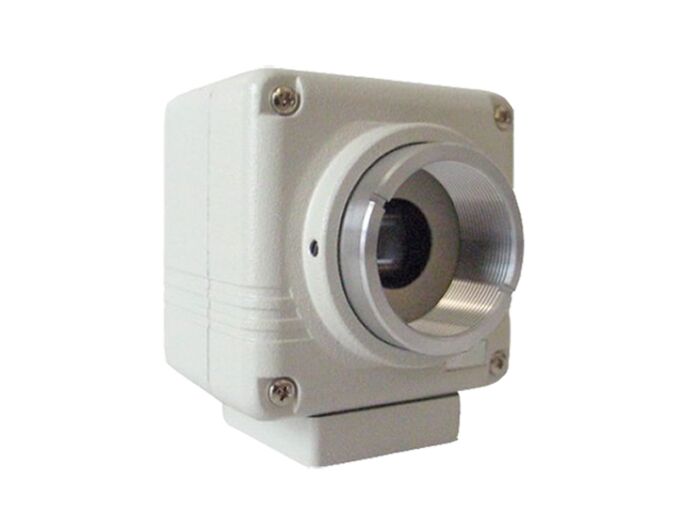

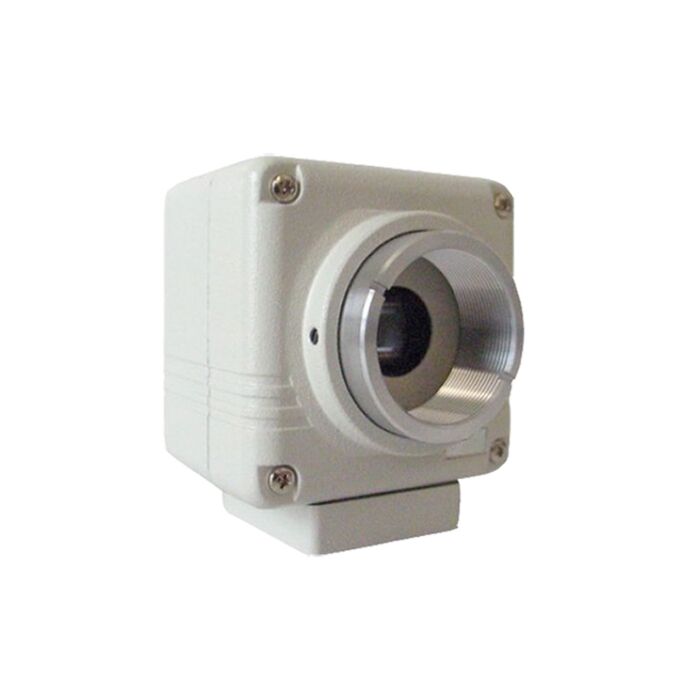

Omron STC-172BT Machine Vision Camera 2:1 Interlace Cased Cameras

The STC-172BT is an inexpensive, compact camera that can adapt to almost any application. Back panel features DC Auto Iris Lens Connector, Power Terminal, and BNC Connector Video Out. Available in EIA and CCIR formats.
SKU
STC-172BT
The STC-172BT is an inexpensive, compact camera that can adapt to almost any application. Back panel features DC Auto Iris Lens Connector, Power Terminal, and BNC Connector Video Out. Available in EIA and CCIR formats.
Image Sensor: STC-172BT (EIA): 1/2" Monochrome IT CCD
STC-177BT (CCIR): 1/2" Monochrome IT CCD
 Formats: EIA & CCIR
 Effective Picture Element: EIA: 768 (H) x 494 (V)
CCIR: 752 (H) x 582 (V)
 Scanning System: 2:1 Interlace
 Horizontal Resolution: 570 TV Lines
 Horizontal Frequency: 15.734 kHZ
 Vertical Frequency: 59.94 Hz
 Sync System: Internal or External (HD/VD) Auto Detect
 Minimum Illumination: 0.13 Lux @ F1.2, 50 IRE (AGC On)
 S/N Ratio: >56dB (AGC Off)
 Gamma: 0.45 or 1 Selectable
 Accumulation Mode: Frame/ Field Switchable
 White Balance: Auto or Manual
 Gain: On/Off Selectable
 Electronic Iris: 1/60 (1/50) to 1/100,000 Second
 Electronic Shutter: 1/60 to 1/10,000 Second
 Back Light: On/Off Selectable
 Video Out: VS 1.0Vp-p, 75W
 Power Supply: 12V DC
 Power Consumption: 110mA
 Operating Temperature:  -10°C ~ 45°C (14°F ~ 113°F)
 Storage Temperature:  -30°C ~ 60 °C (-22°F ~ 140°F)
 Weight: 180g (6.35 oz.)
 Dimensions: 51 (W) x 51 (H) x55.5 (D) mm (2.04" x 2.04 " x 2.22")
