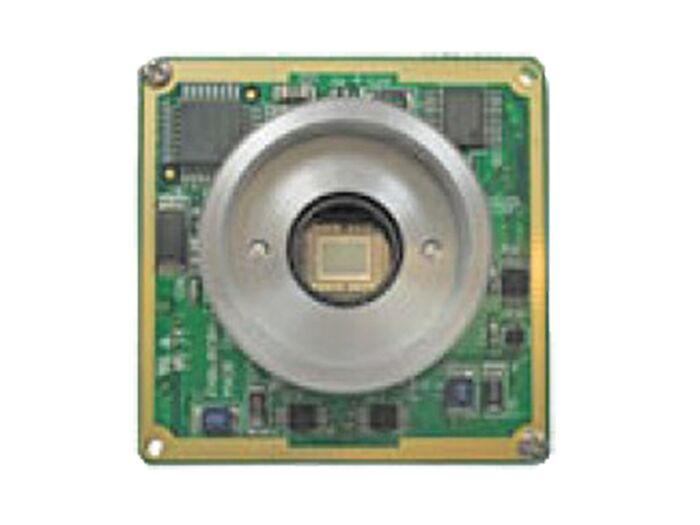

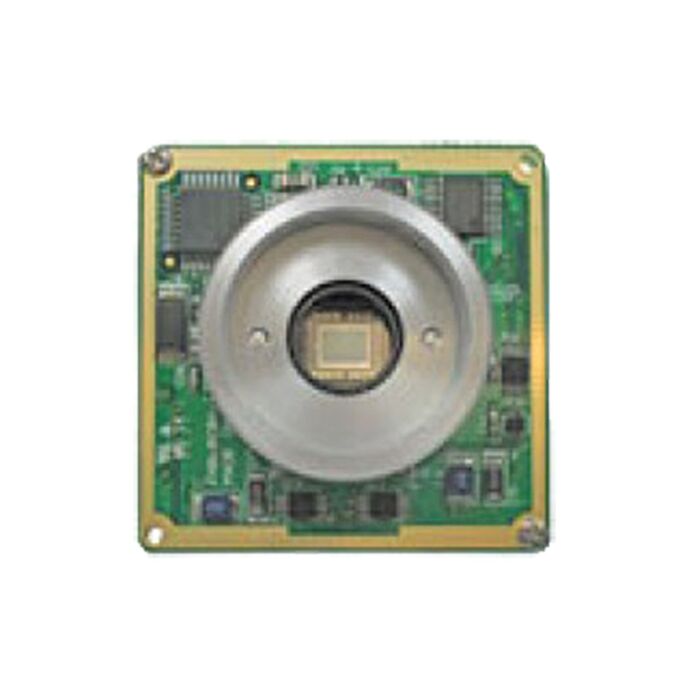

  • Sentech STC-172 Series Machine Vision Camera Image

Sentech STC-172 Series Machine Vision Camera

Quick Overview

The STC-172 series is a 1/2" high resolution CCD machine vision camera. The STC-172 offers a integration HOLD feature for special applications. Also, the STC-172 offers frame/field integration, Internal/External (HD/VD) sync and Interlace or Non-Interlace output based on external sync. Available in EIA and CCIR formats.
Overview

The STC-172 series is a 1/2" high resolution CCD machine vision camera. The STC-172 offers a integration HOLD feature for special applications. Also, the STC-172 offers frame/field integration, Internal/External (HD/VD) sync and Interlace or Non-Interlace output based on external sync. Available in EIA and CCIR formats.

Specifications
Image Sensor: STC-172 (EIA): 1/2" Monochrome IT CCD
STC-177 (CCIR): 1/2" Monochrome IT CCD
 Formats: EIA & CCIR
 Effective Picture Element: EIA: 768 (H) x 494 (V)
CCIR: 752 (H) x 582 (V)
 Scanning System: 2:1 Interlace
 Horizontal Resolution: 570 TV Lines
 Vertical Resolution: Field: 350 TV Lines (EIA) - 410 TV Lines (CCIR)
Frame: 485 TV Lines (EIA) - 575 TV Lines (CCIR
 Horizontal Frequency: 15.734 kHZ
 Vertical Frequency: 59.94 Hz
 Sync System: Internal or External (HD/VD) Auto Detect
 Minimum Illumination: 0.13 Lux @ F1.2, 50 IRE (AGC On)
  * The STC-172 Series is also available in a High Sensitivity version STC-172 High Sensitivity Camera
 S/N Ratio: >56dB (AGC Off)
 Gamma: 0.45 or 1 Selectable
 Accumulation Mode: Frame/ Field Switchable
 White Balance: Auto or Manual
 Gain: On/Off Selectable
 Electronic Shutter: Field: 1/60(1/50), 1/100 (1/120) , 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000
Frame: 1/30 (1/25), 1/60 (1/50), 1/100 (1/120), 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000
 Back Light: On/Off Selectable
 Video Out: VS 1.0Vp-p, 75W
 Power Supply: 12V DC
 Power Consumption: 110mA
 Operating Temperature:  -10°C ~ 45°C (14°F ~ 113°F)
 Storage Temperature:  -30°C ~ 60 °C (-22°F ~ 140°F)
 Lens Mount: C Mount
 Weight: 45g (1.58 oz.)
 Dimensions: 45 (W) x 45 (H) x 26 (D) mm (1.8" x 1.8" x 1.04")
