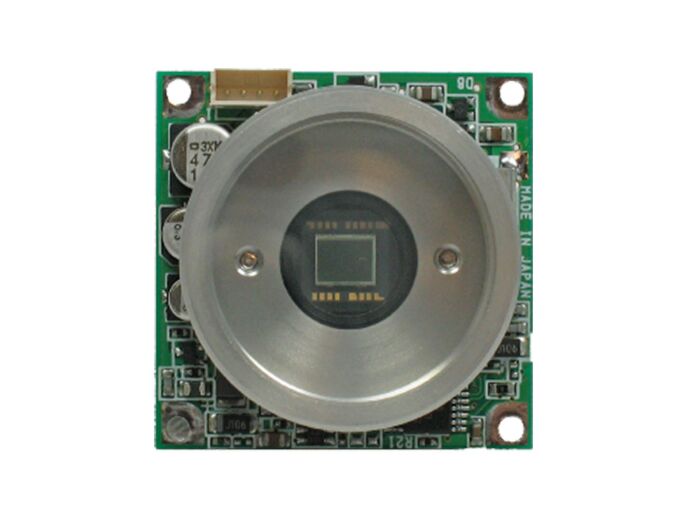

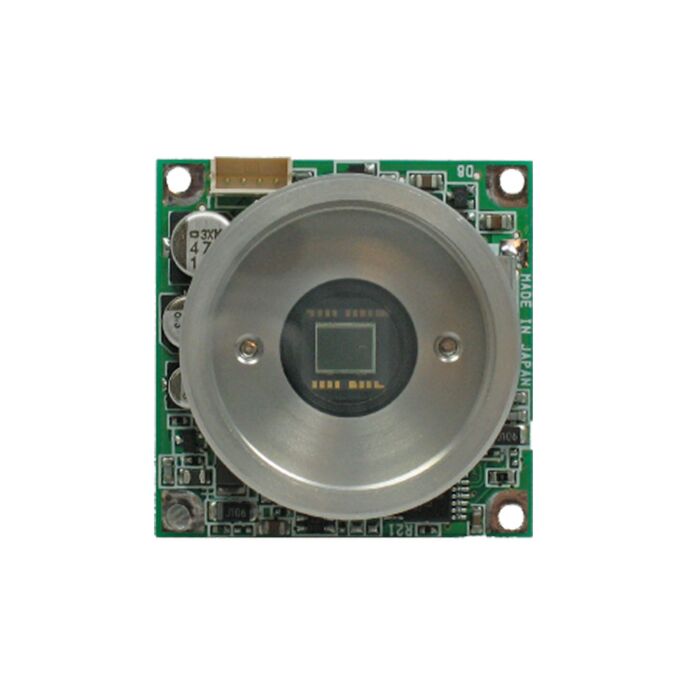

  • Sentech STC-130 Machine Vision Camera 2:1 Interlace Board Cameras Image

Sentech STC-130 Machine Vision Camera 2:1 Interlace Board Cameras

Quick Overview

The STC-130 series is an inexpensive, compact camera that can adapt to almost any standard resolution industrial application. This 1/3" standard resolution machine vision monochrome camera series comes in board level and cased version.
Overview

The STC-130 series is an inexpensive, compact camera that can adapt to almost any standard resolution industrial application. This 1/3" standard resolution machine vision monochrome camera series comes in board level and cased version.

Specifications
Specifications
 Image Sensor: STC-130 (EIA): 1/3" Monochrome IT CCD
STC-135 (CCIR): 1/3" Monochrome IT CCD
 Formats: EIA & CCIR
 Effective Picture Element: EIA: 510 (H) x 492 (V)
CCIR: 500 (H) x 492 (V)
 Horizontal Resolution: 380 TV Lines
 Horizontal Frequency: 15.734 kHZ
 Vertical Frequency: 59.94 Hz
 Sync System: Internal
 Minimum Illumination: 0.05 Lux @ F1.2, 50 IRE (AGC On)
 S/N Ratio: >48dB (AGC Off)
 Gamma: 0.6
 White Balance: Auto or Manual
 Gain: On (0-20dB)
 Electronic Iris: Auto Shutter 1/60 (1/50) to 1/100,000 Second
 Fixed Shutter: 1/60
 Video Out: VS 1.0Vp-p, 75W
 Power Supply: 12V DC
 Power Consumption: 100mA
 Operating Temperature:  -10°C ~ 45°C (14°F ~ 113°F)
 Storage Temperature:  -30°C ~ 60 °C (-22°F ~ 140°F)
 Weight: 15g (.53 oz.)
 Dimensions: 35 (W) x 35 (H) x variable (D) mm (1.4" x 1.4" x variable)
