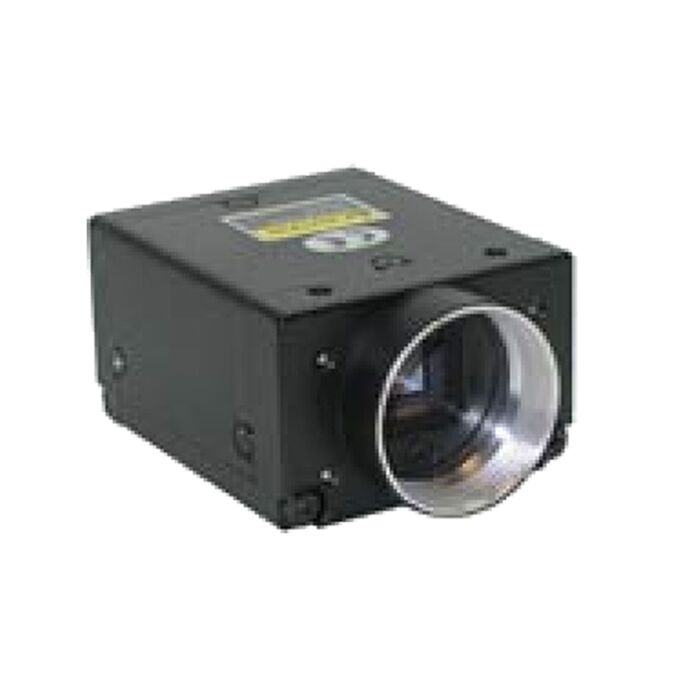

  • Sentech Machine Vision Cameras STC-CL1500 Machine Vision Camera Progressive Scan Cased Cameras Image

Sentech Machine Vision Cameras STC-CL1500 Machine Vision Camera Progressive Scan Cased Cameras

Quick Overview

The STC-CL1500 is a 1/2" mega pixel monochrome camera with digital Camera Link® output, as well as simultaneous analog video out. The camera produces a 1360 x 1024 resolution image.
Overview The STC-CL1500 is a 1/2" mega pixel monochrome camera with digital Camera Link® output, as well as simultaneous analog video out. The camera produces a 1360 x 1024 resolution image.
Specifications
Image Sensor 1/2" Monochrome IT CCD
Signal Format Progressive
Effective Picture Element 1392 (H) x 1040 (V)
Active Picture Element 1360 (H) x 1024 (V)
Chip Size 7.60 (H) x 6.20 (V) mm
Cell Size 4.65 (H) x 4.65 (V) µm
Scanning Area 6.47 (H) x 4.84 (V) mm
Horizontal Drive Frequency 14.318MHz (Normal Speed)
28.636MHz (Double Speed
Horizontal Frequency 7.999KHz (Normal Speed)
15.997KHz (Double Speed)
Vertical Frequency

7.49Hz (Normal Speed)
14.98Hz (Double Speed)

Minimum Illumination 0.3 Lux @ F1.2
Sync System Internal/External Switchable, Auto Switching
External Sync Signal HD/VD 3-5Vp-p, 75W termintaion with (On/Off Switch)
Internal Sync Signal HD/VD 2-5Vp-p, 75W termintaion with (On/Off Switch)
Scanning System Progressive Scan
S/N Ratio >50dB
Gamma 1
Lens Mount C Mount
Gain Manual/Fixed Gain, AGC
Electronic Shutter Normal Speed: 1/7.5 to 1/5000
Double Speed: 1/15 to 1/10000
Trigger Shutter Pulse width Trigger (3~1/10,000 Second)
Edge Preset Trigger (10 Steps)
Video Output Analog: 1Vp-p at 75W termination
Digital: 10bit Camera Link®
Power Supply 12V DC
Power Consumption 320mA
Operating Temperature  -10°C ~ 45°C (14°F ~ 113°F)
Storage Temperature  -30°C ~ 60 °C (-22°F ~ 140°F)
Weight 113g (3.98 oz.)
Dimensions 44 (W) x 29 (H) x 90 (D) mm (1.76" x 1.16" x 3.6 ")
