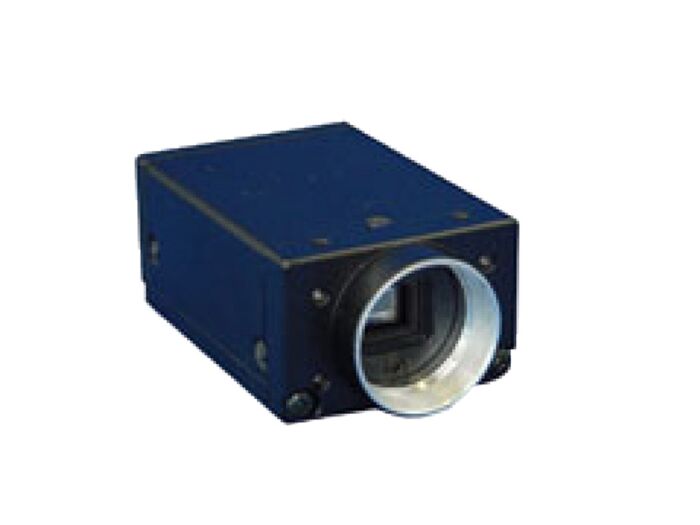

Sentech Machine Vision Cameras STC-CL1140 Machine Vision Camera

Quick Overview

The STC-CL1140 is a Quad Speed VGA digital Camera Link® camera with 1/3" Monochrome CCD, featuring 120fps, partial scanning, and full trigger functionality.

Availability: In stock

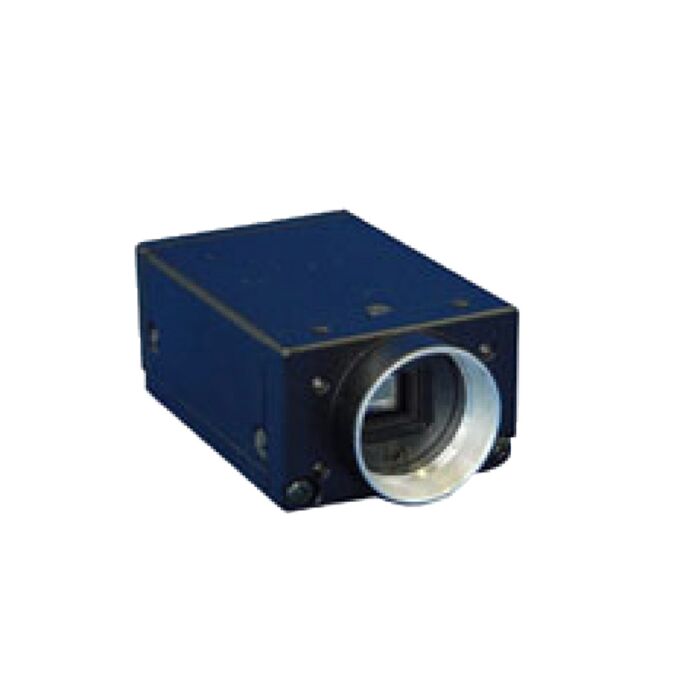

More Views

Additional Information

Overview The STC-CL1140 is a Quad Speed VGA digital Camera Link® camera with 1/3" Monochrome CCD, featuring 120fps, partial scanning, and full trigger functionality.
Specifications
 Specifications
 Image Sensor: 1/3" Monochrome IT CCD
 Signal Format: Progressive
 Effective Picture Element: 648 (H) x 488 (V)
 Active Picture Element: 640 (H) x 480 (V)
 Chip Size: 5.87 (H) x 4.71 (V) mm
 Cell Size: 7.4 (H) x 7.4 (V) µm
 Scanning Area: 4.80 (H) x 3.61 (V) mm
 Horizontal Drive Frequency: 50.88MHz
 Horizontal Frequency: 60.00KHz
 Vertical Frequency: 119.99Hz
 Minimum Illumination: 3 Lux @ F1.2
 Sync System: Internal/External (HD/VD) Automatically
 Scanning System: Progressive Scan/Partial Scan (H, V Center)
 S/N Ratio: 50dB (Gain 0dB)
 Gamma: 1
 Lens Mount: C Mount
 Gain: Manual/Fixed Gain
 Electronic Shutter: 1/120 ~ 1/20,000 (8 Steps)
 Trigger Shutter: Pulse Variable Integration Shutter Trigger (3~1/100,000 Second)
Edge Preset Trigger (8 Steps)
 Video Output: Digital: 10bit Camera Link®
 Power Supply: 12V DC
 Power Consumption: 300mA
 Performance Temperature: 0°C ~ +40°C (-32° F ~ + 104°F)
 Operating Temperature:  -10°C ~ 45°C (14°F ~ 113°F)
 Storage Temperature:  -30°C ~ 60 °C (-22°F ~ 140°F)
 Weight: 113g (3.98 oz.)
 Dimensions: 44 (W) x 29 (H) x 60 (D) mm (1.76" x 1.16" x 2.4 ")
