Omron FS-C2KU7DCL (FSC2KU7DCL) Line Scan CL CMOS, 2K, Color, Cased Camera

Sentech | FS-C4KU7DCL | Line Scan Cameras Image #1

Omron FS-C4KU7DCL (FSC4UK7DCL) Line Scan CL CMOS, 4K, Color, Cased Camera

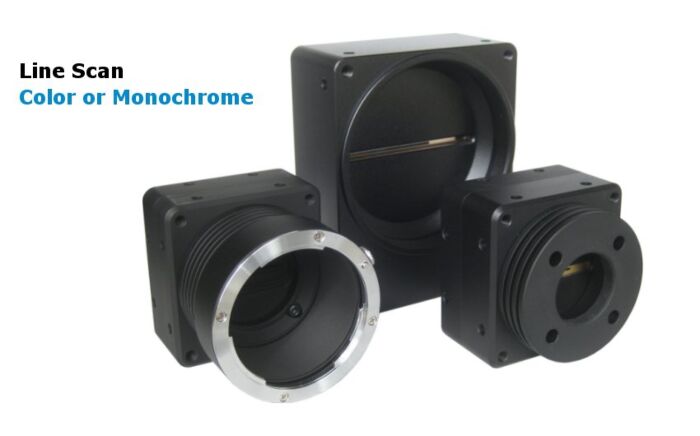

Omron FS-C2KU7DCLU (FSC2KU7DCLU) 2MP Color Line Scan CL Camera (CMOS Sensor: DR-2X2K-7 - AWAIBA)

The Sentech FS-C2KU7DCLU is a 2MP CMOS Line Scan camera (CMOS Sensor: DR-2X2K-7 - AWAIBA)
SKU
Sentech FS-C2KU7DCLU Color Line Scanning Camera Link Camera

The FS-C2KU7DCLU is a 2MP Color Line Scan Camera available with an F, C Mount.


Features:

  • 2,048 Mega-Pixels
  • Camera Link Medium/Base configuration
  • Anti-blooming
  • High-speed exposure control
  • External trigger control
  • Flat Field Correction(FFC)
  •
    Applications:

  • Machine Vision
  • Factory Automation
  • Industrial Inspection
  • Model FS-C2KU7DCLU
    Sensor 2k CMOS image sensor DR-2X2K-7-inver-RGB(AW AIBA)
    Active pixels 2,048 pixels x 2lines(Bayer)
    Pixel Size 14.336 mm
    data rate 85MHz x3tap(RGB) 80MHz x3tap(RGB) 50MHz x3tap(RGB) *Note1
    Maximum line rate 80kHz (85MHz x3tap(RGB)) 75kHz (80MHz x3tap(RGB)) 46kHz (50MHz x3tap(RGB))
    Video output Camera Link Medium/Base configuration (8bit/10bit/12bit)
    Power Input Voltage +12 Vdc to +24 Vdc
    Consumption 6.0 W(typ)
    Communication RS232C via Camera Link connector
    Functions Anti-blooming High speed exposure control External trigger control Flat Field Correction(FFC)
    Dimensions 56(W) x 58(H) x 26.5(D) mm
    Lens mount F, C
    Weight about 198g
    Interface Connectors Camera Link connector (MDR) x2 Power connector (6pin connector)
    Operations Temperature 0 to 40 deg. C
