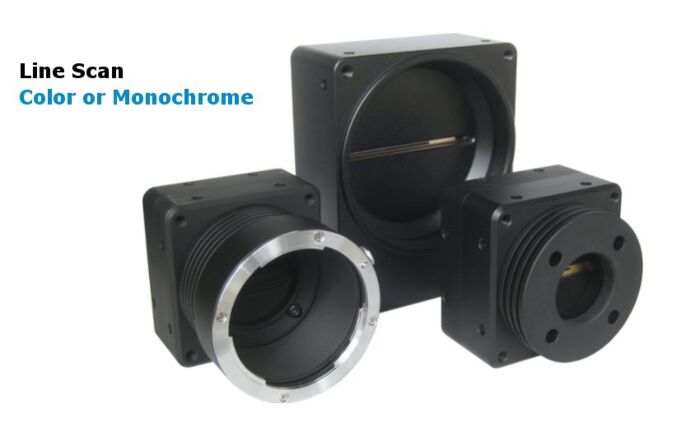

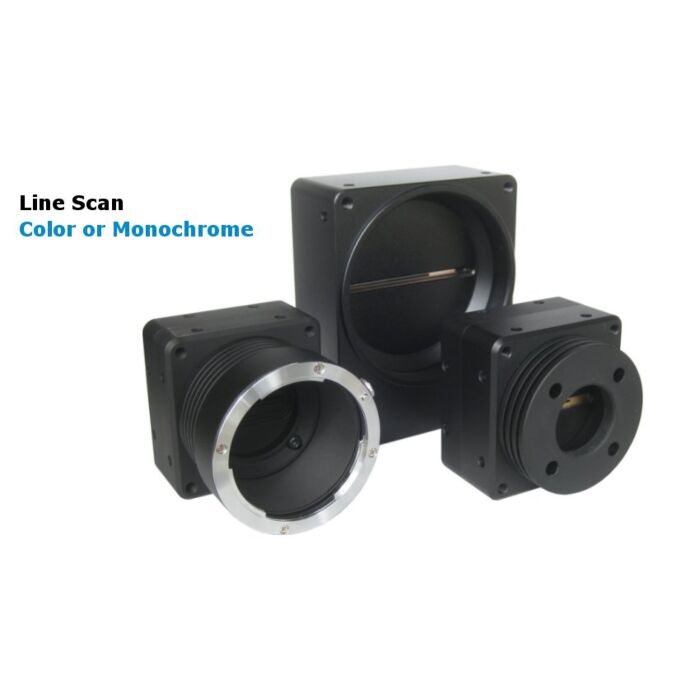

Omron FS-B8KU35CLU (FSB8KU35CLU) 8MP Monochrome Line Scan CL Camera (CMOS Sensor: DR-4K-3.5 - AWAIBA)

The FS-B8KU35CLU is 8MP monochrome Line Scanning Camera Link Camera with High-speed exposure control, External trigger. (CMOS Sensor: DR-4K-3.5 - AWAIBA)
SKU
FS-B8KU35CLU-F-Sentech EOL

Sentech's FS-B8KU35CLU includes Camera Link Output and more.


Features:

  • AWAIBA Sensor
  • 8 mega-pixels
  • Pixel Size 7(H) x 7(V) µm (7 µm pitch)
  • F, C Mount
  •
    Applications:

  • Machine Vision
  • Factory Automation
  • Industrial Inspection
  • Model FS-B8KU35CLU
    Image Sensor 8k CMOS image sensor DR-4K-3.5 (AWAIBA)
    Pixel Size 3.5(H) x 3.5(V) µm (3.5 µm pitch)
    Photo array length 28.672 mm
    Data rate 85MHz x 8TAP
    Video output Camera Link Full configuration (8bit) Medium/Base configuration (8bit/10bit/12bit)
    Power Input +12 Vdc to +24 Vdc
    Power Consumption 4.3 W(TYP)
    Communication RS232 via Camera Link connector
    Function High speed exposure control External trigger control Flat Field Correction(FFC) FieldUpdate
    Fill Factor 100%
    Dimensions 80(W) x 100(H) x 38.1(D) mm (excluding the connector)
    Lens mount F mount
    Weight about 250g
    Interface connectors Camera Link connector (MDR) x1 Power connector (6pin connector)
    ROHS RoHS compliance
    Operating Temp. 0 to 40 deg. C
    Storage Temp. -30 to 65 deg. C
