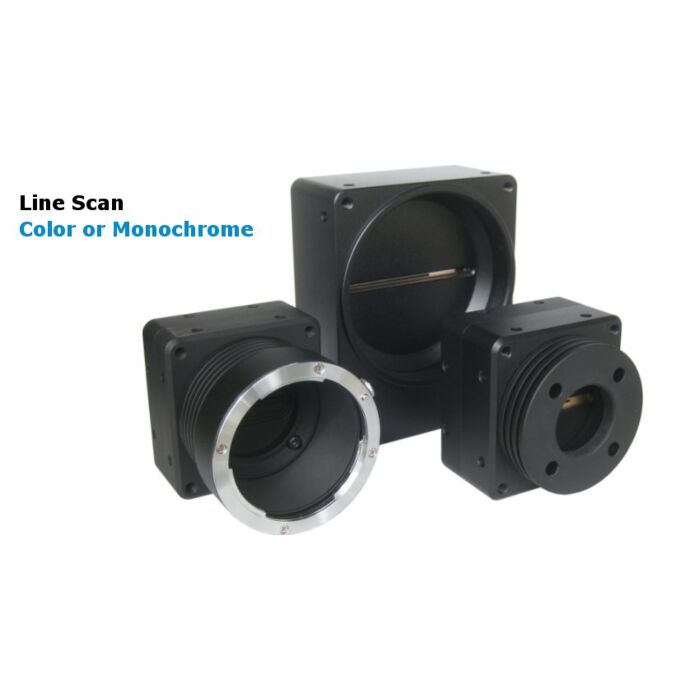

Omron FS-B2KU7CLU (FSB2KU7CLU) 2MP Monochrome Line Scan CL Camera (CMOS Sensor: DR-2K-7 - AWAIBA)
The FS-B2KU7CLU is 2MP monochrome Line Scanning Camera Link Camera with High-speed exposure control, External trigger control, Flat Field Correction(FFC). (CMOS Sensor: DR-2K-7 - AWAIBA)
SKU
FS-B2KU7CLU-F
Sentech's FS-B2KU7CLU includes Camera Link Output, and more.
Features:
Applications:
| Model | FS-B2KU7CLU |
| Image Sensor | 2k CMOS image sensor DR-2K-7 AWAIBA |
| Pixel Size | 7(H) x 7(V) µm (7 µm pitch) |
| Photo array length | 14.336 mm |
| Data rate | 85MHz x 2TAP |
| Video output | Camera Link Base configuration (8bit/10bit/12bit) |
| Power Input | +12 Vdc to +24 Vdc |
| Power Consumption | 2.8W(TYP) |
| Communication | RS232 via Camera Link connector |
| Function | High speed exposure control External trigger control Flat Field Correction(FFC) FieldUpdate |
| Fill Factor | 100% |
| Dimensions | 80(W) x 58(H) x 26.5(D) mm (excluding the connector) |
| Lens mount | F, C |
| Weight | about 250g |
| Interface connectors | Camera Link connector (MDR) x1 Power connector (6pin connector) |
| ROHS | RoHS compliance |
| Operating Temp. | 0 to 40 deg. C |
| Storage Temp. | -30 to 65 deg. C |
