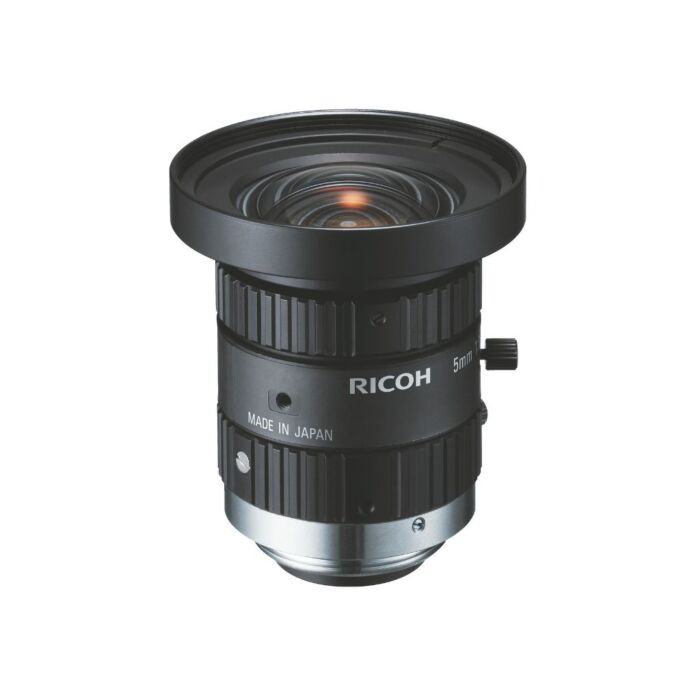

RICOH FL-HC0514-2M 1/2" (5 mm) Manual Iris Lens

Quick Overview

RICOH FL-HC0514-2M 1/2" 5MM F1.4 Manual Iris C-Mount Lens, 2 Megapixel
Overview

The RICOH FL-HC0514-2M is a 1/2", 2 Megapixel, C-Mount Lens, with locking screws.



Features:



  • High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
  • Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
  • With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use
  • They greatly reduce distortion that causes problems in image measurement and recognition
  • Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features
  •


    Applications:



  • Manufacturing Inspection
  • Machine Vision
  • Microscopy
  • Specifications
    Format Size 1/2", 1/3" format
    Focal Length 5 mm
    Max. Aperture Ratio 1:1.4
    Iris Range 1.4-16
    Mount C
    Horizontal Angle of View 1/3" Format 51.4°
    Horizontal Angle of View 1/2" Format 65.5°
    Horizontal Angle of View 1 1/8" Format -
    Horizontal Angle of View 2/3" Format -
    Min. Object Distance 0.1 m
    Back Focal Length 10.8 mm
    Filter Size 43.0 P=0.75 mm
    Dimensions φ44.5×45.5 mm
    Weight 102 g
    Comments Focus & Iris lock screws
