  • RICOH FL-CC5024A-2M

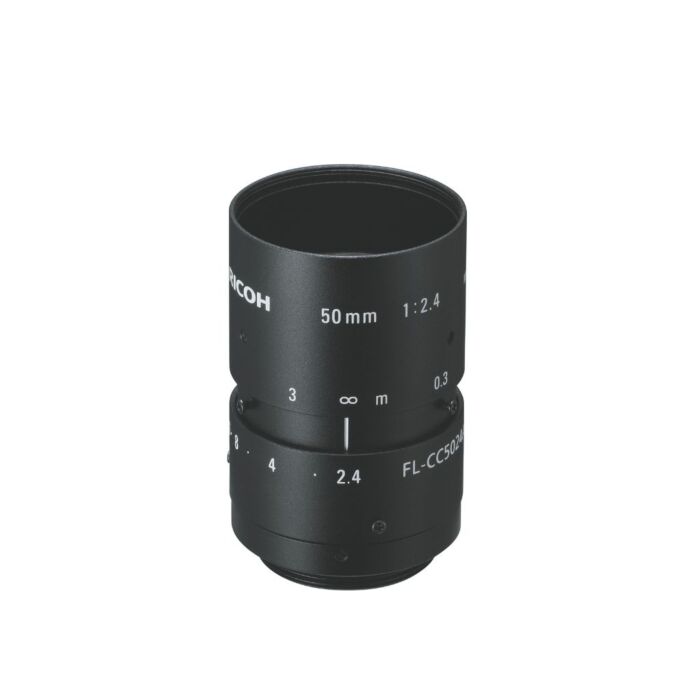

RICOH FL-CC5024A-2M 2/3" (50mm) Manual Iris Lens

Quick Overview

RICOH FL-CC5024A-2M 2/3" 50.0MM F2.4 Manual Iris C-Mount 2 Megapixel Rated Lens
Overview

The RICOH FL-CC5024A-2M is a 2/3" Manual Iris Lens built for high-precision manufacturing.



Features:



  • High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
  • Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
  • With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use
  • They greatly reduce distortion that causes problems in image measurement and recognition
  • Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features
  •


    Applications:



  • High-Precision Manufacturing
  • Inspection (chip mounters, wafers, electronic substrates)
  • Machine Vision
  • Specifications
    Format Size 2/3"
    Focal Length 50 mm
    Maximum aperture ratio 1:2.4
    Iris Range  2.4-22
    Mount C
    Horizontal Angle of View 1/3" Format 5.6°
    Horizontal Angle of View 1/2" Format 7.5°
    Horizontal Angle of View 1 1/8" Format 8.4°
    Horizontal Angle of View 2/3" Format 10.3°
    Min. Object Distance 0.3 m
    Back Focal Length 22.3 mm
    Filter Size 30.5 P=0.5 mm
    Dimensions φ32.0×46.5 mm
    Weight 66 g
    Comments Focus & Iris lock screws
