  • RICOH FL-CC0814-5M Image 1

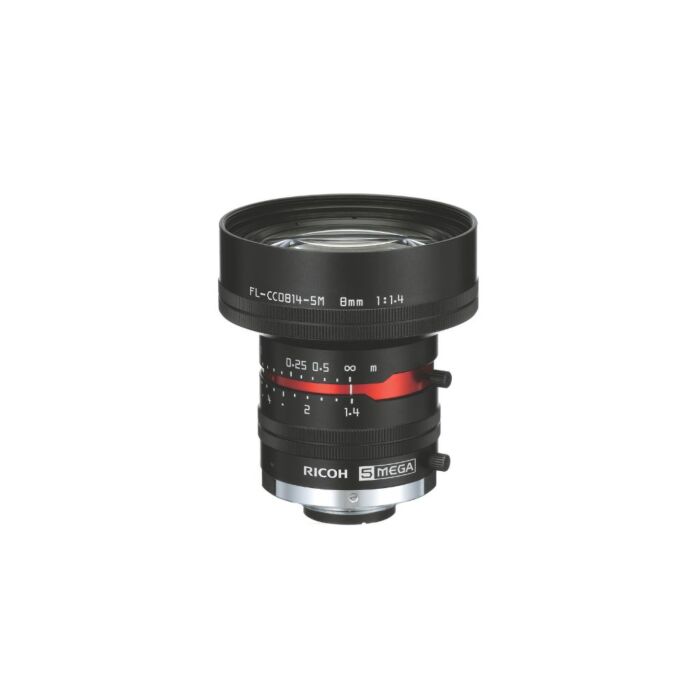

RICOH FL-CC0814-5M 2/3" (8 mm) Manual Iris Lens

Quick Overview

RICOH FL-CC0814-5M 2/3" 8MM F1.4 Manual Iris C-Mount Lens, 5-Megapixel
Overview

The RICOH FL-CC0814-5M is a 2/3" 8MM F1.4 Manual Iris C-Mount Lens.



Features:



  • High resolution and high contrast
  • Φ43 mm compact design
  • Extremely small level of optical distortion
  • Bright to the periphery
  •


    Applications:



  • High Definition from edge to edge
  • Wafers Inspection
  • Chip Mounters
  • Board Mounting
  • Machine Vision
  • Specifications
    Format Size 2/3"
    Focal Length 8 mm
    Maximum aperture ratio 1:1.4
    Iris Range  1.4-16
    Mount C
    Horizontal Angle of View 1/3" Format 32.9°
    Horizontal Angle of View 1/2" Format 43.2°
    Horizontal Angle of View 1 1/8" Format 48.2°
    Horizontal Angle of View 2/3" Format 57.8°
    Min. Object Distance 0.1 m
    Back Focal Length 11.5 mm
    Filter Size 58 P=0.75 mm
    Dimensions φ60.8×64 mm
    Weight 260 g
    Comments Focus & Iris lock screws
