  • RICOH FL-BC7528-9M Image 1

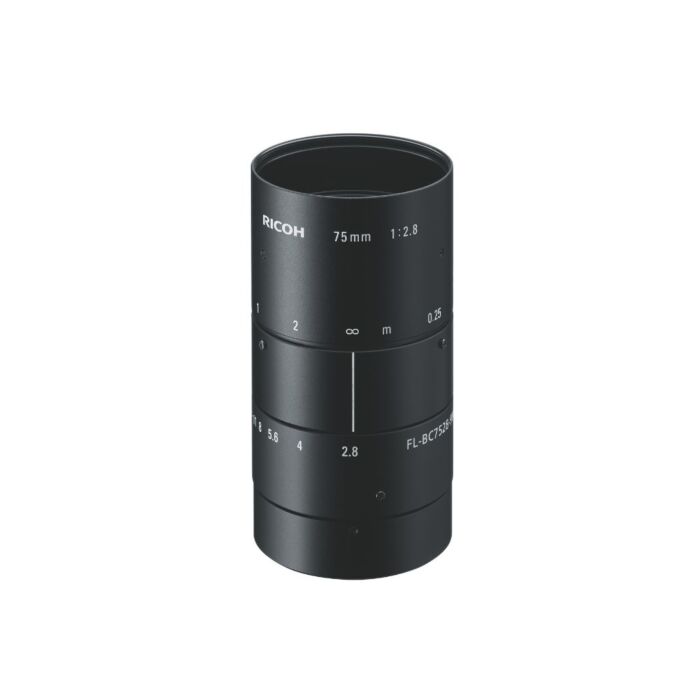

RICOH FL-BC7528-9M 1" (75 mm) Manual Iris Lens

Quick Overview

RICOH FL-BC7528-9M 1" 75MM F2.8 Manual Iris C-Mount, 9 Megapixel Rated Lens
Overview

The RICOH FL-BC7528-9M Manual Iris Lenses is compatible with 1" format cameras up to 9 megapixels.



Features:



  • Fixed focal length lens
  • high-resolution
  • compact Design
  • 9 Megapixel lens
  • with locking screws
  • for C- and CS- Mount cameras
  • High resolving power of 135 lp/mm from centre to corners of the image
  •


    Applications:



  • Visual inspection of printed circuit boards and sheet materials (metal, paper, film)
  • Verifying type on printed matter
  • Inspecting the shape, color, and surface of food and pharmaceuticals for erros
  • Confirming hairline cracks and other surface defects on diameter sheet metals
  • Checking for missing pixels on LCD monitors
  • Visual and foreign substance inspections on everything from precision machined items to containers
  • In capturing precision machining products such as electronic substrates and wafers
  • Specifications
    Format Size 1"
    Focal Length 75 mm
    Maximum aperture ratio 1:2.8
    Iris Range  2.8~32
    Mount C
    Horizontal Angle of View 1/3" Format 3.7°
    Horizontal Angle of View 1/2" Format 4.9°
    Horizontal Angle of View 1 1/8" Format 5.5°
    Horizontal Angle of View 2/3" Format 6.7°

    Horizontal Angle of View 1"Format

    9.8°
    Min. Object Distance 0.25m
    Back Focal Length 21.3mm
    Filter Size 40.5 P=0.5mm
    Dimensions φ42mmx81mm
    Weight 189g
    Comments Focus & Iris lock screws
