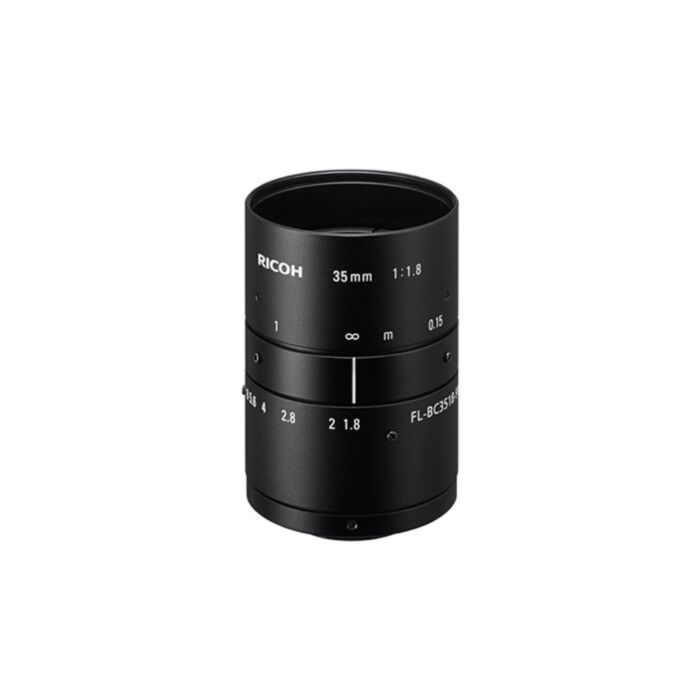

  • RICOH FL-BC3518-9M Image 1

RICOH FL-BC3518-9M 1" (35 mm) Manual Iris Lens

Quick Overview

RICOH FL-BC3518-9M 1" 35MM F1.8 Manual Iris C-Mount, 9 Megapixel Rated Lens
Overview

The RICOH FL-BC3518-9M is a Manual Iris Lens compatible with 1" format cameras up to 9 megapixels.



Features:



  • Sensor size up to 1"-CCD
  • Focal lenght 35 mm
  • Aperture F1.8
  • MOD 150 mm
  • Filter thread M40.5 x 0.5
  • Dimension (D x L): 42 mm x 60 mm
  • Weight: 150 g
  • Camera mount C-Mount
  • Aperture and focus with locking screws
  •


    Applications:



  • Visual inspection of printed circuit boards and sheet materials (metal, paper, film)
  • Verifying type on printed matter
  • Inspecting the shape, color, and surface of food and pharmaceuticals for erros
  • Confirming hairline cracks and other surface defects on diameter sheet metals
  • Checking for missing pixels on LCD monitors
  • Visual and foreign substance inspections on everything from precision machined items to containers
  • In capturing precision machining products such as electronic substrates and wafers
  • Specifications
    Format Size 1"
    Focal Length 35 mm
    Maximum aperture ratio 1:1.8
    Iris Range  1.8~22
    Mount C
    Horizontal Angle of View 1/3" Format 7.8°
    Horizontal Angle of View 1/2" Format 10.4°
    Horizontal Angle of View 1 1/8" Format 11.7°
    Horizontal Angle of View 2/3" Format 14.3°

    Horizontal Angle of View 1"Format

    20.7°
    Min. Object Distance 0.15m
    Back Focal Length 16.8mm
    Filter Size 40.5 P=0.5mm
    Dimensions φ42mmx60.5mm
    Weight 150 g
    Comments Focus & Iris lock screws
