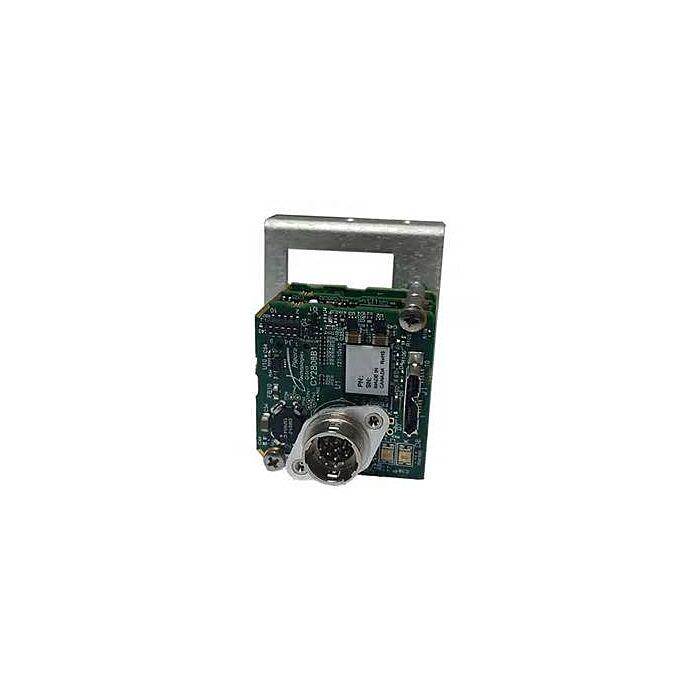

Pleora iPORT SB-U3 for most Sony FCB-EH and FCB-EV models of HD Block Cameras

Quick Overview

Transport high-speed imaging and video data from Sony Block Cameras over USB 3.0

900-6131 iPORT SB-U3 External-Powered OEM Basic Kit $546.00
900-6128 iPORT SB-U3 External-Powered OEM Kit $585.00
900-6129 iPORT SB-U3 External-Powered Development Kit $995.00
Overview

Pleora’s iPORT™ SB-U3 improves the usability of Sony High Definition block cameras by allowing systems manufacturers and integrators to treat them as native USB3 Vision™cameras. These interface boards can move high-speed imaging and video data over the widely available USB 3.0 bus. Using SB-U3 these cameras can also be used with a broader selection of computing platforms, such as laptops, embedded PCs, and single board computers. The SB-U3 allows designers to use the Sony FCB-EV7500, FCB-EH6500, FCB-EH6300, FCB-EH3410 HD and FCB-EH3310 HD block cameras as USB3.0. Transmitting full-resolution, low and predictable latency over a standard USB 3.0 port, the UB-U3 eliminates the need for desktop PCs allowing designers to use smaller form factor computer platforms and saving system costs.

The SB-U3 interfaces with the Sony® VISCA™ protocol with graphics that are also available in the eBus SDK (software developers kit). Pleora’s external frame grabbers provide high bandwidth, power over the cable and plug-and-play interfacing for your Sony HD block cameras.  These interfaces allow for multiple cameras to be integrated with an off-the-shelf USB 3.0 hub over a single port. Complying with USB3 Vision and GenICam™standards the SB-U3 allows for interfacing in multivendor environments.


Features:

  • Converts Sony block cameras into USB3 Vision cameras
  • Power, control, and video over the same USB 3.0 cable
  • Plugs into a wide range of computing platforms without needing a PCI frame grabber
  • Transmits full-resolution images at the maximum rate supported by the block camera
  • Provides a user friendly interface for Sony VISCA protocol
  • Low and consistent latency
  • Bundled with Pleora's e-BUS SDK

  • Applications:

  • Medical: telemedicine, medical carts
  • Robotics: bin-picking robots and sorting robots on manufacturing lines
  • Specifications

    iPORT™ External
    Frame Grabbers

    •Highly reliable, 2 Gb/s data transfer rate with low, end-to-end latency
    •OEM, in-camera board set

    eBUS™ SDK

    •eBUS Universal Pro driver
    •Sample applications, including NetCommand™ sample application, a demonstration of multi-device network connectivity
    •Driver installation tool
    •Documentation

    USB3 Vision and
    GenICam™

    •Fully compatible firmware load
    •Guarantees delivery of all packets
    •Comprehensive data transfer diagnostics

    Video Acquisition •Digital video interface
    Input Resolutions

    •Full resolution images
    •1080p, 25/29.97/30Hz
    •1080i, 50/59.94/60Hz
    •720p, 25/29.97/30/50/59.94/60Hz
    •Sony FCB-EV7500: 1080p, 50/59.94/60Hz

    Pixel Formats

    •Mono8 (8 bits per pixel)
    •BayerGR8 (8 bits per pixel)
    •YUV 4:2:2 (16 bits per pixel)
    •YUV 4:1:1 (12 bits per pixel)

    Deinterlacing Support •Weave and line duplication (resolution dependent)
     USB 3.0 Based

    •Connection to low-cost, easy-to-use equipment
    •USB3 Vision 1.0 compliant

    Programmable Logic
    Controller

    •Advanced image capture control
    Mechanical Bracket  •Easy assembly with Sony block cameras
    12-pin Circular Connector

    •GPIO
    •RS-232 serial communication interface

    10-pin USB 3.0 Micro-B
    Receptacle

    •Computer interface
    •Power over USB (PoUSB)

    30-pin Connector

    •Sony block camera interface (cable provided)
    •Digital video interface: 4 lanes of LVDS, 8 lanes for FCB-EV7500
    •VISCA serial command interface
    •Power for block camera

    Size (L x W x H)   •37mm X 37mm X 29.3mm
    Operating Temperature •0°C to 60°C
    Storage Temperature •-40°C to 85°C
    External Power Supply •4.8V to 16V
    Power Consumption

    •Sony FCB-EH3310, FCB-EH3410: 5.7W
    •Sony FCB-EH6500, FCB-EH6300: 6.1W
    •Sony FCB-EV7500: 5.8 W



    ORDERING INFORMATION

    900-6130

    •iPORT SB-SB-U3 OEM Basic Kit includes SB-U3 OEM board
    set mounted on camera bracket, and mounting screws

    900-6123

    •iPORT SB-U3 Includes SB-U3 OEM board set mounted on camera
    bracket, mounting screws, and 30-pin micro-coaxial video/control
    camera cable

    900-6124

    •iPORT SB-U3 Development Kit Includes SB-U3 OEM board set
    mounted on camera bracket, mounting screws, 30-pin micro-coaxial
    video/control camera cable, USB 3.0 Y-cable, and eBUS SDK USB
    stick.




    Integrating the iPORT SB-U3 with a Sony FCB Block Camera



    Sony VISCA & GenICam Protocols for the iPORT SB-U3 and Sony FCB Block Camera

    Pleora iPORT SBU3
