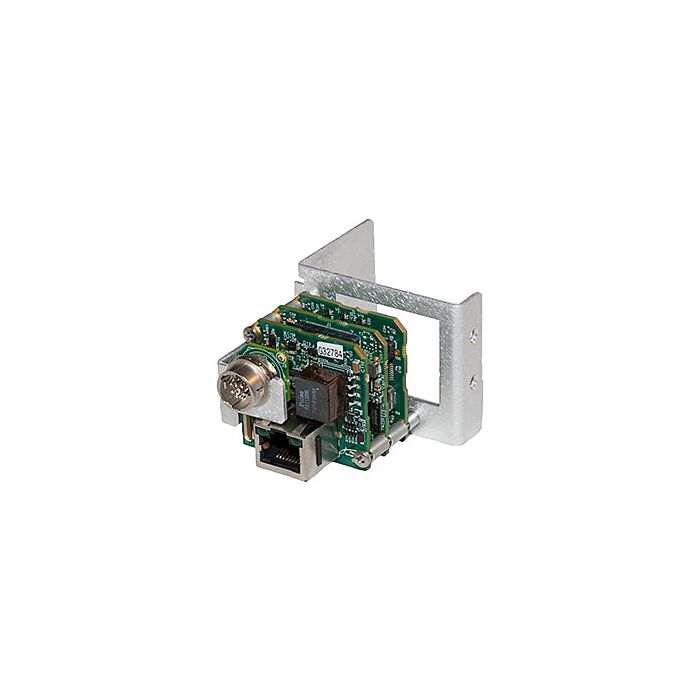

Pleora iPORT SB-GigE for most Sony FCB-EH and FCB-EV models of HD Block Cameras

Quick Overview

Leverage the long-distance cabling and multicasting capabilities of GigE for Sony block cameras.

900-6132 iPORT SB-GigE OEM Basic Kit $562.00
900-6117 iPORT SB-GigE OEM Kit $618.00
Overview

Pleora’s iPORT™ SB-GigE External Frame Grabbers (interface boards) expands upon the SB-Pro that converted the FCBEH6500, FCBEH6300 and the FCBH11 Sony High Definition block cameras by allowing systems manufacturers and integrators to treat them as native GigE Vision® cameras. The IPORT SB-GigE picks up where the SB-Pro left off offering GigE Vision to these cameras, FCBEV7500, FCBEH6500, FCBEH6300, FCBEH3410 and FCBEH3310, with these external frame grabbers, Sony HD block cameras can leverage long-distance cabling of Gigabit Ethernet (GigE) for both video and control signals. The cameras can also be used with a broader selection of computing platforms and lower overall system costs.

Pleora’s iPORT SB-GigE offers and extensive Software Developers Kit (SDK) eBUS.  The eBUS SDK interfaces with the Sony VISCA protocol making communication easy. The eBus SDK offers designers, engineers, system integrators and manufacturers a development tool that easily interfaces between their software, the SB-GigE and the Sony HD FCB Blocks.

The ability to integrate High Definition Cameras into a standard GigE signal makes this a solution of choice for many reasons including cost savings, reliability, distancing and space allocation. GigE offers low consistent latency for reliability. Applications where going long distances (up to 100 meters) is important makes the SB-GigE a solution of choice with only one standard CAT5e/6 cable necessary to do the job. Finally, SB-GigE saves space eliminating the need for desktop PCs allowing for the use of smaller form factors such as laptops, embedded PCs and single board computers.

Features:

  • Transforms Sony High Definition block cameras into GigE Vision cameras
  • Power, control, and video over the same cable (A single cable solution)
  • Saves cost and space by using smaller form factor solutions: laptops, embedded PCs, single board computers
  • Transmits full-resolution images at the maximum rate supported by the block camera
  • Converts video to 8-bit monochrome formats to conserve bandwidth (except in 1080p modes at 50 fps or higher)
  • Simplifies Sony VISCA interface
  • Synchronizes image capture with other elements of the system
  • Low predictable latency

  • Applications:

  • Machine Vision Camera Applications
  • Robotics and Factory Automation Camera Systems
  • Sports Arena Camera Applications
  • Security Camera Applications
  • Military Camera Applications
  • Aviation Camera Applications
  • Medical Camera Applications
  • Specifications

    iPORT™ External Frame Grabbers

    •Highly reliable; up to 1 Gb/s data transfer rate with low, end-to-end latency
    •OEM board set or enclosed unit

    eBUS™ SDK

    •eBUS Universal Pro driver
    •Sample applications, including NetCommand™ sample application, a  demonstration of multi-device network connectivity
    •Driver installation tool
    •Documentation

    Gige Vision® and GenICam™

    •Fully-compatible firmware load
    •Guarantees delivery of all packets
    •Comprehensive data transfer diagnostics
    Video Acquisition •Digital video interface
    Input Resolutions •Full resolution images
    •1080p, 25/29.97/30Hz
    •1080i, 50/59.94/60Hz
    •720p, 25/29.97/30/50/59.94/60Hz
    •Sony FCB-EV7500: 1080p, 50/59.94/60Hz
    Pixel Formats •Mono8 (8 bits per pixel)
    •BayerGR8 (8 bits per pixel)
    •YUV 4:2:2 (16 bits per pixel)
    •YUV 4:1:1 (12 bits per pixel)
    Deinterlacing Support •Weave and line duplication (resolution dependent)

    Gigabit Ethernet Based

    •Connection to low-cost, easy-to-use equipment
    •Compatible with 10/100/1000 Mb/s IP/ Ethernet networks
    •Supports IEEE 802.3 (Ethernet), IP, IGMP v.2, UDP, ICMP (ping), and IEEE 1588 Precision Time Protocol (PTP)
    •Long reach: 100 m point-to-point, further with Ethernet switches
    Multicast Capability •Enables advanced distributed processing and control architectures
    Mechanical Bracket •Easy assembly with Sony block cameras
    12-Pin Circular Connector  •GPIO
    •RS-232 serial communication interface
    •External power (optional)
    RJ-45 Jack •Network/computer interface
    •Power over Ethernet (PoE)
    30-Pin Connector •Sony block camera interface (cable provided)
    •Digital video interface: 4 lanes 0f LVDS, 8 lanes for FCB-EV7500
    •VISCA serial command interface
    •Power for block camera
    Size (L x W x H)   •37mm X 37mm X 34.3mm
    Operating temperature •0°C to 60°C
    Storage temperature •-40°C to 85°C
    External Power Supply •4.8V to 16V
    Power Consumption

    •Sony FCB-EH3310, FCB-EH3410: 5.7W
    •Sony FCB-EH6500, FCB-EH6300: 6.1W
    •Sony FCB-EV7500: 5.8 W



    ORDERING INFORMATION

    900-6132

    •iPORT SB-GigE OEM Basic Kit includes SB-GigE OEM board
    set mounted on camera bracket, and mounting screws

    900-6117

    •iPORT SB-GigE External Frame Grabber board set with
    camera bracket, cable to connect to block camera, GPIO
    cable, and unsoldered power/GPIO/serial connector

    Integrating the iPORT SB-GigE with a Sony FCB Block Camera


    Sony VISCA & GenICam Protocols for the iPORT SB-GigE and Sony FCB Block Camera

    Pleora iPORT SBGigE
