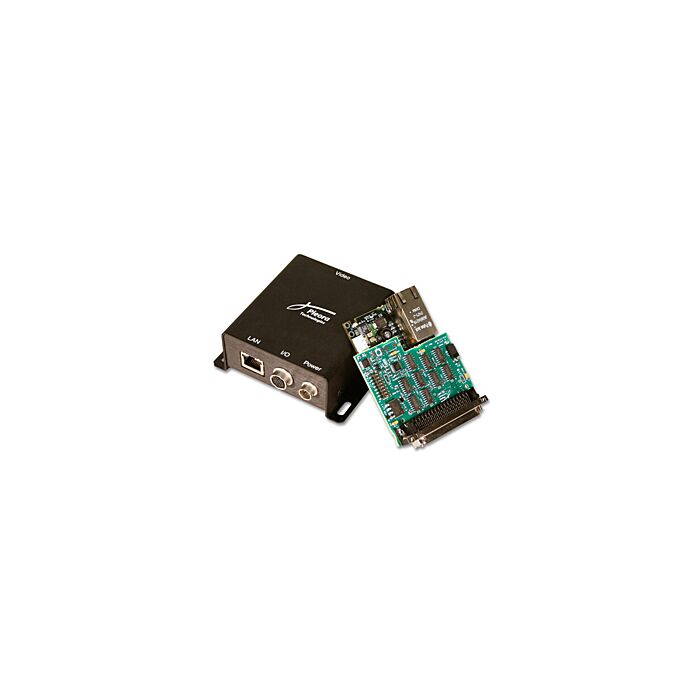

  • Pleora iPORT PT-1000-LV Image
  • iPORT PT1000LV Image

Pleora iPORT PT1000-LV External Frame Grabber

Quick Overview

High-performance GigE Vision connectivity for LVDS cameras.
Overview

Pleora’s iPORT™ PT1000-LV External Frame Grabbers allow system manufacturers and integrators to treat LVDS cameras as native GigE Vision® cameras. With these external frame grabbers, LVDS cameras enjoy the long-distance reach of Gigabit Ethernet (GigE) and can be mixed with native GigE Vision cameras in networked environments. System manufacturers and integrators can shorten time-to-market, lower design and system costs, and reduce development and deployment risk by reusing expensive or application-specific LVDS cameras in GigE Vision installations, with minimal software development. The PT1000-LV External Frame Grabbers interact seamlessly with Pleora's other products in networked or point-to-point digital video systems. The frame grabbers also comply fully with the GigE Vision® and GenICam™ standards, enabling them to interoperate with third-party equipment in multi-vendor systems.

The PT1000-LV converts video from LVDS cameras to packets and transmits it over a GigE link with low, predictable latency. GigE supports cabling distances of up to 100 meters using standard CAT5e/6 cabling. With off-the-shelf Ethernet switches, distances can be unlimited. The connection at the PC is a standard GigE plug, eliminating the need for a desktop PC with an available peripheral card slot. As a result, system designers can reduce system size, cost, and power consumption by using computing platforms with smaller form factors, such as laptops, embedded PCs, and single board computers. A sophisticated on-board programmable logic controller (PLC) allows users to precisely measure, synchronize, trigger, and control the operation of other vision system elements. The PT1000-LV is bundled with Pleora’s feature-rich application toolkit, eBUS™ SDK, and compatible with Pleora’s vDisplay™ External Frame Grabbers, which deliver video directly to a monitor.


Features:

  • Transmits video from LVDS cameras supporting the TIA/EIA 644 standard over GigE with low, consistent latency
  • Built-in PLC for advanced real-time synchronization and triggering
  • RS-232 and GPIO to control external devices

  • Applications:

  • Machine Vision
  • Factory Automation
  • Robotic Inspection
  • Specifications

    iPORT™ External Frame Grabbers

    •Purpose-built hardware compatible with TIA/EIA 644 LVDS cameras
    •Highly reliable, 1 Gb/s data transfer rate with low, end-to-end latency
    •Enclosed unit or OEM board

    eBUS™ SDK

    •eBUS Universal Pro driver
    •Sample applications, including NetCommand™ sample application, a demonstration of multi-device network connectivity
    •Driver installation tool
    •Documentation

    Gige Vision®

    •Fully-compatible firmware load
    •Guarantees delivery of all packets
    •Comprehensive data transfer diagnostics

    Accepts TIA/EIA- 644 Signals

    •Compatible with a wide range of cameras

    Integrated Acquisition Engine

    •Can acquire image data from a wide variety of sources, with pixel depths up to 16 bits, color or B/W, and multi-tap

    Free Running or Externally Triggered

    •Flexible acquisition modes

    Power

    •Enclosed: Hirose 6-pin (HR10A-7R-6P)
    •OEM: Molex 4-pin 6373 series (22-23 -2041)

    Network  •RJ-45
    Video

    •Hirose 68-pin female MDR (DX10GM-68SE)

    Inputs

    *2 TTL Inputs

    *1 LVDS Input

    *1 optically Isolated Input

    Outputs:

    *2 TTL Outputs

    *1 Optically Isolated Output

    •Allows synchronization of multiple cameras or system elements
    •Flexible triggering capabilities, including Boolean combinations and camera control signals
    •Provides an electrically isolated control interface
    •Built-in debouncers

    2 RS-232 Serial Links •Enables advanced distributed processing and control architectures
    Delayer, Rescaler, General-Purpose Counter

    •Allows full synchronization with line scan cameras
    •Allows synchronized capture between multiple cameras
    •Allows camera acquisition to track changing speeds on conveyor belts

    Timestamp Trigger, Counter, and Reset

    •Allows system actions to be triggered based on timestamps
    •Allows resets to be broadcast to all iPORTs in system from host

    Gigabit Ethernet-Based •Low-cost, easy-to-use equipment
    •Compatible with 10/100/1000 Mb/s IP/Ethernet networks
    •Supports IEEE 802.3 (Ethernet), IP, IGMP v.2, UDP and ICMP (ping)
    •Long reach: 100 m point-to-point, further with Ethernet switches or fiber

    Multicast Capability

    •Enables advanced distributed processing and control architectures

    Size

    •Enclosed: 95 mm X 97 mm X 37 mm
    •OEM: 89 mm X 72 mm X 21 mm

    Operating Temperature

    •Enclosed: 0°C to 45°C
    •OEM: 0°C to 70°C

    External Power Supply •4.5V to 16V
    Power Consumption

    •2.5 W



    ORDERING INFORMATION

     900-4005

    •iPORT PT1000-LV External Frame Grabber Board set with 16 MB SDRAM

     900-4006

    •iPORT PT1000-LV External Frame Grabber enclosed product with 16 MB SDRAM

     900-4002

    •iPORT PT1000-LV External Frame Grabber Evaluation Kit, which contains 900-4006,
    power supply, and a GigE NIC
