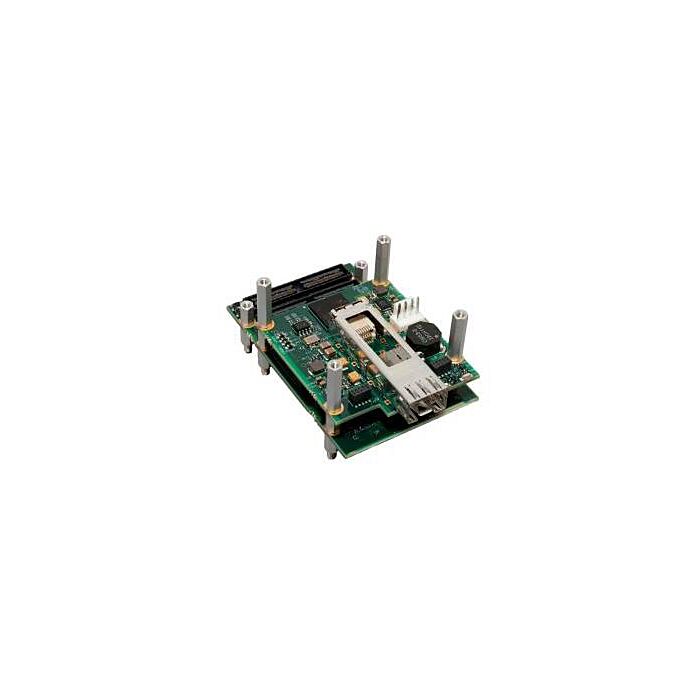

Pleora iPORT NTx-Ten Embedded Video Interface

Quick Overview

High-performance video connectivity using 10 GigE technology.
Overview

Pleora’s iPORT™ NTx-Ten Embedded Video Interface hardware provides system and camera manufacturers with a straightforward way to integrate 10 Gigabit Ethernet (GigE) video connectivity into their products. Using the NTx-Ten, manufacturers can shorten time-to-market, reduce development and deployment risk, and lower design and system costs. The NTx-Ten interacts seamlessly with Pleora's other products in networked or point-to-point digital video systems. The hardware also complies fully with the GigE Vision® 2.0 and GenICam™ standards, ensuring interoperability with third-party equipment in multi-vendor environments.

A sophisticated on-board Programmable Logic Controller (PLC) and support for the IEEE 1588 Precision Time Protocol allows users to precisely measure, synchronize, and control the operation of other system elements. GigE Vision and GenICam are both agnostic to Ethernet link speed, which means the NTx-Ten can be combined into systems alongside GigE Vision cameras operating at 1 Gb/s, with no software modifications. The NTx-Ten converts video data to Ethernet packets and sends it with low, consistent latency over a 10 GigE link to receiving software or hardware. The NTx-Ten is compatible with industry-standard copper or fiber-based links via an SFP+ (small form-factor pluggable) connector, and connects easily to off-the-shelf 10 GigE components such as network cards and switches. Pleora’s iPORT NTx-Ten Embedded Video Interface is bundled with the eBUS™ SDK, a feature-rich application development toolkit for manufacturers to rebrand and distribute with their end-products.

Features:

  • GigE Vision 2.0 and GenICam compatible
  • Support for transmission of video from up to two sensors simultaneously
  • Up to 96-bit, 125 MHz parallel LVTTL/LVCMOS video input, and up to eight interleaved taps
  • Line scan and area scan modes
  • 120 MB frame buffer to accommodate multi-megapixel image sensors
  • Updatable firmware via the 10 GigE port for ease of manufacturing and feature upgrades in the field

  • Applications:

  • Factory Automation
  • Robotics
  • Medical
  • Military

  • Compatible Vision Standards

    Specifications
    iPORT Embedded Video Interfaces • Highly reliable, over 8 Gbps data transfer rate with low, end-to-end latency
    • OEM in-system board set
    • Purpose-built hardware
    eBUS SDK • Compatible with Windows and Linux operating systems
    • eBUS Universal Pro driver
    • Sample applications including NetCommand, a demonstration of multi-device network connectivity
    • Driver installation tool
    • Extensive documentation
    GigE Vision • Fully compatible firmware load
    • Packet resend capability to ensure reliability
    • Comprehensive data transfer diagnostics
    • Serial communications over Ethernet
    Parallel Digital Bus • Single channel mode – 8 taps, 12 bits per tap
    • Dual channel mode – 2 or 4 taps per channel, with up to 12 bits per tap
    • Up to 125 MHz clock
    Tap Configurations • Supports interleaved 2-tap and 4-tap configurations
    • Support for key line scan non-interleaved tap configurations
    Power 2-pin header, Molex 22-23-2041
    Network Supports 10GBASE-SR, -LR, and –LRM using linear or limiting SFP+ modules
    Video, serial, and IO Interface • Two 120-pin connectors
    • Samtec QSH-060-01-F-D-A
    4 x TTL inputs Provides a flexible, general-purpose interface
    4 x TTL outputs Allows synchronization of multiple devices or system elements
    4 x TTL inputs/outputs (configurable) Flexible triggering capabilities
    Size 87.5 mm (including SFP+ cage overhang) x 52 mm x 32 mm
    Operating Temperature 0 ° to 70°C*
    Storage Temperature -40°C to 85°C
    Power Supply 12 V
    Power Consumption Approximately 9 W (dependent on SFP+ module in use)
    MTBF @ 40° C 1,124,231 hours
    10 Gigabit Ethernet-based • Industry-standard, easy-to-use equipment
    • Supports DHCP, LLA, and static IP addressing
    • Supports IPv4, UDP, IGMPv2, and ICMP
    • Supports IEEE 1588 Precision Time Protocol
    • Long-reach connectivity, up to 40 km with optical cabling
    Multicast Capability • Standards-based, IGMPv2
    • Enabled advanced distributed processing and control architectures



    ORDERING INFORMATION

    900-0005

    •iPORT NTx-Ten OEM Board No cables included (Does not include heatsink. Must be
    operated with a heatsink)

    900-0007

    •iPORT NTx-Ten Development Kit Includes 905-0005 with heat sink, power supply, 10
    GigE NIC, two SFP+ fiber-optic cable, and eBUS SDK USB stick
