  • PL-D795 Series I mage #1

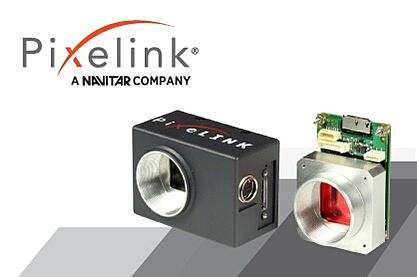

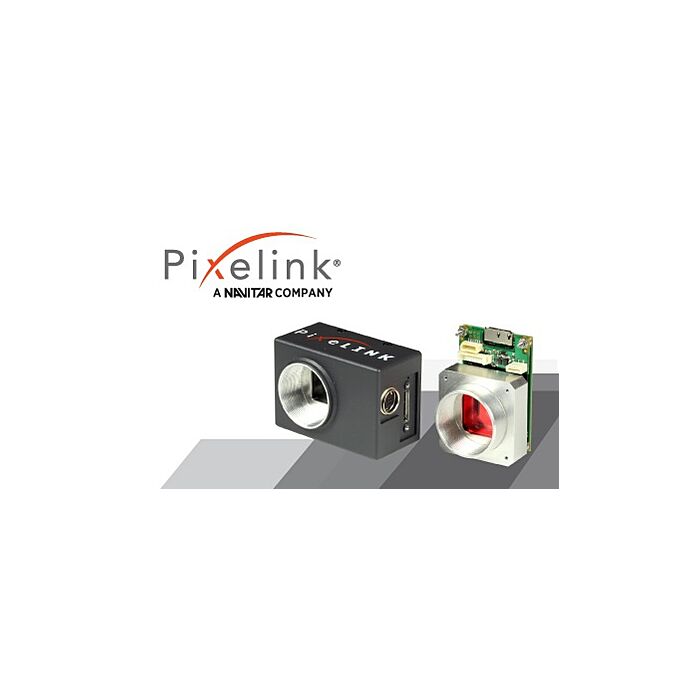

PL-D795: PixeLINK 5 MP Series Color & Mono Cameras (Sony IMX264)

Quick Overview

The Pixelink PL-D795 series of cameras is based on a Sony IMX264 standard CMOS global shutter sensor with a 2/3” optical format. The PL-D795 series cameras incorporate an external trigger (GPIO) connector.
Configurations:
Color:                                                    Mono:
PL-D795CU-T                                       PL-D795MU
PL-D795CU                                          PL-D795MU-BL
PL-D795CU-BL                                     PL-D795MU-T
PL-D795CU-S-BL                                 PL-D795MU-S-BL


Overview

The PL-D795 camera provides low noise images for outstanding value in a broad range of industrial applications.



Features:



  • 5.01 CMOS
  • 36 Frames Per Second
  • 12 Bit
  • Color
  • Mono
  • USB 3.0
  •



    Applications:



  • Parts inspection
  • Strength Testing
  • Metrology
  • Biometrics
  • Medical Imaging
  • PCB & Flat Panel Display Insection
  • Specifications
    Sensor Sony IMX264
    Color Space Color/Mono
    Type CMOS Global Shutter
    Resolution 5.01 MP (2448 x 2048)
    Pixel Pitch 3.45 µm x 3.45 µm
    Active Area 11.1 mm diagonal
    FNU 0.03%
    PRNU 0.4%
    Dynamic Range 70 dB
    Color Data Formats Bayer 8, Bayer 12 packed & Bayer 16
    Mono Data Formats Mono 8, Mono 12 packed & Mono 16
    Dimensions 32 x 48 x 11 (without lens mount)
    Weight 35.8 (without optics)
    Mount C-Mount and CS-Mount
    bit.ly/PL-D795
    PL-D795
