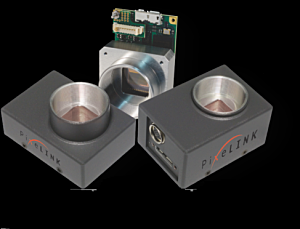

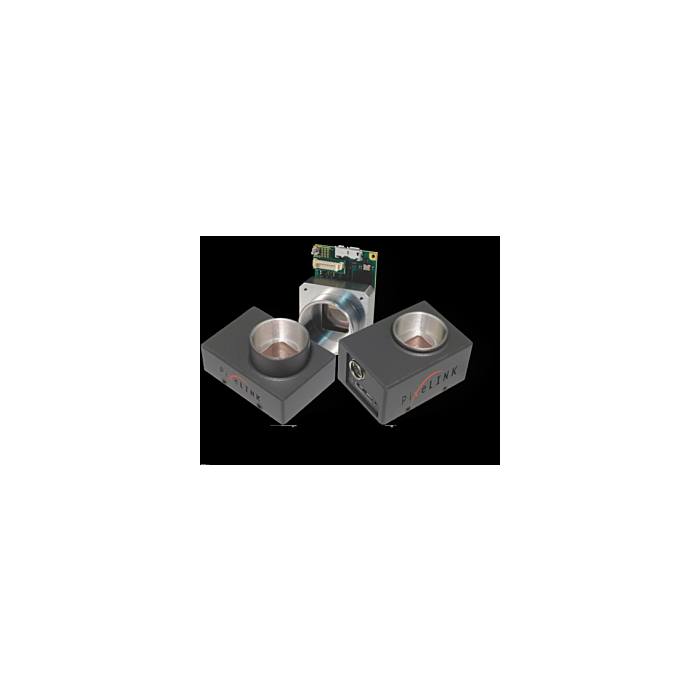

  • PL-D752 Series 2.3 MP Image 1

PixeLINK PL-D752 Series 2.3 MP 1920x1200 Resolution (Sony IMX174)

Quick Overview

The PL-D7 model of cameras are based on a 52 Sony IMX174 CMOS global shutter sensor with a 1/1.2” optical format. The extensive built-in image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance. These cameras provide the user choice of 8-bit or 12-bit digitization and has a dynamic range of up to 69.5db with the 12-bit version .


Color Space                  µScope Version                      Housing                         Other


C – Color                        KIT Essentials Version            BL – Board Level              F-Firewire


M – Mono                      SE Standard Version                T – Trigger                        U-USB


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


See Specs Below For All Configurations-




Overview

The PL-D752 Series color and monochrome cameras provide low noise images for outstanding value in a broad range of industrial applications. The camera features a 2.3 megapixel (1920 x 1200) resolution imager capable of 165 fps at full resolution in 8-bit mode.



Features:



  • 2.3MP (1920 x 1200) Resolution
  • CMOS Global Shutter
  • Monochrome and Color
  • 165 fps at full resolution
  • USB 3.0
  • Flexible Region of Interest (8 pixel H x 16 pixel W granularity)
  • 1 trigger input, 2 general purpose outputs (3.3V)
  • Great image quality
  • Compact size
  • Board level and enclosed models
  • One common API for all cameras CAMERA FEATURES
  • Tethered sensor head option 6”/12” (*Board Level version only)
  • Auto & manual exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Gain Ÿ Gamma
  • Saturation
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •



    Applications:



  • Medical Imaging
  • Parts inspection
  • Metrology
  • Biometrics
  • PCB and flat panel display inspection.
  • Microscopy
  • Specifications
    Sensor Sony IMX174
    Color Space Color/Mono
    Type CMOS Global Shutter
    Resolution 2.3 MP (1920 x 1200)
    Pixel Pitch 5.86 µm x 5.86 µm
    Active Area 13.27 mm diagonal
    Peak QE Mono 76 % @ 525nm
    FPN 0.03%
    PRNU 0.4%
    Color Data Format Bayer 8, Bayer 12 packed and Bayer 16
    Mono Data Formats Raw, Mono 8 and Mono 16
    Dimensions 32 x 48 x 11 (without lens mount)
    Mounting C-Mount, S-Mount and CS-Mount

    Configurations:

    Color

    Mono

    PL-D752CU
    PL-D752CU-BL
    PL-D752CU-T



    PL-D752MU
    PL-D752MU-BL
    PL-D252MU-T
