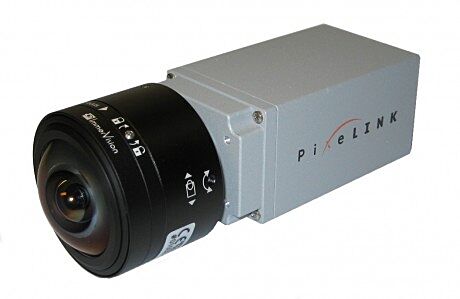

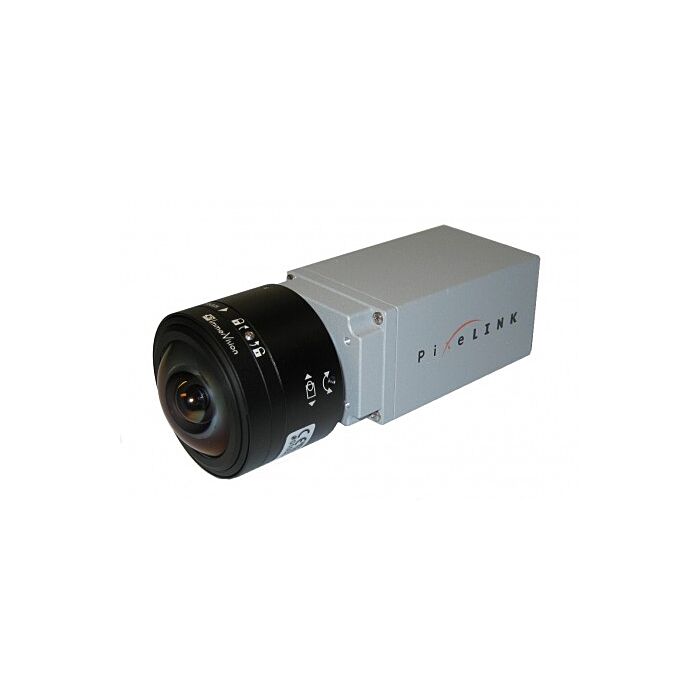

  • PL-B740 Series Image 1

PixeLINK PL-B74 Series 1.3MP 1280x1024 Resolution Machine Vision Camera Kits (On Semi IBIS 5B)

Quick Overview

The PL-B741 monochrome and PL-B742 color 1.3 megapixel (1280 x 1024) cameras are designed specifically for industrial inspection applications.





Color Space                  µScope Version                      Housing                         Other


C – Color                        KIT Essentials Version            BL – Board Level              F-Firewire


M – Mono                      SE Standard Version                T – Trigger                        U-USB


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


See Specs Below For All Configurations-

Overview

The PL-B74 Series of cameras operate at 27 frames per second (fps) in free running mode and 26 fps in triggered mode.



Features:



  • Common API for all cameras
  • Extended Shutter mode 27 fps
  • Global Shutter sensor
  • 741E enhanced NIR spectral response
  • In-camera Flat Field Correction (FFC)
  • Defective Pixel Correction
  •


    Applications:



  • Machine Vision
  • Microscopy
  • Medical Imaging
  • Biometrics
  • Specifications
    Interface FireWire/USB/GigE
    Sensor On Semi IBIS 5B
    Color Space Color/Mono
    Resolution (MP) 1280(H) x 1024(V) Color & Mono
    Bit Depth 8 & 10-bit
    Pixel Pitch (µm) 6.7 µm x 6.7 µm
    Mount C & CS-Mount, 2/3” optical format
    Frame Rate (FPS at Full Resolution) 27, 26
    Sensor Type CMOS
    Shutter Type Global/Rollling

    Configurations:

                       Color                                 Mono

                       PL-B742F                          PL-B741F
                       PL-B742F-BL                    PL-B741F-BL
                       PL-B742F-R                      PL-B741F-R
                       PL-B742G                         PL-B741G
                       PL-B742G-BL                    PL-B741G-BL
                       PL-B742G-R                      PL-B741G-R
                       PL-B742U                          PL-B741U
                       PL-B742U-BL                    PL-B741U-BL
                       PL-B742U-R                      PL-B741U-R
