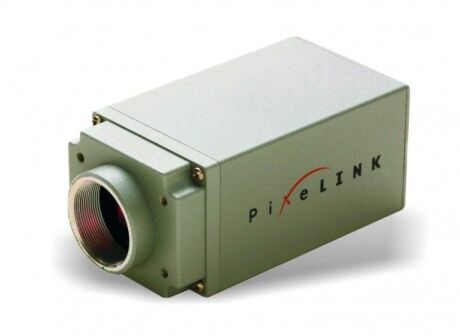

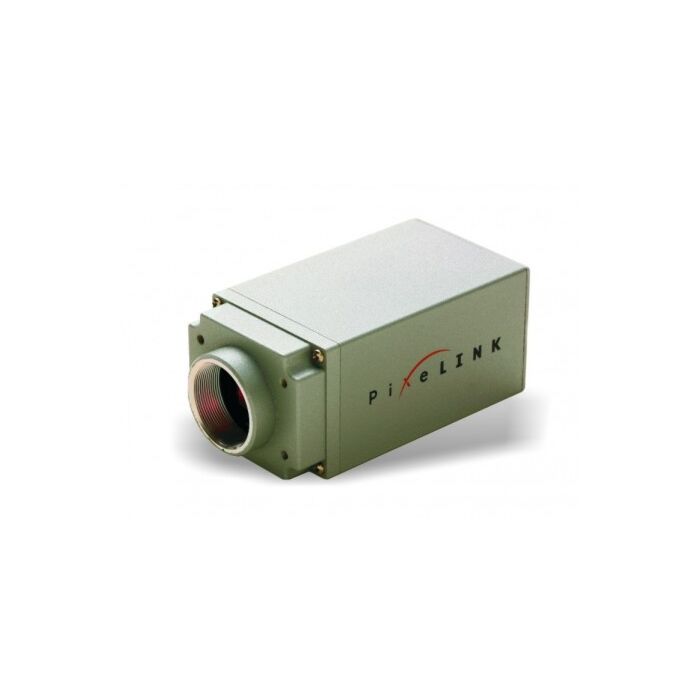

  • PixeLINK PL-E530 Series Image 1

PixeLINK PL-E530 Series 1.3,3.0,5.0MP 1280x1024-2592x1944 Resolution Machine Vision Camera (Aptina M9T001 & MT9P031)

Quick Overview

The PL‐E530 series of cameras are based on a Aptina CMOS progressive scan sensor with a 1/2” optical format. These cameras provide the user of choice of 8‐bit or 10‐bit digitization and a dynamic range of 60dB in 10‐bit mode.





Color Space                  µScope Version                      Housing


C – Color                        KIT Essentials Version             BL – Board Level


M – Mono                       SE Standard Version                T – Trigger


NIR – Near Infrared        PRO - Professional Version     CYL - Cylindrical case


F - Firewire                     G - GigE                                   U - USB 2.0


See Specs Below For All Configurations-

Overview

The PixelINK PL-E530 Series is designed for Machine Vison and similar applications.



Features:



  • High quality Aptina sensor
  • Broad range of applications
  • Compact size
  • Total camera control via software
  • C or CS mount
  •


    Applications:



  • Biometrics
  • High performance security & surveillance applications
  • Parts inspection
  • Metrology
  • Document archiving
  • PCB inspection
  • Specifications
    Sensor Aptina CMOS
    Color Space Color/Mono
    Type Rolling Shutter, Progressive Scan
    Resolution 1280(H) x 1024(V) 1.3 MP
    Pixel Pitch 5.2 µm x 5.2 µm
    Active Area 6.65 mm x 5.32 mm ‐ 8.52 mm diagonal
    FNU <1 %
    PRNU <1 %
    Dynamic Range 60 dB
    Color Data Formats YUV422, Bayer 8, Bayer 12 packed, Bayer 16
    Mono Data Formats Mono 8, mono 12 packed and Mono 16
    Dimensions 40 mm x 70 mm x 20 mm
    Weight 46 g



    Configurations:

                  Color                                  Mono

                  PL-E533CU                        PL-E531MU
                  PL-E533CU-BL                  PL-E535MU-BL
                  PL-E535CU
                  PL-E535CU-BL
