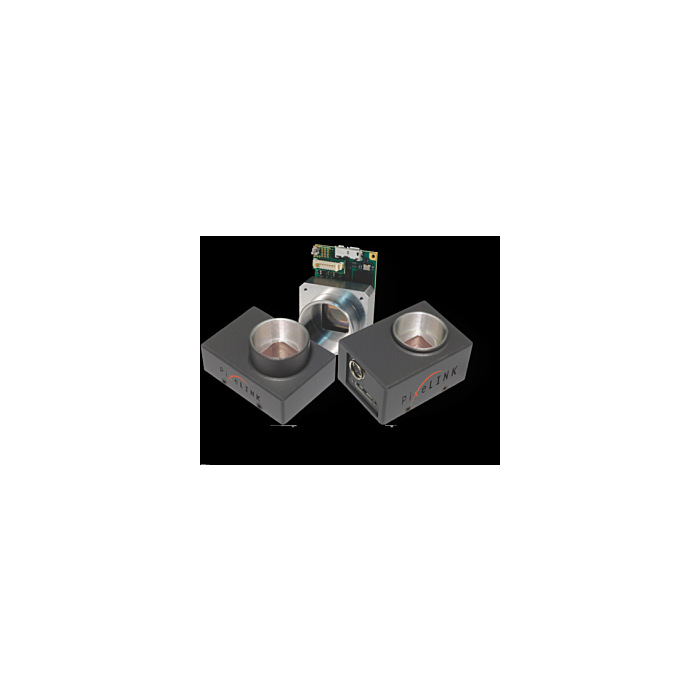

  • PixeLINK PL-D7715 Series | Machine Vision | Image #1

PixeLINK PL-D7715 Series 15.0 MP 4608x3288 Resolution Auto-Focus Liquid Lens (Aptina MT9F002)

Quick Overview

The PL-D7715 Series is based on a Aptina CMOS Rolling shutter sensor with a 1/2.2” optical format. The extensive built-in image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance.





PL-D7715 Series Configuration Codes


C – Color     F – Firewire        BL – Board Level
AF - Autofocus Lens (in mm) M – Mono
G – GigE     T – Trigger
AFE - Edmund Optics Autofocus Lens (in mm)
NIR – Near Infrared                U – USB
CYL - Cylindrical case


See Specs Below For All Configurations-

Overview

The PixeLINK PL-D7715 Series of cameras features a 15 megapixel (4608 x 3288) resolution imager capable of 13 fps at full resolution.

Features:

  • Extended shutter mode
  • Auto & manual exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Color Temperature
  • Gain
  • Gamma
  • Saturation
  • Histogram
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)

  • Applications:

  • High Resolution Imaging
  • Document Scanning
  • Flat Panel
  • PCB Inspection
  • Aerial Photography
  • Specifications



    Sensor ON Semiconductor MT9F002
    Color Space Color/Mono
    Type CMOS Rolling Shutter
    Resolution 15 MP (4068 x 3288)
    Pixel PItch 1.4 µm x 1.4 µm
    Active Area 7.87 mm diagonal
    FPN <1% of signal
    PRNU <2% of signal
    Dynamic Range 60.5 dB
    Color Data Format Bayer 8, Bayer 16 and YUV422
    Dimensions 32 x 48 x 11 (without lens mount)
    Weight 35.8 (without optics)
    Mount C-Mount and CS-Mount



    Configurations:

    Color

     Mono

    PL-D7715CU
    PL-D7715CU-AF16
    PL-D7715CU-BL
    PL-D7715CU-BL-AF16
    PL-D7715CU-BL-AF25
    PL-D7715CU-BL-AFE12
    PL-D7715CU-BL-AFE16
    PL-D7715CU-BL-AFE25
    PL-D7715CU-BL-AFE35
    PL-D7715CU-S-BL
    PL-D7715CU-S-BL-AF2.6
    PL-D7715CU-S-BL-AF7.5
    PL-D7715CU-S-BL-AF9.6
    PL-D7715CU-T

    PL-D7715MU-AF25
    PL-D7715MU-BL
