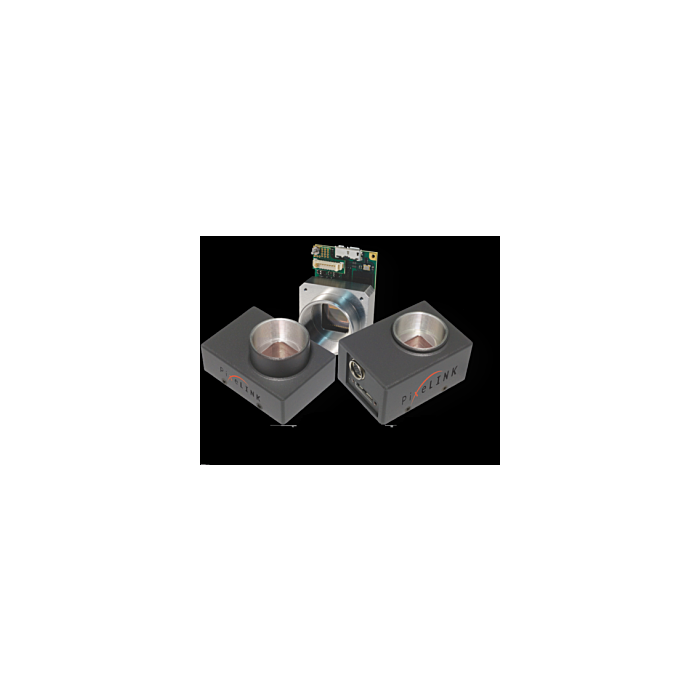

  • PixeLINK PL-D732 Series Image 1

PixeLINK PL-D732 Series 2.2 MP 2048x1088 Resolution Auto-Focus Liquid Lens (CMOSIS CMV 2000)

Quick Overview

The PL-D732 model of cameras is based on a CMOSIS CMOS global shutter sensor with a 2/3” optical format. The extensive built-in image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance. Series Includes:


PL-D732 Series Configuration Codes


C – Color     F – Firewire        BL – Board Level
AF - Autofocus Lens (in mm) M – Mono
G – GigE     T – Trigger
AFE - Edmund Optics Autofocus Lens (in mm)
NIR – Near Infrared                U – USB
CYL - Cylindrical case


See Specs Below For All Configurations-




Overview

The PL-D family of USB 3.0 cameras links together the benefits of high frame rate CMOS technology with the high speed data throughput of USB 3.0 technology.



Features:



  • Great image quality
  • Compact size One common API for all cameras
  • Board level and enclosed models
  • Tethered sensor head option 6”/12” (*Board Level version only)
  • Auto & manual exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Saturation • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • PCB & Semiconductor Inspection
  • Pathology
  • Histology
  • Live Cell Imaging
  • Petrology
  • Academic and pharmaceutical research
  • Clinical medicine
  • Microbiology
  • Genetics
  • Metallurgy
  • Embryology
  • Specifications



    Sensor CMOSIS CMV 2000
    Color Space Color/Mono
    Type CMOS Global Shutter
    Resolution 2.2 MP (2048 x 1088)
    Pixel PItch 5.5 µm x 5.5 µm
    FPN < 0.1 % of signal
    PRNU <2% of signal
    Dynamic Range 60 dB
    Color Data Format Bayer 8, Bayer 16 and YUV422
    Mono Data Formats Mono 8 and Mono 16
    Dimensions 32 x 48 x 11 (without lens mount)
    Weight 35.8 (without optics)
    Mount C-Mount and CS-Mount



    Configurations:

    Color

    Mono

    PL-D732CU
    PL-D732CU-BL
    PL-D732CU-T
    PL-D732CU-AF25
    PL-D732CU-BL-AF25
    PL-D732CU-BL-AFE16
    PL-D732CU-BL-AFE25
    PL-D732CU-BL-AF35



    PL-D732MU
    PL-D732MU-BL
    PL-D732MU-T
    PL-D732MU-AF25
    PL-D732MU-BL-AF25
    PL-D732MU-BL-AFE16
    PL-D732MU-BL-AFE25
    PL-D732MU-BL-AF35
    PL-D732MU-NIR
    PL-D732MU-NIR-BL
    PL-D732MU-NIR-T
    PL-D732MU-NIR-AF25
    PL-D732MU-NIR-BL-AF25
    PL-D732MU-NIR-BL-AFE16
    PL-D732MU-NIR-BL-AFE25
    PL-D732MU-NIR-BL-AFE35
