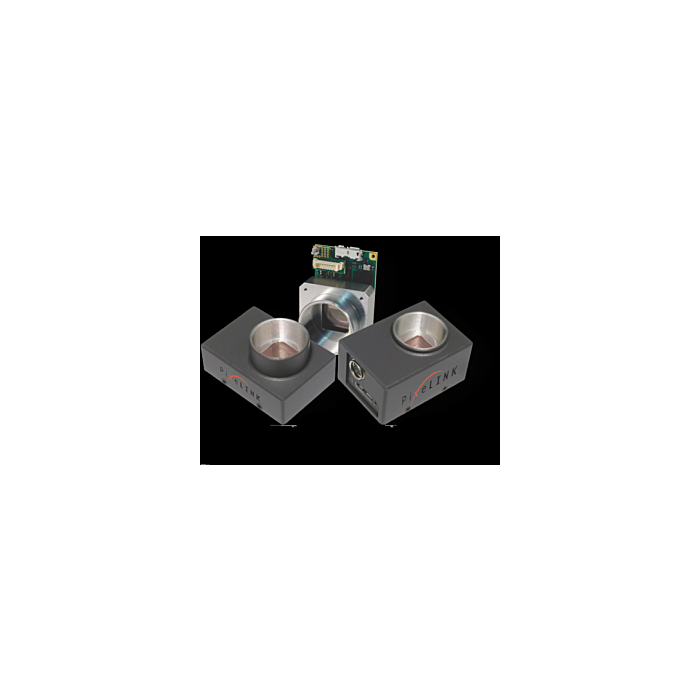

PixeLINK PL-D729 (PLD729 ) Series 9.5 MP 3840x2484 Resolution Auto-Focus Liquid Lens (On Semi Mano 9600)

The PL-D729 series is based on a ON Semiconductor CMOS Rolling shutter sensor with a 2/3” optical format. The extensive built-in image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance.

PL-D729 Series Configuration Codes

C – Color     F – Firewire        BL – Board Level
AF - Autofocus Lens (in mm) M – Mono
G – GigE     T – Trigger
AFE - Edmund Optics Autofocus Lens (in mm)
NIR – Near Infrared                U – USB
CYL - Cylindrical case

See Specs Below For All Configurations-

SKU
PixeLINK PL-D729 Series

The PL-D729 Series USB 3.0 enclosed camera provides high resolution, low noise images for outstanding value in a broad range of industrial applications.



Features:



  • Extended shutter mode
  • Auto & manual exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Color Temperature
  • Gain
  • Gamma
  • Saturation
  • Histogram
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • Medical
  • Parts inspection
  • Metrology and Biometrics
  • PCB and flat panel display inspection
  •

    Sensor ON Semiconductor MANO 9600
    Color Space Mono
    Type CMOS Rolling Shutter
    Resolution 9.5 MP (3840 x 2484)
    Pixel PItch 2.4 µm x 2.4 µm
    Active Area 10.98 mm diagonal
    Peak QE 40% at 550 nm
    FPN <1% of signal
    PRNU <2% of signal
    Dynamic Range 54 dB
    Mono Data Formats Mono 8 and Mono 16
    Dimensions 32 x 48 x 11 (without lens mount)
    Weight 35.8 (without optics)
    Mount C-Mount and CS-Mount



    Configurations:



    Mono





    PL-D729MU                          PL-D729MU-AF16                     PL-D729MU-AF25                             PL-D729MU-BL
    PL-D729MU-BL-AF16           PL-D729MU-BL-AF25               PL-D729MU-BL-AFE12                     PL-D729MU-BL AFE16
    PL-D729MU-BL-AFE25        PL-D729MU-BL-AFE35             PL-D729MU-S-BL-AF2.6                   PL-D729MU-S-BL-AF7.5
