  • PixeLINK PL-D726MU-BL

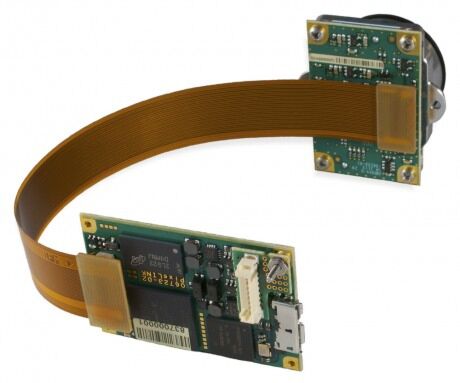

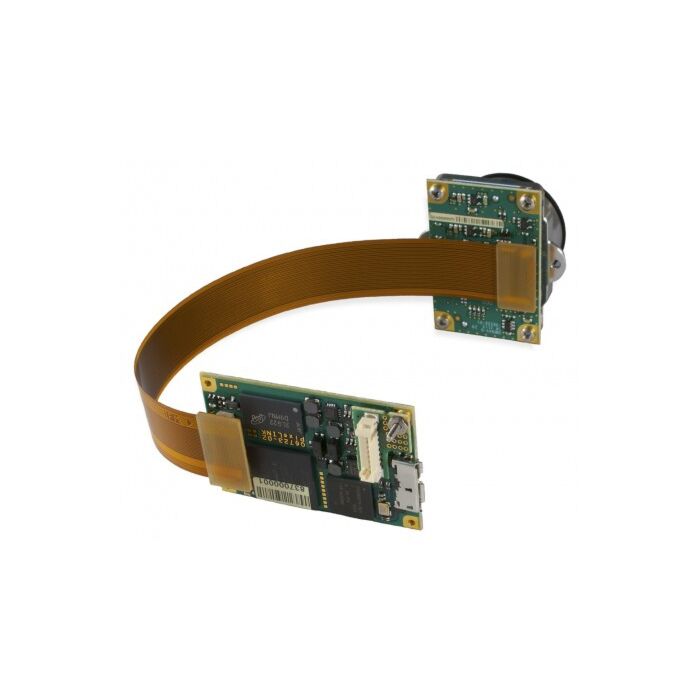

PixeLINK PL-D726MU-BL 6.6 MP 2208x3000 Resolution (ON Semi IBIS 4)

Quick Overview

The PL-D726MU-BL model is based on a ON Semiconductor CMOS rolling sensor with a 1” optical shutter format. The extensive built-in image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance.
Overview

The PL-D726MU-BL camera based on an OnSemi IBIS4 sensor, with its USB 3.0 interface links together the benefits of high frame rate CMOS technology with the high-speed data throughput of USB 3.0 technology. The PL-D726MU-BL monochrome camera provides low noise images for outstanding value in a broad range of industrial applications.



Features:



  • Extended shutter mode
  • Auto & manual exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Color Temperature
  • Gain
  • Gamma
  • Saturation
  • Histogram
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • High-performance security & surveillance applications
  • Parts inspection
  • Metrology
  • High resolution document archiving
  • PCB inspection
  • Flat panel display inspection
  • Specifications
    Interface USB 3.0
    Sensor Model On Semi IBIS4
    Color Space Mono
    Iris Range  2208 x 3000 (6.6MP)
    Resolution (MP) 2208 x 3000 (6.6MP)
    Bit Depth 10-bit, 8-bit
    Pixel Pitch (µm) 3.5µm
    Optical Format 1"
    Sensor Diagnol 13.1 mm
    Mount  C
    Frame Rate (FPS at Full Resolution) 5.3
    Sensor Type CMOS
    Shutter Type Rolling
