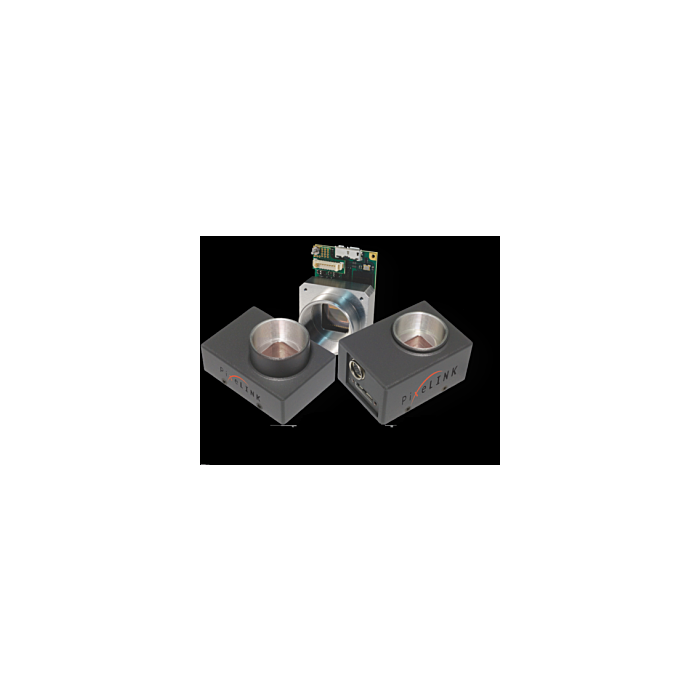

  • PixeLINK PL-D725 Series Image 1

PixeLINK PL-D725 Series 5.3 MP 2592x2048 Resolution (On Semi Vita 5000)

Quick Overview

The PL-D725 cameras are based on an ON Semi (vita 5000) CMOS global shutter sensor with a 1” optical format. The extensive builtin image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance.





PL-D725 Series Configuration Codes


C – Color     F – Firewire        BL – Board Level
AF - Autofocus Lens (in mm) M – Mono
G – GigE     T – Trigger
AFE - Edmund Optics Autofocus Lens (in mm)
NIR – Near Infrared                U – USB
CYL - Cylindrical case


 See Specs Below For All Configurations-







Overview

The PL-D725 camera provides low noise images for outstanding value in a broad range of industrial applications. The camera features a 5.3 megapixel (2592 x 2048) resolution imager.



Features:



  • Great image quality
  • Compact size
  • One common API for all cameras
  • Board level and enclosed models
  • Tethered sensor head option 6”/12” (*Board Level version only)
  • Auto & manual exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Saturation
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • Parts InspectionS
  • Strength Testing
  • Metrology
  • Biometrics
  • Medical Imaging
  • PCB & Flat Panel Display Inspection
  • Specifications



    Sensor ON Semiconductor Vita 5000
    Color Space Color/Mono
    Type CMOS Global Shutter
    Resolution 5.3 MP (2592 x 2048)
    Pixel PItch 4.8 µm x 4.8 µm
    Active Area 15.82 mm diagonal
    Peak QE 53 % at 550 nm
    FPN <1% of signal
    PRNU <2% of signal
    Dynamic Range 53 dB
    Color Data Format Bayer 8, Bayer 16 and YUV422
    Mono Data Formats Mono 8 and Mono 16
    Dimensions 32 x 48 x 11 (without lens mount)
    Weight 35.8 (without optics)
    Mount C-Mount and CS-Mount



    Configurations:

    Color

    Mono

    PL-D725CU
    PL-D725CU-BL
    PL-D725CU-T



    PL-D725MU
    PL-D725MU-BL
    PL-D225MU-T
