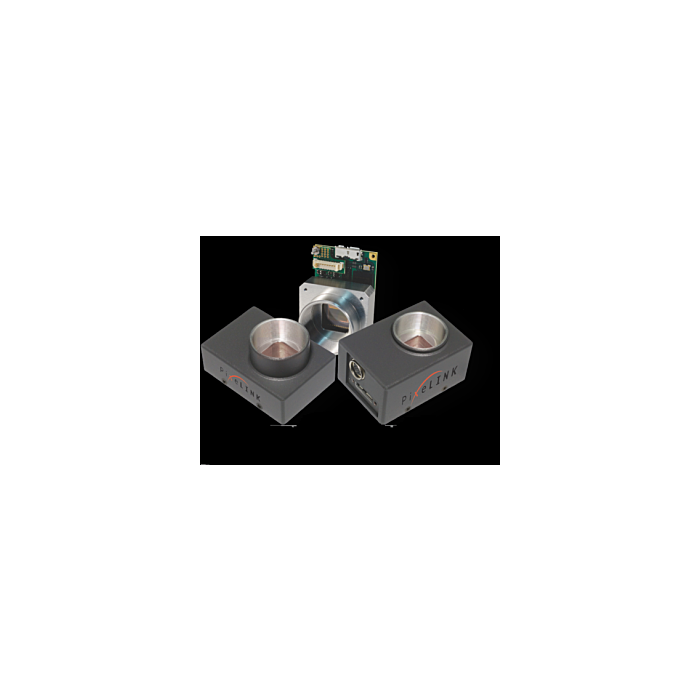

PixeLINK PL-D721 (PLD721) Series 1.3 MP 1280x1024 Resolution (On Semi Vita 1300/Python 1300)

PixeLINK’s USB3 Vision compliant camera lines are ideal for OEMs and organizations seeking reliable, high-quality industrial cameras with fast data transfer speeds. If you’re looking specifically for cameras with Autofocus. 28 Models available in the PL-D721 Series!

PL-D721 Series Configuration Codes

C – Color     F – Firewire        BL – Board Level
AF
-Autofocus Lens (in mm) M –Mono
G
– GigE     T – Trigger
AFE
- Edmund Optics Autofocus Lens (in mm)
NIR
– Near Infrared                U – USB
CYL
- Cylindrical case

 See Specs Below For All Configurations-





SKU
PixeLINK PL-D72 Series

These models of our latest color and monochrome CMOS cameras provide high resolution, low noise images, fast frame rates and outstanding value across a broad range of industrial applications.



Features:



  • USB 3.0
  • OnSemi Vita1300
  • Color or Monochrome
  • High-resolution
  • Low Noise Images
  • Fast Frame Rates
  •


    Applications:



  • PCB & Semiconductor Inspection
  • Pathology
  • Histology
  • Live Cell Imaging
  • Petrology
  • Academic and pharmaceutical research
  • Clinical medicine
  • Microbiology
  • Genetics
  • Metallurgy
  • Embryology
  •

    Sensor ON Semi Vita 1300
    Color Space Color/Mono
    Type CMOS Global Shutter
    Resolution 1.3 MP (1280 x 1024)
    Pixel PItch 4.8 µm x 4.8 µm
    FPN <1% of signal
    PRNU <2% of signal
    Dynamic Range 53 dB
    Color Data Format Bayer 8, Bayer 16 and YUV422
    Mono Data Formats Mono 8 and Mono 16
    Dimensions 32 x 48 x 11 (without lens mount)
    Weight 35.8 (without optics)
    Mount C-Mount and CS-Mount



    Configurations:

    Color

    Mono

    PL-D721CU
    PL-D721CU-BL
    PL-D721CU-T
    PL-D721CU-AF16
    PL-D721CU-AF25
    PL-D721CU-BL-AF16
    PL-D721CU-BL-AF25
    PL-D721CU-S-BL-AF2.6
    PL-D721CU-S-BL-AF7.5
    PL-D721CU-S-BL-AF9.6
    PL-D721CU-BL-AFE12
    PL-D721CU-BL-AFE16
    PL-D721CU-BL-AFE25
    PL-D721CU-BL-AFE35
    PL-D721PCU
    PL-D721PCU-BL
    PL-D721PCU-T



    PL-D721MU
    PL-D721MU-BL
    PL-D721MU-T
    PL-D721MU-AF16
    PL-D721MU-AF25
    PL-D721MU-BL-AF16
    PL-D721MU-BL-AF25
    PL-D721MU-S-BL-AF2.6
    PL-D721MU-S-BL-AF7.5
    PL-D721MU-S-BL-AF9.6
    PL-D721MU-BL-AFE12
    PL-D721MU-BL-AFE16
    PL-D721MU-BL-AFE25
    PL-D721MU-BL-AFE35
