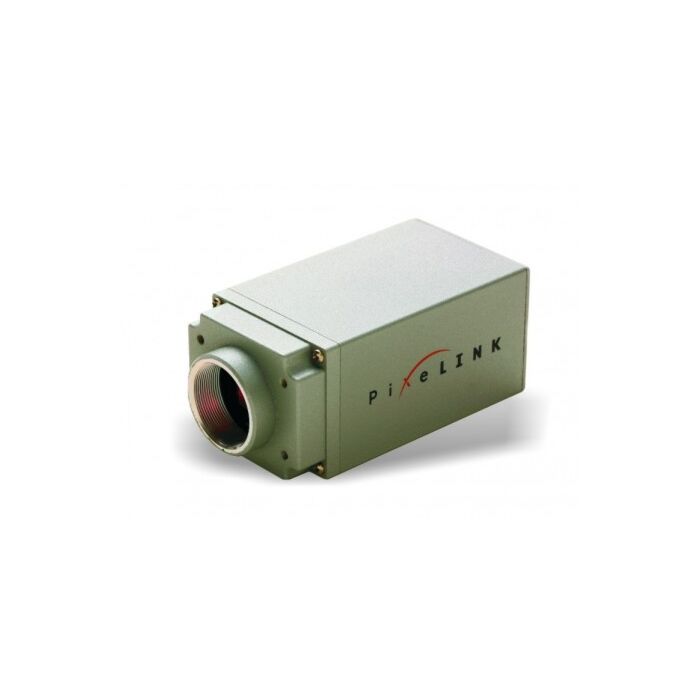

  • PixeLINK PL-B958 & 959 Series Image 1

PixeLINK PL-B958 & 959 Series 2.0MP 1600x12000 Resolution Machine Vision Cameras (Sony ICX274)

Quick Overview

These high performance 2.0 MP (1600 x 1200) resolution cameras are designed for a broad range of industrial imaging applications. The PLB959 monochrome camera and the PL-B958 color camera provide 15 frames per second in either 8-bit or 12-bit output modes.





PL-B958 & 959 Series Configuration Codes


C – Color     F – Firewire        BL – Board Level
AF
-Autofocus Lens (in mm) M –Mono
G
– GigE     T – Trigger
AFE
- Edmund Optics Autofocus Lens (in mm)
NIR
– Near Infrared                U – USB
CYL
- Cylindrical case


 See Specs Below For All Configurations-

Overview

The PL-B958 & 959 cameras are suitable for a broad range of applications.



Features:



  • Programmable LUT and FFC(Flat Field Correction)
  • Defect pixel correction
  • Bayer 8, Bayer 16  and YUV422 (color versions)
  • Auto exposure and auto white balance
  • Binning, Decimation and Averaging
  • Image Flip and Image Rotate
  • ROI (Region of Interest Readout)
  • Saturation, sharpness and Brightness (color versions)
  • Gain
  • Gamma
  • Color temperature
  • Frame Rate control
  •


    Applications:



  • Automated inspection
  • PCB and semiconductor inspection
  • Container inspection
  • Food, beverage and lumber inspection
  • Traffic inspection
  • Manufacturing quality control
  • Specifications



    Sensor Sony ICX274
    Color Space Color/Mono
    Type Inter Line Transfer (ILT)
    Resolution 1600(H) x 1200(V) Color & Mono
    Pixel PItch 4.4 µm x 4.4 µm
    FPN <0.5 %
    PRNU <2.5
    Dynamic Range Mono 47.5 dB - Color 48.2 dB
    Color Data Format Bayer 8, Bayer 16 and YUV422
    Mono Data Formats Mono 8 and Mono 16
    Dimensions 118.75 x 50 x 41 mm (straight) 110 x 50 x 41 mm (right angle)
    Weight 238 g
    Mount C & CS-Mount, 1/3” optical format



    Configurations:

    Color

    Mono

    PL-B958F
    PL-B958F-BL
    PL-B958F-R
    PL-B958G
    PL-B958G-BL
    PL-B958G-R
    PL-B958U
    PL-B958U-BL
    PL-B958U-R





    PL-B959F
    PL-B959F-BL
    PL-B959F-R
    PL-B959G
    PL-B959G-BL
    PL-B959G-R
    PL-B959U
    PL-B959U-BL
    PL-B959U-R
