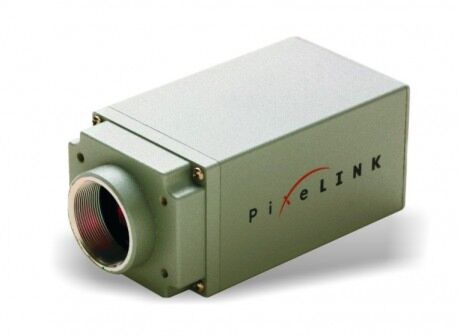

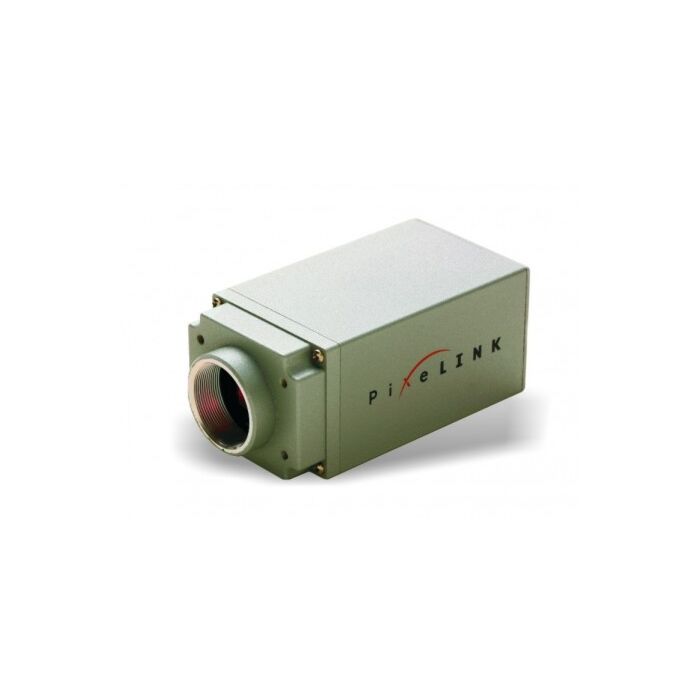

  • PixeLINK PL-B956 & 957 Series Image 1

PixeLINK PL-B956 & 957 Series 1.4MP 1392x1040 Resolution Machine Vision Cameras (Sony ICX285)

Quick Overview

The PLB957 monochrome camera and the PL-B956 color camera provide 15 frames per second in either 8-bit or 12-bit output modes.


PL-B956 & 957 Series Configuration Codes


C – Color     F – Firewire        BL – Board Level
AF
-Autofocus Lens (in mm) M –Mono
G
– GigE     T – Trigger
AFE
- Edmund Optics Autofocus Lens (in mm)
NIR
– Near Infrared                U – USB
CYL
- Cylindrical case


See Specs Beloew For Configuartions-

Overview

The PL-B956 & 957 cameras are suitable for a broad range of applications such as automated inspection.



Features:



  • Common API
  • High Speed Global Shutter
  • Low Noise
  • High Responsivity CCD Sensor
  • Flat Field Correction (FFC)
  • Defective Pixel Correction
  •



    Applications:



  • Automated Inspection
  • PCB and Semiconductor Inspection
  • Container Inspection
  • Food and Beverage Inspection
  • Manufacturing Quality Control
  • Specifications



    Sensor Sony ICX285
    Color Space Color/Mono
    Type Inter Line Transfer (ILT)
    Resolution 1392(H) x 1040(V) Color & Mono
    Pixel PItch 6.45 µm x 6.45 µm
    FPN <0.3 %
    PRNU <2.0 %
    Dynamic Range Mono 61.7 dB - Color 61.0 dB
    Color Data Format Bayer 8, Bayer 16 and YUV422
    Mono Data Formats Mono 8 and Mono 16
    Dimensions 118.75 x 50 x 41 mm (straight) 110 x 50 x 41 mm (right angle)
    Weight 238 g
    Mount C & CS-Mount, 1/3” optical format



    Configurations:

    Color

    Mono

    PL-B956F
    PL-B956F-BL
    PL-B956F-R
    PL-B956G
    PL-B956G-BL
    PL-B956G-R
    PL-B956U
    PL-B956U-BL
    PL-B956U-R



    PL-B957F
    PL-B957F-BL
    PL-B957F-R
    PL-B957G
    PL-B957G-BL
    PL-B957G-R
    PL-B957U
    PL-B957U-BL
    PL-B957U-R
