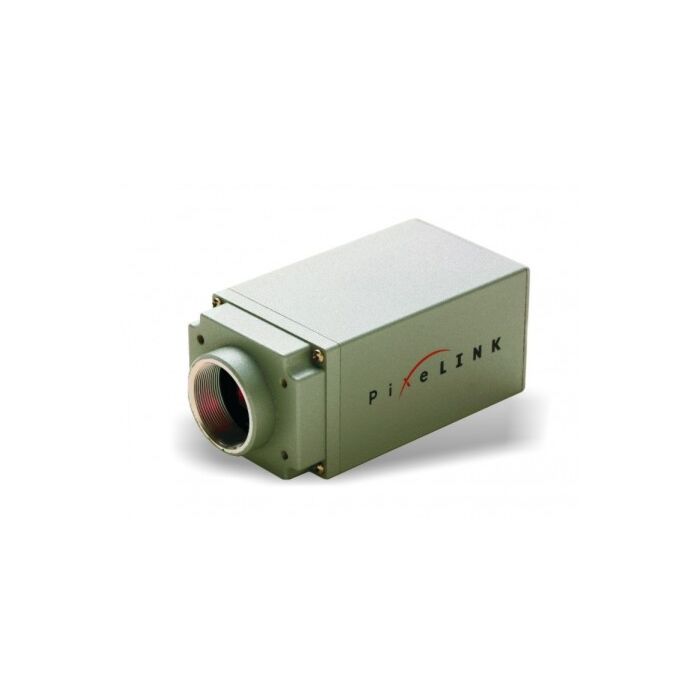

PixeLINK PL-B952 & PL-B953 (PLB952) (PLB953) Series .8MP 1024x768 Resolution Machine Vision Camera/Kits (Sony ICX204)
The PLB953 monochrome camera and the PL-B952 color camera provide 20 frames per second in either 8-bit or 12-bit output modes. The cameras are based on the Sony ICX204 progressive scan CCD sensor with a 1/3" optical format and a 4.65 um pixel pitch.
Color Space µScope Version Housing
C – Color KIT Essentials Version BL – Board Level
M – Mono SE Standard Version T – Trigger
NIR – Near Infrared PRO - Professional Version CYL - Cylindrical case
F - Firewire G - GigE U - USB 2.0
See Specs Below For All Configurations-
The PixeLINK PL-B952 & 953 cameras are suitable for a broad range of applications in the machine vision field.
Features:
Applications:
| Sensor | Sony ICX204 |
| Color Space | Color/Mono |
| Type | Inter Line Transfer (ILT) |
| Resolution | 1024(H) x 768(V) Color & Mono |
| Pixel Pitch | 4.65 µm x 4.65 µm |
| Active Area | 4.76 mm x 3.57 mm - 5.95 mm diagonal |
| FPN | <0.3 % |
| PRNU | Mono <2.25 % Color <2.5 |
| Color Data Formats | Bayer 8, Bayer 16 and YUV422 |
| Mono Data Formats | Raw, Mono 8 and Mono 16 |
| Exposure Range | 63.5 µs to 10 seconds free running 63.5 µs to 10 seconds triggered |
| Dimensions | 118.75 x 50 x 41 mm (straight) 110 x 50 x 41 mm (right angle)gle) |
Configurations:
Color Mono
PL-B952F PL-B953F
PL-B952F-BL PL-B953F-BL
PL-B952F-CS PL-B953F-R
PL-B925F-KIT PL-B953U
PL-B952F-R PL-B953U-BL
PL-B952U PL-B953U-R
PL-B952U-BL
PL-B952U-CS
PL-B952U-CSR
PL-B952U-R
